    High Torque Nema 23 Stepper Motor, 4A, 1.8 degree, 2 phase 4 wires

    Nema 23 stepper motor features 1.8 deg. step angle (200 steps/revolution), 2.5Nm holding torque and 4A phase current. Brand new and direct sale by manufacturer.
    SKU: ATO-STEP-982304
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 23 Stepper motor, 2.5Nm in 98mm, 1.8 degree, manufacturer direct sale.


    Electrical Specification Model ATO57STH98-4004
    Matched Driver Model ATODSP57(Click it to see more info)
    Step Angle 1.8°
    Holding Torque 2.5Nm
    Rated Current/phase 4.0A
    Phase Resistance 1.6Ω
    Inductance 6.8mH
    Rotor Inertia 800g-cm2
    Physical Specification Frame Size 57 x 57mm
    Length 98mm
    Shaft Diameter Φ6.35mm
    Shaft Length 19mm
    Motor Leads 4
    Weight 1.4kg
    Technical Parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max. (rated current, 2 phase on)
    Ambient Temperature -20℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.02Max. 450g
    Shaft Axial Play 0.08Max. 450g
    Quality Assurance Warranty Period 12 months
    Certificate CE, ROHs, ISO/SGS9001

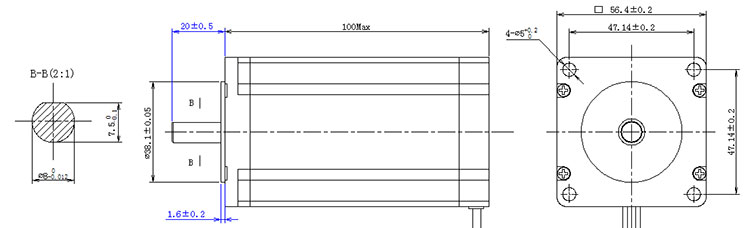

    Nema 23 Stepper Motor Dimensions: (Unit=mm)

    NEMA 23 hybrid stepper motor dimensionsL Max=98mm

    Nema 23 Stepper Motor Wiring Diagram

    NEMA 23 hybrid stepper motor wiring diagram

    Tips: What is the role of stepper motor in automatic door?

    A. Introduction of automatic door

    1. By configuring the intelligent control system for the automatic door, the running speed of the door leaf can be set randomly and semi-open state also can be set. It is convenient to adjust that the automatic door is always at best running state. Besides, with automatic correction function, even the running resistance causes by reasons such as heavy wind, the door can be opened and closed stably.
    2. With automatic reverse safety device, when it is at under unusual condition like colliding into the barrier or human body, the door leaf will automatically be inverted and exit, and advance at safe speed when approaching the resistance region to avoid the occurrence of clamping person and destroying the parts; enhance the safety of automatic door when running and extend the service life of automatic door and it is easy to open the door. When at power outage, the elderly and children can open and close it easily. The opening and closing strength is below 3.5kg, so it is convenient, safe and reliable.

    B. Role of stepper motor in automatic door

    Stepper motor features efficiency, power saving, low noise, high rotational velocity, large torque and no overheating upon continuous usage, so it greatly exceeds traditional AC servo motor. With stepper motor drive and T-shaped gear synchronous belt, the door rotates exceptionally stably from low velocity to high velocity. With high performance power input, not matter how large the voltage amplitude is, automatic voltage regulation can be realized. Besides, in case of transient load short circuit, there are overvoltage and overcurrent protection measures to effectively guarantee the rotational stability, durability and safety of automatic door.
