    0.5-2 HP Vertical Multistage Centrifugal Pump, 3 Phase, DN25 Outlet

    $772.78
    High quality and reasonable price vertical multistage centrifugal pump with DN25 outlet diameter for sale online. The impeller of vertical multistage pump has accurate profile, smooth flow channel and good balance. This vertical multistage centrifugal pump has 3 kinds of power: 0.5hp, 1.5hp and 2hp. Stainless steel vertical multistage pump suitable for transferring liquids of low viscosity, non-inflammable and not containing solid particles or fibers.
    *
    SKU: ATO-VMCP-25
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    A DN25 vertical multistage pump is a specialized mechanical device used to transport fluids, typically water or other liquids, by utilizing centrifugal force generated by a series of impellers.

    Features:

    • Excellent hydraulic model and advanced manufacturing technology, greatly improve the performance and service life of the pump.
    • Mechanical seals are made of using hard alloy and fluorine rubber, improving the reliability of operation and the temperature of the transport medium.
    • Compact structure, small size, lightweight, low noise, significant energy-saving effect, convenient maintenance.
    • The inlet and outlet of the pump are located on the same level and can be directly used in the pipeline.

    Specification:

    Model 25CDLF
    Material stainless steel
    Motor 100% copper wire, full power
    Moter Voltage 3 phase 380V-415V (single phase 220V for 2.2 kW or less); other voltages, contact us
    Frequency 50 Hz
    Impeller vortex impeller
    Outlet Diameter DN25
    Flow Rate 2m3/h
    Power 0.37 kW (0.5 HP); 1.1 kW (1.5 HP); 1.5 kW (2 HP)
    Head 15m; 67m; 98m
    Net Weight 20kg; 28kg; 35kg
    Waterproof Grade IP55
    Certification CE


    Structure:

    Vertical multistage centrifugal pump structure

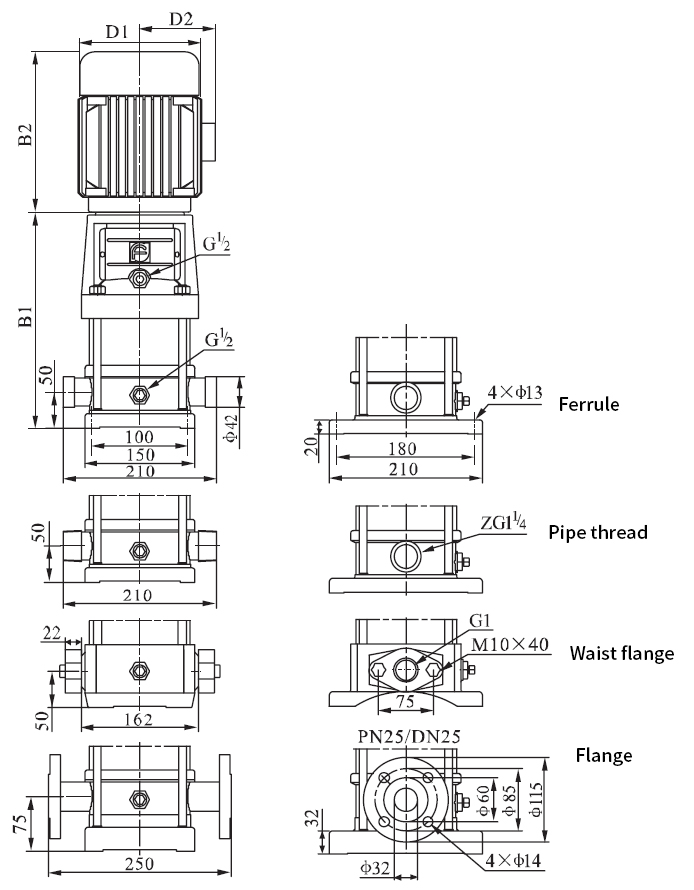

    Mounting Dimension (Unit: mm)

    Vertical multistage centrifugal pump dn25 dimension

    Model B1 B2 B1+B2 D1 D2
    CDLF2-2--25CDL(F)2-20 (0.37kW) 258 225 483 148 117
    CDLF2-9--25CDL(F)2-80 (1.1kW) 394 245 639 170 142
    CDLF2-13--25CDL(F)2-120 (1.5kW) 476 290 766 190 155

    Tips: What is Vertical Multistage Centrifugal Pump?

    A vertical multistage centrifugal pump is a specialized type of pump designed to efficiently transport fluid in various applications. It consists of multiple impellers stacked vertically within a single pump housing. Each impeller contains blades that rotate rapidly when driven by an electric motor or other power source. As the impellers spin, they impart kinetic energy to the fluid, forcing it to move through the pump's stages and increase in pressure. This design allows the pump to generate higher pressures than single-stage pumps, making it suitable for applications where high pressure is required, such as water supply systems, industrial processes, and HVAC systems. The vertical arrangement saves space compared to horizontal pumps, making them advantageous in installations where floor space is limited.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
