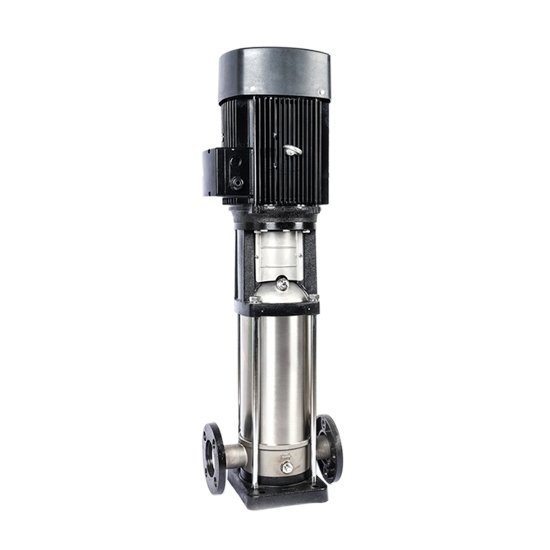

    DN32 Vertical Multistage Centrifugal Pump

    $1,019.21
    Centrifugal vertical multistage pump with DN32 outlet diameter and 380V voltage. Vertical multistage centrifugal pump price is affordable. The waterproof grade of vertical multistage water pump is IP55. This vertical multistage pump can meet the requirements of water supply, food and pharmaceutical industry.
    *
    SKU: ATO-VMCP-32
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Unlike single-stage centrifugal pumps, which have only one impeller, the multistage design incorporates multiple impellers stacked vertically within the pump casing. Each impeller is connected to a common shaft, and the pump is typically driven by an electric motor.

    Features:

    • Excellent hydraulic model and advanced manufacturing technology, greatly improve the performance and service life of the pump.
    • Mechanical seals made of using hard alloy and fluorine rubber, improving the reliability of operation and the temperature of the transport medium.
    • Compact structure, small size, lightweight, low noise, significant energy-saving effect, convenient maintenance.
    • The inlet and outlet of the pump are located on the same level and can be directly used in the pipeline.

    Specification:

    Model 32CDLF
    Material stainless steel
    Motor 100% copper wire, full power
    Moter Voltage 3 phase 380V-415V (single phase 220V for 2.2 kW or less); other voltages, contact us
    Frequency 50 Hz
    Impeller vortex impeller
    Power 1.5-3 kW
    Outlet Diameter DN32
    Capacity 4m³/h
    Head 64-113m
    Waterproof Grade IP55
    Certification CE


    Structure:

    Vertical multistage centrifugal pump structure

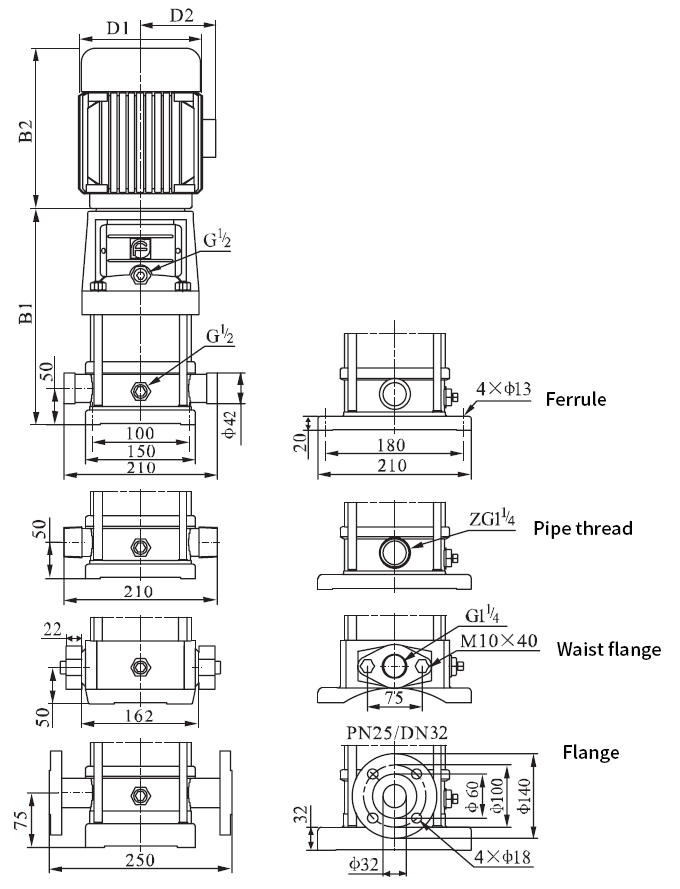

    Mounting Dimension (Unit: mm)

    Vertical multistage centrifugal pump dn32 dimension

    Model B1 B2 B1+B2 D1 D2
    CDLF4-8 458 290 748 190 155
    CDLF4-10 512 290 802 190 155
    CDLF4-12 566 290 856 190 155
    CDLF4-14 630 345 975 197 165

    Tips: How to Maintain Vertical Multistage Centrifugal Pump?

    • Regular Inspection. Check for leaks, unusual vibrations, and excessive noise during operation.
    • Lubrication. Ensure proper lubrication of bearings and mechanical seals as per manufacturer's recommendations.
    • Impeller Inspection. Inspect impellers for wear or damage, and replace if necessary to maintain efficiency.
    • Shaft Alignment. Regularly check and adjust shaft alignment to prevent premature wear and vibrations.
    • Seals and Gaskets. Monitor and replace seals and gaskets if they show signs of leakage or wear.
    • Motor Maintenance. Maintain the motor by checking connections, cleaning, and servicing according to manufacturer guidelines.
    • Cleaning. Regularly clean the pump and its components to prevent clogs and buildup.
    • Monitor Performance. Track pump performance using pressure and flow measurements to identify deviations from normal operation.
    • Vibration Analysis. Perform vibration analysis to detect any issues with the pump's internal components.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
