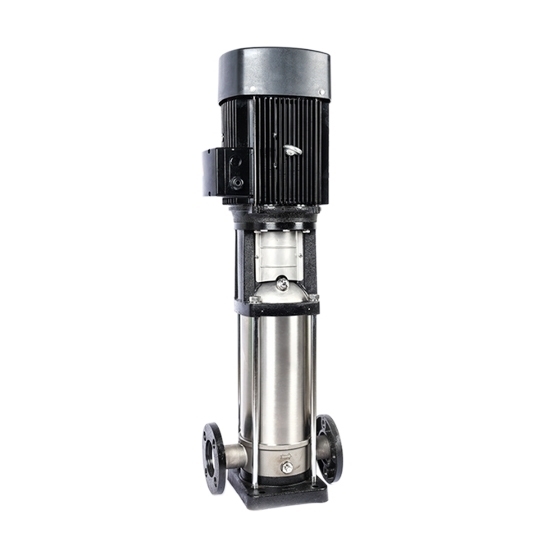

    DN80 Vertical Multistage Centrifugal Pump

    $2,569.52
    Vertical multistage pump with DN80 outlet diameter and 380V voltage for sale online. The waterproof grade of vertical multistage water pump is IP55. The compact design and vertical orientation of vertical multi stage centrifugal pump make them space-efficient and ideal for installations where horizontal space is limited.
    *
    SKU: ATO-VMCP-80
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The head of stainless steel vertical multistage pump between 30m and 193m. Centrifugal vertical multistage pump often used in booster system, industrial processes, wastewater treatment and desalination plant.

    Features:

    • Excellent hydraulic model and advanced manufacturing technology, greatly improve the performance and service life of the pump.
    • Mechanical seals made using hard alloy and fluorine rubber, improve the reliability of operation and the temperature of the transport medium.
    • Compact structure, small size, lightweight, low noise, significant energy-saving effect, convenient maintenance.
    • The inlet and outlet of the pump are located on the same level and can be directly used in the pipeline.

    Specification:

    Model 80CDLF
    Material stainless steel
    Motor 100% copper wire, full power
    Moter Voltage 3 phase 380V-415V (single phase 220V for 2.2 kW or less); other voltages, contact us
    Frequency 50 Hz
    Impeller vortex impeller
    Power 5.5-37 kW
    Outlet Diameter DN80
    Capacity 42m³/h
    Head 30-193m
    Waterproof Grade IP55
    Certification CE


    Structure:

    Vertical multistage centrifugal pump structure

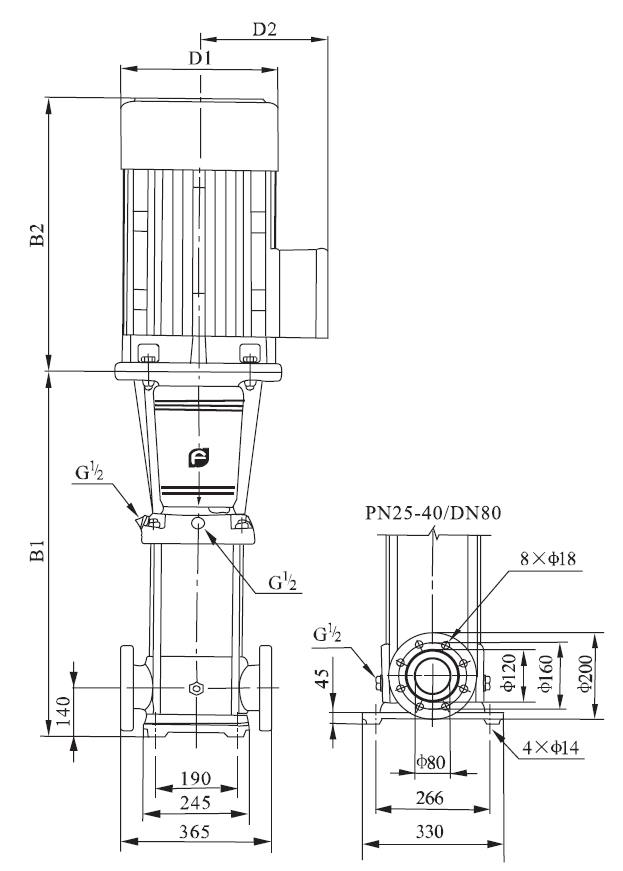

    Mounting Dimension (Unit: mm)

    Vertical multistage centrifugal pump dn80 dimension

    Model B1 B2 B1+B2 D1 D2
    CDLF42-20-2 641 390 1031 260 208
    CDLF42-40 906 500 1406 330 255
    CDLF42-100 1386 650 2036 400 310

    Tips: What are the Disadvantages of Vertical Multistage Centrifugal Pump?

    • Installation Complexity. Vertical multistage pumps can be more complex to install compared to single-stage pumps. They often require careful alignment and positioning due to their vertical orientation. This can result in increased installation time and potentially higher installation costs.
    • Maintenance Challenges. Maintenance of vertical multistage pumps can be more intricate due to their design. Accessing and servicing the multiple stages stacked on top of each other can be difficult, especially if the pump is installed in a deep well or confined space. This complexity might lead to longer maintenance downtime and increased maintenance costs.
    • Higher Initial Cost. Vertical multistage pumps tend to have a higher initial cost compared to single-stage pumps. The increased complexity of their construction, along with the need for additional components like bearings and sealing systems for each stage, can contribute to this higher cost.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
