    DN100 Vertical Multistage Centrifugal Pump

    $2,471.43
    Economical price of DN100 vertical multistage water pump for sale. 100% copper wire and vortex impeller of this vertical multistage centrifugal pump. Stainless steel multistage centrifugal pump is widely used in water supply, food and pharmaceutical industry.
    *
    SKU: ATO-VMCP-100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The inlet and outlet of stainless steel multistage centrifugal pump are located in the same straight line, which is suitable for pipeline connection and 360 degree movable flange is adopted. Each impeller is connected to a common shaft, and the pump is typically driven by an electric motor.

    Features:

    • Excellent hydraulic model and advanced manufacturing technology, greatly improve the performance and service life of the pump.
    • Mechanical seals made using hard alloy and fluorine rubber, improve the reliability of operation and the temperature of the transport medium.
    • Compact structure, small size, lightweight, low noise, significant energy-saving effect, convenient maintenance.
    • The inlet and outlet of the pump are located on the same level and can be directly used in the pipeline.

    Specification:

    Model 100CDLF
    Material stainless steel
    Motor 100% copper wire, full power
    Moter Voltage 3 phase 380V-415V (single phase 220V for 2.2 kW or less); other voltages, contact us
    Frequency 50 Hz
    Impeller vortex impeller
    Power 5.5-37 kW
    Outlet Diameter DN100
    Capacity 65m³/h
    Head 20-125m
    Waterproof Grade IP55
    Certification CE


    Structure:

    Vertical multistage centrifugal pump structure

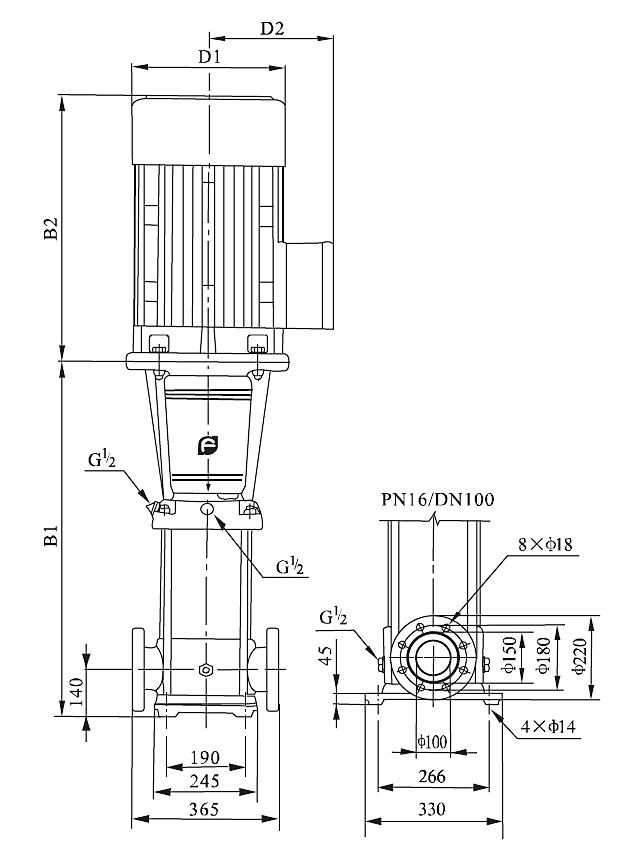

    Mounting Dimension (Unit: mm)

    Vertical multistage centrifugal pump dn100 dimension

    Model B1 B2 B1+B2 D1 D2
    CDLF64-10 561 390 951 260 208
    CDLF64-30 836 550 1386 330 255
    CDLF64-60 1084 650 1734 400 310

    Tips: What is a Vertical Centrifugal Pump Used For?

    • Chemical Processing. Vertical centrifugal pumps are used in various chemical processing industries for transferring corrosive, abrasive, or hazardous fluids. The vertical design makes it easier to ensure proper fluid drainage and prevent the buildup of corrosive materials.
    • Water and Wastewater Treatment. These pumps are commonly employed in water supply, sewage treatment, and wastewater handling systems. The vertical design allows for efficient pumping of fluids from deep wells, reservoirs, or underground systems.
    • Industrial Applications. Vertical centrifugal pumps find use in a wide range of industrial applications, including mining, power generation, pulp and paper, oil and gas, and more. Their versatility and ability to handle different fluids make them valuable tools in industrial processes.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
