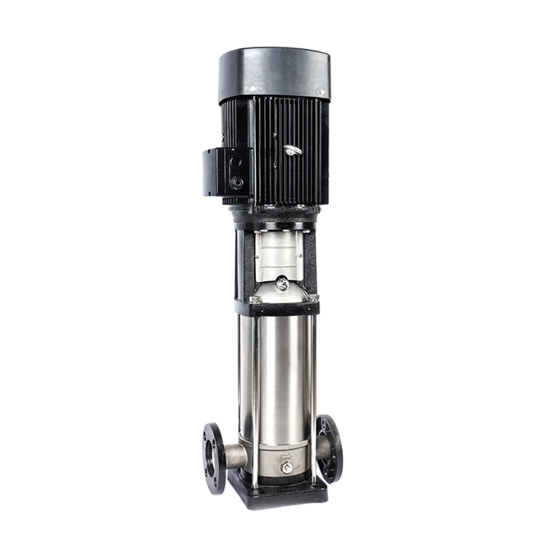

    DN125 Vertical Multistage Centrifugal Pump

    5 out of 5 based on 1 reviews | Write a review
    Vertical multistage pump price is reasonable and cost-effective. The inside impeller, casing and other main components are all stainless steel punched. The impeller of vertical multistage pump has accurate profile, smooth flow channel and good balance. Stainless steel multistage centrifugal pump often used in booster system, industrial processes, wastewater treatment and desalination plant.
    SKU: ATO-VMCP-125
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    A vertical multistage centrifugal water pump is a type of pump used to move fluids, typically water, from one location to another. It is designed to generate high-pressure output by utilizing multiple stages of impellers and diffusers stacked vertically within the pump casing.


    • Excellent hydraulic model and advanced manufacturing technology, greatly improve the performance and service life of the pump.
    • Mechanical seals made using hard alloy and fluorine rubber, improve the reliability of operation and the temperature of the transport medium.
    • Compact structure, small size, lightweight, low noise, significant energy-saving effect, convenient maintenance.
    • The inlet and outlet of the pump are located on the same level and can be directly used in the pipeline.


    Model 125CDLF
    Material stainless steel
    Motor 100% copper wire, full power
    Moter Voltage 3 phase 380V-415V (single phase 220V for 2.2 kW or less); other voltages, contact us
    Frequency 50 Hz
    Impeller vortex impeller
    Power 22-45 kW
    Outlet Diameter DN125
    Capacity 120m³/h
    Head 40-90m
    Waterproof Grade IP55
    Certification CE

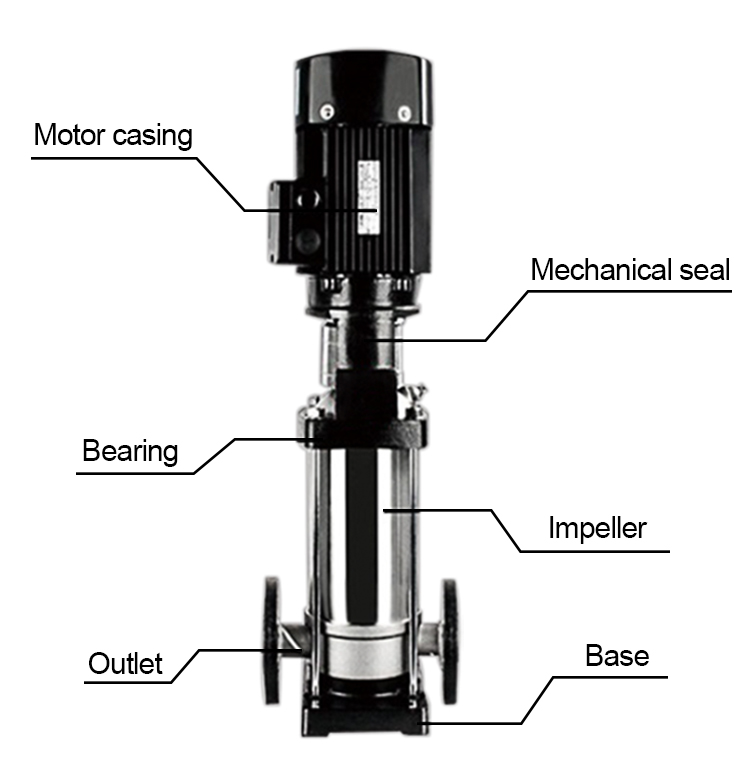

    Vertical multistage centrifugal pump structure

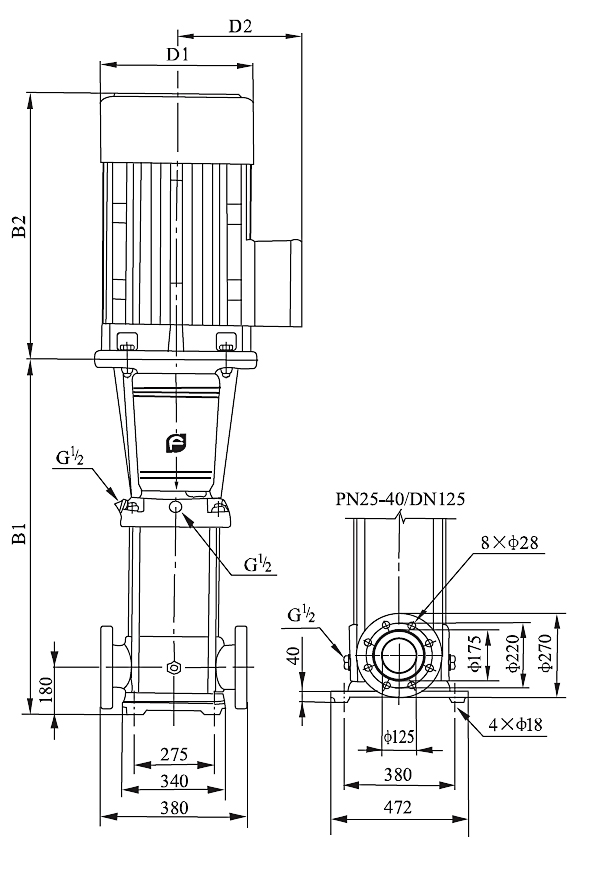

    Mounting Dimension (Unit: mm)

    Vertical multistage centrifugal pump dn125 dimension

    Model B1 B2 B1+B2 D1 D2
    CDLF120-20 1000 575 1575 360 285
    CDLF120-30 1160 650 1810 400 310
    CDLF120-50-2 1480 685 2165 460 340

    Tips: Vertical Multistage Centrifugal Pump Troubleshooting

    • Check Power Supply. Ensure that the pump is receiving the correct power supply voltage and frequency. Check for blown fuses, tripped circuit breakers, or other electrical issues.
    • Check Motor Operation. Verify that the motor is running properly and not overheating. Check for any unusual noises, vibrations, or excessive heat from the motor.
    • Inspect Pressure Gauges. Check the pressure gauges on the pump to ensure that they are functioning correctly. Compare the readings with the desired pressure levels.
    • Check Suction and Discharge Lines. Make sure that the suction and discharge lines are free from blockages or obstructions. Check for leaks, cracks, or damage in the piping system.
    • Inspect Impellers and Diffusers. Open the pump casing and inspect the impellers and diffusers for wear, damage, or clogs. Clean or replace any components that are worn out or obstructed.
