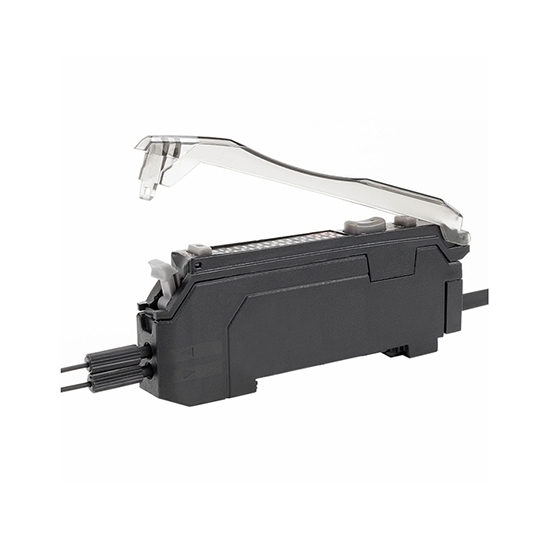

Dual Digital Fiber Optic Amplifier, NPN/ PNP

Choose ATO shop dual digital fiber optic amplifier to enjoy high sensitivity and high efficiency detection experience! Supports diffuse reflection and convection detection, sensing range of 10-30cm, switching frequency up to 1000Hz. 12-24V DC power supply, low power consumption design, support up to 100mA load. With short-circuit and overload protection, IP65 protection level to ensure durability.

Specification

Feature

• Area Setting: You can set it to sense only at a certain position and identify it by color, but not at other positions.
• Powerful Background Elimination: Eliminate the background of the sensing object, even the mirror can be eliminated.
• Strong Anti-interference Mode: It can make 4 products next to each other work at the same time without interfering with each other.
• Delayed Output Detection: Dual digital display amplifier supports delayed output detection, which can be applied to special application scenarios.
• Note: This product can only be used with fiber optic cable, fiber optic sensor needs to be purchased separately, please contact us for details.

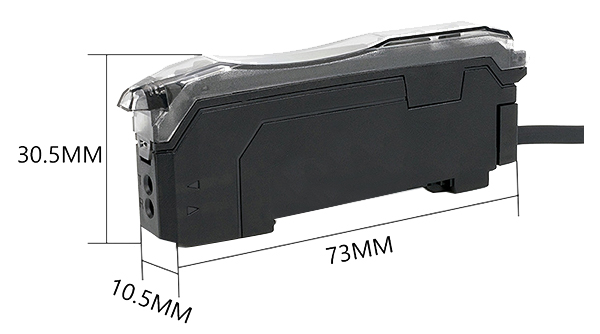

Dimensional Drawing (unit: mm)

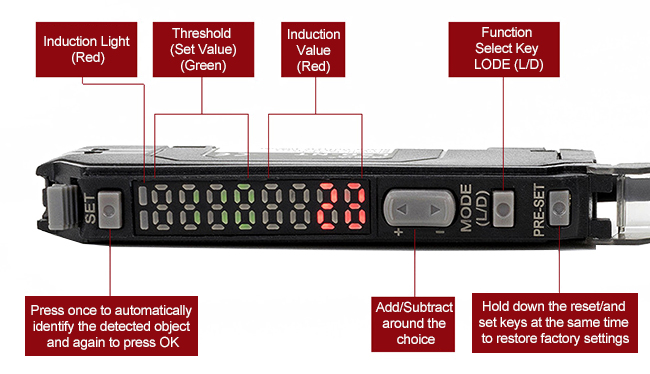

Details

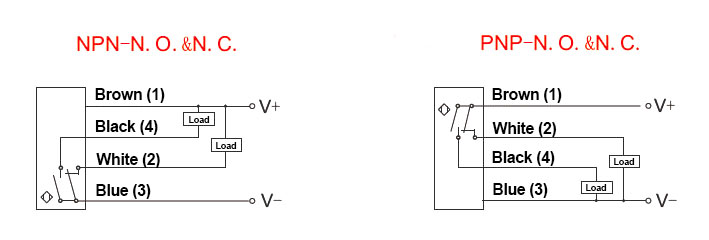

Wiring Drawing

Applications

Tips: What is dual digital fiber optic amplifier?

Dual digital fiber optic amplifier is a device for detecting and amplifying optical signals, which is widely used in the field of industrial automation and detection. Its main function is to detect the presence or position of a target object through a fiber optic sensor and amplify the weak light signal into a stable electrical signal. Dual digital amplifiers have an independent dual-channel design that can process two fiber optic signals simultaneously, providing higher detection efficiency and flexibility. Common application scenarios include precision manufacturing, package inspection, and position control applications.
