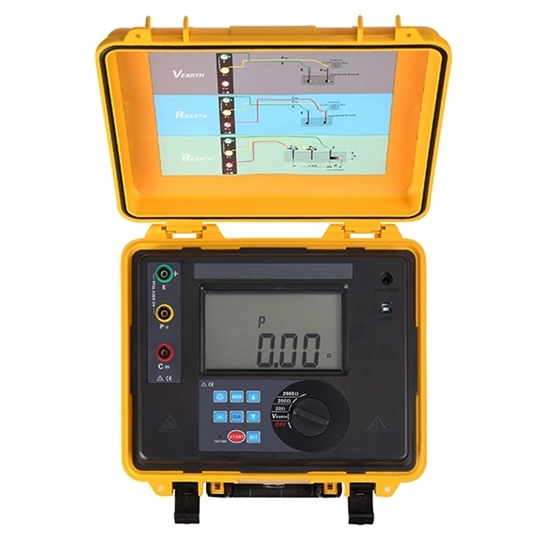

Digital Earth Resistance Tester, 0.010Ω to 2000Ω

$596.41

The digital earth resistance tester is widely used in measuring the ground resistance of electric power, telecommunications, meteorology, construction, lightning protection and industrial electrical equipment, etc. Factory ground resistance tester with a 0.010-2000 ohm, provided with a waterproof protection box, alarm value setting and alarm indication, historical data reading, consulting, saving, reporting and printing functions.

SKU: ATO-ERT-2000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High precision earth resistance tester with a 0.010Ω~2000Ω range, uses the 3-wire or 2-wire method to measure ground resistance, protected by a waterproof case, especially suitable for use in outdoor construction sites. Digital ground resistance tester can store 400 sets of data at the same time and feature alarm value setting and alarm indication and historical data reading, consulting, saving, reporting, and printing functions are available.

Features

Digital earth resistance tester is available with a 0.010Ω~2000Ω measure range and a waterproof case.
Earth testing meter is equipped with a large LCD display of the host machine with a white backlight and bar graph indication that can be seen clearly. Alarm function, overload protection function, auto shutdown and data storage function.
High precision ground resistance tester with the unique function of wire resistance verification, anti-interference capability and environmental adaptability, more accurate for on-site low grounding resistance measurement.
Earth ground tester has a precision 3-wire and simple 2-wire method to measure earth resistance, earth voltage and low resistance.
Package with waterproof protection box, waterproof, crash-proof, anti-drop and durable, and large-capacity rechargeable lithium battery pack, especially suitable for use at outdoor construction sites.

Specifications

Model	ATO-ERT-3000C
Earth Resistance	Accuracy: ±2%rdgt3dgt Range: 0.01Q-2000Q Resolution: 0.01Q
Earth Voltage	Range: 0~600V AC Resolution: 1V Accuracy: ±2%rdg±3dgt
Power Supply	DC 7.4V 2600mAh rechargeable lithium battery, battery charge full about 8.4V
Tester Dimension	280mm(L)×260mm(W)×160mm(H)
Weight	4520g (with the package)
Measurement Method	Earth resistance rated current change-pole method, measure current 20mA Max; Voltage to earth average value recitation
Test Frequency	128Hz/ 111Hz /105Hz /94Hz (AFC)
Short Circuit Test Current	AC 20mA max
Measurement Time	Voltage to earth: 3 times/second; Earth resistance: 15 seconds/time
Data Storage	400 groups, flash "FULL" symbol indicates storage is full
Data Hold	Data hold function: "HOLD" symbol display
Data Access	Data access function: "READ" symbol display
Overflow Display	Exceed measurement range overflow function: "OL" symbol display
Auxiliary Ground Rod	2 PCS: Φ10mm×250mm
lest VWres	Red 15m, yellow 10m, green 5m, red 1.6m, black 1.6m (total 5 pcs wires)
USB Interface	With a USB interface, and software monitoring, stored data can be uploaded to a computer, saved and printed; data transmission cable length:1.5m
Wire Resistance Verification	Avoid errors caused by the test line not being fully inserted into the instrument interface or poor contact or the user replacing the lengthened test line, ensure grounding resistance measurement is more accurate
Alarm Function	Measure value exceeds alarm setting value, will "Toot-toot-toot" alarm hint
Auto Shutdown	10 minutes after power is on, it will automatically shut down without any operation
Battery Voltage	While the battery voltage decreases to around 7.2V±0.1V, it will display the low battery voltage symbol, and remind you to replace the battery
Overload Protection	Earth resistance: between each interface of E-P, E-C, AC 280V/3 seconds
Protection Level	IP65（close the case status）
Working Current	Backlight: 25mA Max; Standby: 25mA Max (Backlight close); Measurement: 70mAMax (Backlight close)
Accessories	Tester: 1PCS; Ground rod: 2PCS; Testing wire: 3PCS; Simple test wire: 2PCS; USB Communication cable: 1PCS; Tester bag: 1PC; Special charger: 1PCS

Details

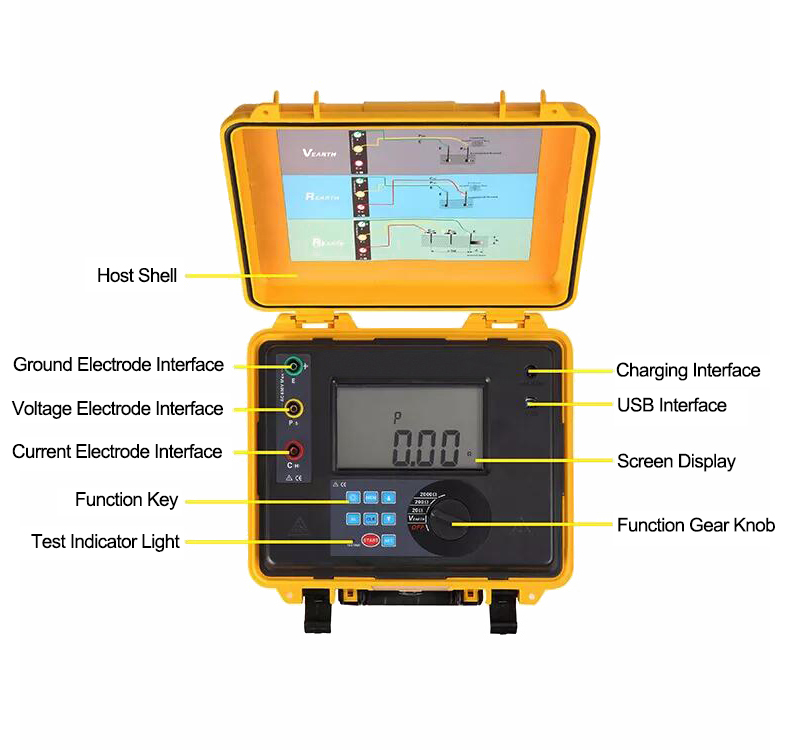

Digital earth resistance tester details

Applications

ATO provides earth resistance testers with a measurement range of 0.00Ω-300kΩ, which are widely used in ground resistance measurement and loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring the grounding system with a loop, the ground resistance tester does not need auxiliary electrodes and does not need to disconnect the grounding wire, which is safer and faster.

Digital earth resistance tester applications Tips: Test methods of ground resistance tester

Common testing methods for ground resistance testers include the two-wire method, three-wire method, four-wire method, single-clamp method and double-clamp method, each of which has its own characteristics. In the actual measurement, the user should try to choose the appropriate test method to make the test result accurate.
