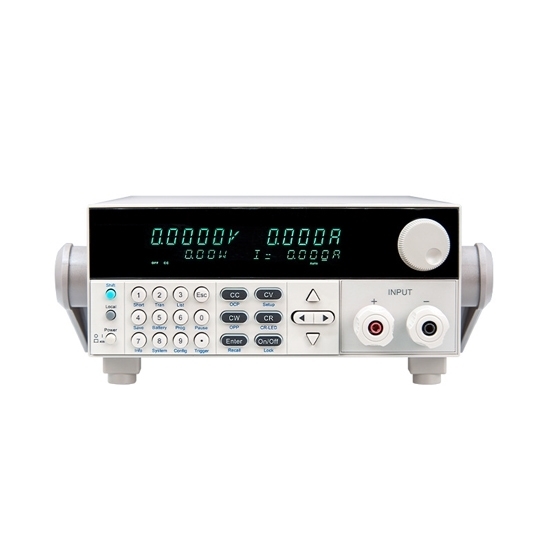

Programmable DC Electronic Load, 120W/120V/20A

5 out of 5 based on 1 reviews | Write a review
$646.92
Cheap DC electronic load comes with input power 120W, input voltage 120V, and input current 20A. It is a programmable electronic load that provides battery tests, automatic tests, over-power tests, over-current tests, short circuits tests and current monitoring functions.
*
SKU: ATO-EL-120W
30-day Returns
Free Shipping
Delivery date: 6-12 days

Low cost 120W/120V/20A programmable DC electronic load is an electronic load tester primarily in the testing and validation of power sources, power supplies, batteries, and various electronic components.

Specifications

Model ATO-IT8510
Rating (0~40℃) Input Voltage 0~120V
Input Current 0~20A
Input Power 120W
Min. Operating Voltage 0.2V/3A 1.3V/20A
Constant Voltage Mode Range 0~18V 0~120V
Resolution 1mV 10mV
Accuracy ±(0.05%+0.025%FS)
Constant Current Mode Range 0~3A 0~20A
Resolution 0.1mA 1mA
Accuracy ±(0.05%+0.1%FS) ±(0.1%+0.1%FS)
Constant Resistance Mode*1 Range <100Ω <4kΩ
Resolution 0.01Ω
Accuracy ±(1%+0.3%FS) ±(1%+0.8%FS)
Constant Power Mode*2 Range 0~100W 100~120W
Resolution 1mW 10mW
Accuracy ±(0.5%+0.2%FS)
Measuring Range
Voltage Readback Value Range 0~18V 0~120V
Resolution 1mV 10mV
Accuracy ±(0.025%+0.025%FS) ±(0.025%+0.025%FS)
Current Readback Value Range 0~3A 0~20A
Resolution 0.1mA 1mA
Accuracy ±(0.1%+0.1%FS) ±(0.2%+0.15%FS)
Power Readback Value Range 0~100W 100~120W
Resolution 1mW 10mW
Accuracy ±(0.5%+0.2%FS)
Protection Range
Over Power Protection ≈130W
Over Current Protection ≈3.3A ≈22A
Overvoltage Protection ≈130V
Over Temperature Protection ≈85℃
Specifications
Short Circuit Current (CC) ≈3.3A/3A ≈22A/20A
Voltage (CV) 0V
Resistance (CR) ≈65mΩ
Input Terminal Impedance ≈300kΩ
Battery Test Capacity Max 999AH
Dynamic Mode Frequency 0.1Hz~1kHz
Dimensions 214.5x88.2x354.6mm
Weight 5kg


Features

  • The panel of the 20A 120V programmable DC electronic load can be edited, and the rotary coding switch makes it easier to operate. Built-in USB/RS232 interface, memory capacity of 100 groups, which can be stored in the instrument.
  • This 120W electronic load tester has a battery test function, automatic test function, over-power test function, over-current test function, short-circuit function (CC/CV/CR/CW working mode), and current monitoring function.
  • Its voltage measurement resolution can reach up to 0.1mV/0.1mA, and its sense remote measurement function compensates for line voltage drops to make long-distance testing more accurate.

Details

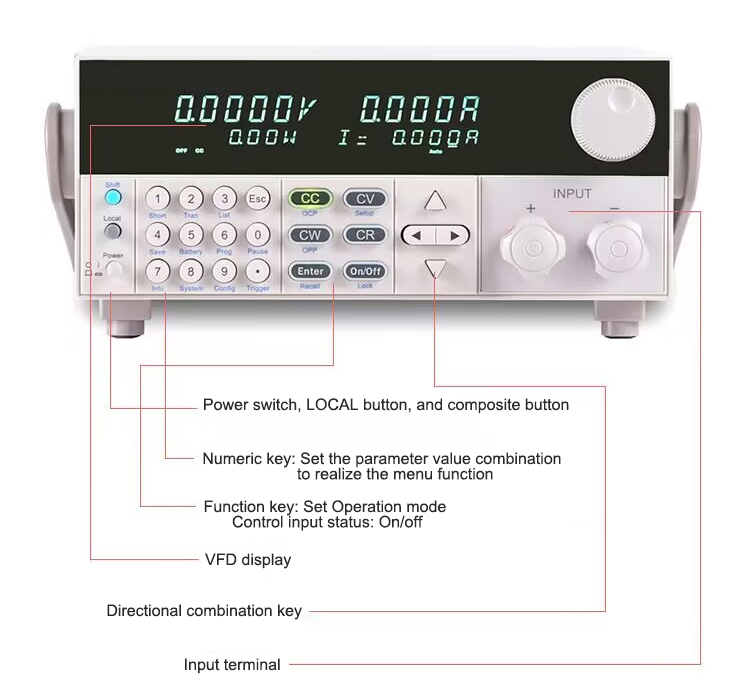

Electronic load details

Applications

ATO 120W programmable DC electronic load can be used for testing batteries, power supplies, LED lighting, DC-DC converters, voltage regulators, solar panels, automotive electronics, aerospace and defense electronics, and educational training.

Electronic load applications

Tips: What is a DC electronic load?

A DC electronic load is a test instrument used to apply a controllable and adjustable load to an electrical circuit or device powered by a direct current (DC) source. It allows engineers, researchers, and technicians to simulate real-world operating conditions and assess the performance of various electronic components and systems, such as power supplies, batteries, voltage regulators, and renewable energy sources, by drawing a specific current and voltage from the device under test.

DC electronic loads typically offer precise control over current, voltage, power, and resistance, making them valuable tools for testing and characterizing electronic devices, ensuring their efficiency, reliability, and compliance with specifications, and aiding in the development and troubleshooting of electrical systems.
