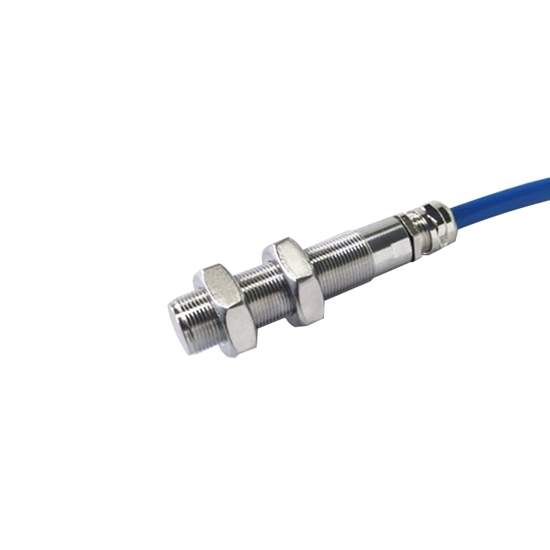

    Explosion Proof Speed Sensor, M16

    5 out of 5 based on 1 reviews | Write a review
    $200.13
    Factory explosion-proof speed sensor, M16, adopts a special explosion-proof cable to meet the explosion-proof requirements of customers in special environments and working conditions. Output signal level pulse/NPN/PNP can be chosen. It is a non-contact measurement sensor with a wide air gap, no wear, and easy installation, more suitable for harsh applications.
    *
    SKU: ATO-EPSS-M16
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    Non-contact explosion-proof speed sensors can measure the speed of gears or rotating objects. The shell of the speed sensor is made of durable integrated stainless steel or other explosion-proof materials. Single channel, M16 threaded installation, sensor specifications and sizes can be customized according to customer needs.

    Specifications

    Electrical Parameters
    Model ATO-TSS
    Type Explosion-Proof Speed Sensor
    Shell Shape Threaded Cylinder
    Shell Specifications M16
    Voltage DC 4V~30V (Typical Value: 24V)
    Working Frequency 0Hz~20kHz
    Measurement Method Non-Contact Measurement
    Sensing Range Conventional: 0.5mm~3mm, Special Type: 0.5mm~7mm, Measuring Magnet: 0.5mm~30m
    Number of Output Channels Single Channel
    Output Signal Type Level Pulse, NPN, PNP
    Mounting Type Explosion Proof Cable Direct Outlet
    Output Waveform Rectangular Wave
    Output Amplitude High Level≥Power Supply -1V, Low Level ≤0.5V
    No-Load Power Consumption Current ≤20mA
    Insulation Resistance ≥50MΩ@500V DC
    Dielectric Strength AC500V/ 50Hz/60s
    Electromagnetic Compatibility. Comply with CE Standard EMC Requirements
    Protective Function Power Supply Polarity Protection, Output Short Circuit Protection
    Explosion-Proof Performance Intrinsically Safe Explosion-Proof
    Explosion-Proof Grade Ex(ia) II CT6 Ga
    Mechanical Parameters
    Measured Object There are protrusions or grooves on the gear or the object to be measured.
    Material Under Test Magnetic Mild Steel or Magnet
    Sensor Housing Material Integrated Stainless Steel Shell
    Tensile Strength The cable exerts a tension of 30N@60min, and there is no displacement with the shell.
    Environmental Parameters
    Operating Temperature -40℃~+135℃
    Storage and Transport Temperature -40℃~+150℃
    Relative Humidity ≤90%
    High and Low Temperature Performance High and Low Temperature Cycle Test For 10 Cycles, (Low Temperature: -40 Degrees; High Temperature: 150 Degrees), Each Placed For 30 mins, Cycle Alternately
    Vibration Resistance X, Y, Z Direction, 30g/Hz, 5Hz~1200Hz, Random Vibration
    Impact Resistance 30g
    Degree of Protection IP67


    Features

    • It has passed the explosion-proof laboratory product certification.
    • Reliable explosion-proof speed sensor measures the speed of gears or rotating objects through non-contact, simple, stable, and maintenance-free.
    • Equipped with integrated stainless steel and explosion-proof connecting cable, the high-quality speed sensor is more suitable for harsh applications and explosion-proof requirements.
    • Threaded installation, specifications and sizes can be customized according to customer needs. If you have a need, please get in touch with us.

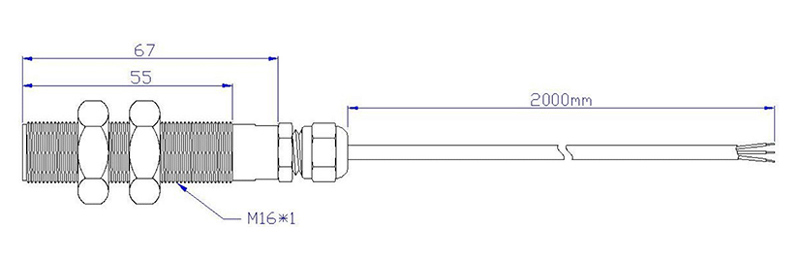

    Dimension (Unit: mm)

    Explosion-proof speed sensor dimension

    *Note for Electrical Connection:

    • The direct outlet of the speed sensor is equipped with a 1~2m explosion-proof cable as standard.
    • Contact us for customizing the length or other mounting types (connector or cable direct outlet + connector).
    • 3 Wires: Brown/Red - Vcc+, Black/White - Signal, Blue - Gnd

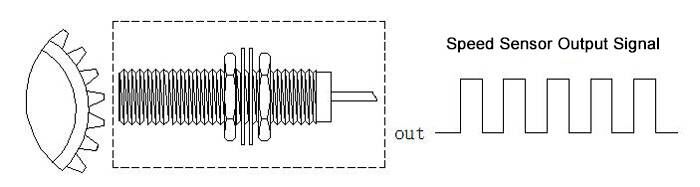

    Output Signal

    Explosion-proof speed sensor output signal

    Applications

    Explosion-proof speed sensor applications

    Tips: What is a non-contact speed sensor?

    A non-contact speed sensor, as the name suggests, is a type of sensor that can measure speed without physical contact with the moving object. This is often desirable in applications where contact-based sensors may introduce friction, wear, or other complications. Non-contact speed sensors can utilize various technologies such as optical sensors, magnetic sensors, or ultrasonic sensors to measure speed without direct contact with the object.
