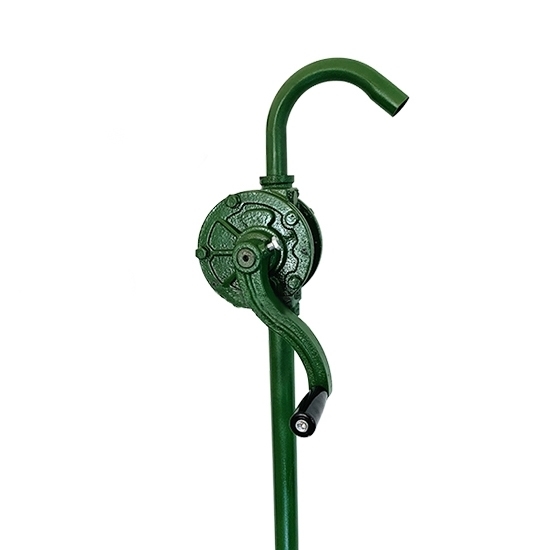

    Hand Rotary Drum Pump, 40 LPM

    $241.69
    Buy hand operated rotary drum pump at an economical price, with a 32mm (1-1/4 inch) oil inlet and 25mm (1 inch) oil outlet, 40 LPM flow rate. This manual rotary barrel pump is made from cast iron, which is widely used for pumping diesel, aviation Kerosene, gasoline, and alcohol.
    SKU: ATO-RDP-40LPM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hand rotary drum pump is a manually operated oil pump designed to transfer liquids from a drum or barrel. It offers a cost-effective and efficient solution for transferring fluids safely and with minimal effort.

    Specification

    Model ATO-YBSY-100
    Pump Housing Casting
    Part Material Rotor Casting
    Slide Composite Engineering Plastic
    Main Shaft Carbon Steel
    Seal Butyl Rubber
    Speed 70~100 r/min
    Displacement per Revolution 0.5 L/min
    Maximum Flow 40 L/min
    Recommended Oil Pump Medium (Oil) Diesel, Aviation Kerosene, Gasoline, Alcohol
    Max. Ambient Operating Temperature 122℉ (50℃)
    Min. Ambient Operating Temperature -40℉ (-40℃)
    Maximum Vacuum Drying 0.02 mPa
    Oil Inlet Pipe Length 1m
    Protection Level IP55
    Oil Inlet Diameter 32mm (1-1/4 inch)
    Oil Outlet Diameter 25mm (1 inch)
    Continuous Working Time Continuous Use
    Dimension 1.3m*0. 14m*0. 11m
    Weight 7.2kg

    Note: The rotary drum oil pump must undergo strict temperature and shock resistance tests and is not restricted by the operating location.

    Detail

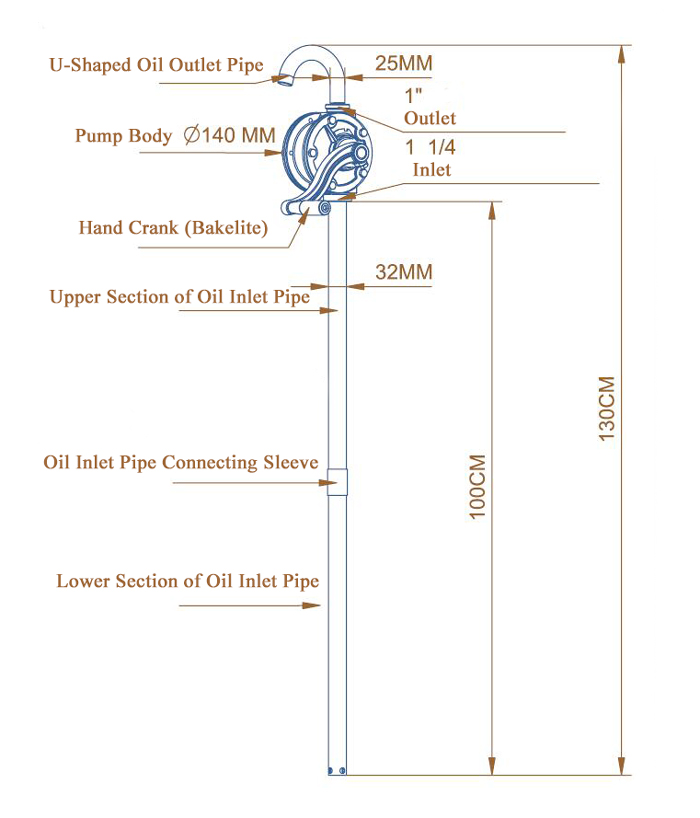

    Hand rotary drum/ barrel pump detail

    Tips: Difference between hand rotary drum pump and semi rotary hand pump

    A hand rotary drum pump and a semi-rotary hand pump differ in design and application. A hand rotary barrel pump uses a rotating handle to drive an internal drum, creating a continuous flow as the handle is turned. This type of pump is ideal for transferring light to medium-viscosity fluids from barrels and drums, offering a steady and uninterrupted flow.

    In contrast, a semi-rotary hand pump operates with a reciprocating (back-and-forth) motion of the handle. Each half-turn of the handle generates suction and pressure, moving fluid through the pump in an intermittent flow. This pump is versatile, and suitable for a variety of fluids including water, oils, and certain chemicals, providing controlled, cyclical fluid transfer.

    In summary, a manual rotary drum pump is best for applications requiring continuous flow, while a semi-rotary hand pump excels in tasks needing controlled, intermittent transfer.
