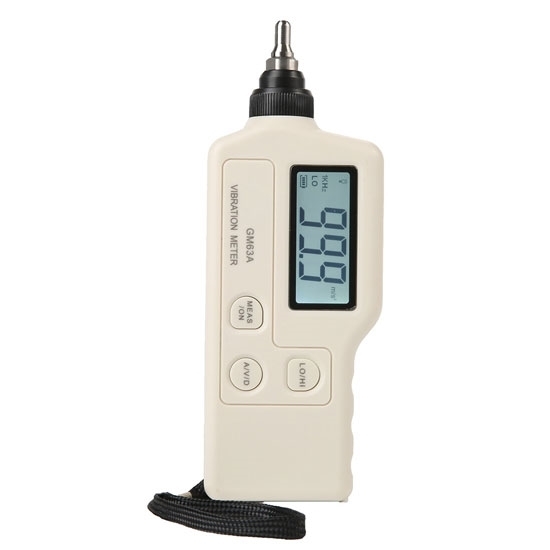

    Handheld Vibration Meter

    $186.35
    This handheld vibration test meter is easy to use, compact design with acceleration, velocity and displacement measurement and selectable vibration frequency, to help you check the vibration of motors, machineries, bearings etc. Low cost and high accuracy.
    SKU: ATO-GM63A
    Delivery date: 6-12 days

    Applications
    The vibration meter is suitable for routine testing the vibration of machinery and equipment, especially the vibration of rotating and reciprocating machinery. It can measure acceleration, velocity and displacement, which is widely used in mechanical manufacturing, electric metallurgy, general aviation etc.

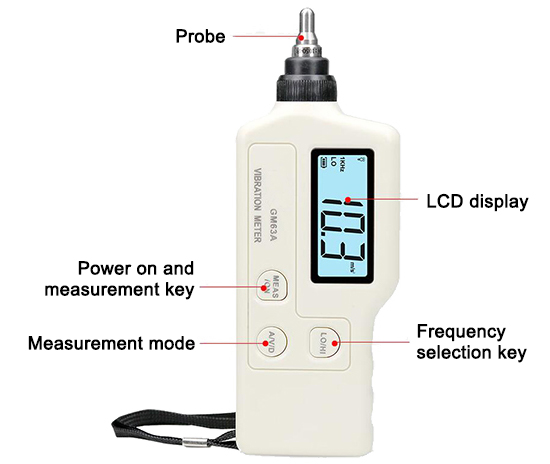

    Features

    • Simple operation, compact structure and portable for measurement
    • Visually display the measurement result
    • Acceleration, velocity and displacement measurement
    • Different vibration frequency
    • High sensitivity probe for accurate measurement
    • Long and short probes provided, suitable for different situations of measurement
    • Multi-functions, such as low power indication, auto power off, LCD backlight

    Specification

    Model ATO-GM63A
    Measuring Range Acceleration 0.1~199.9m/s² (Peak)
    Velocity 0.1~199.9mm/s (RMS)
    Displacement 0.001~1.999 mm (Peak-Peak)
    Accuracy ±5% ±2 digits
    Measuring Frequency Acceleration 10Hz~1KHz (LO); 1KHz~15KHz (HI)
    Velocity 10Hz~1KHz (LO)
    Displacement 10Hz~1KHz (LO)
    LCD Display 3 1/2 digit display
    Vibration Pickup Piezoelectric ceramic accelerometer (Shear-type)
    Signal Output AC output 2V peak (display full scale);
    10KΩ or high impedance headphones can be connected
    Power Supply Alkaline battery
    Functions

    Low battery indication 6.9V±0.2V
    Auto power off Automatically shutdown with no operation for 60 seconds
    LCD backlight display After 7 secends
    Accessories Equipped with two probes (S and L) to meet different measurement requirements
    Operating Temperature 0~40℃
    Humidity 30~90%RH
    Weight 182g
    Dimension 67x30x183mm

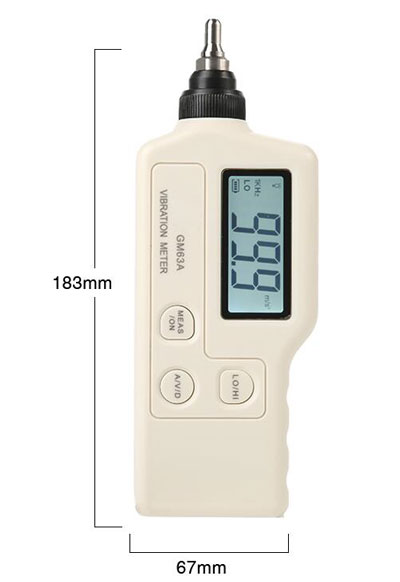

    Dimension

     handheld vibration meter dimension

    Tips: What is handheld vibration test meter?
    Handheld vibration meters (including two types with external shear-type piezoelectric accelerometer or built-in accelerometer), have four kinds of vibration measurement parameters of acceleration, velocity, displacement, and high-frequency acceleration for your choice, with multi-functions like measurement data hold, automatic shutdown and so on.
    Handheld vibration meters not only can test the acceleration, velocity and displacement of vibration, but also check faults of rotating machinery and reciprocating machinery. What’s more, it can diagnose faults of bearings and gears of rotating machinery by measuring the high-frequency acceleration of vibration. The handheld vibrometer is used to test the intensity of rotating machinery, so the instrument is widely used in machinery manufacturing, power, chemical and other fields.
