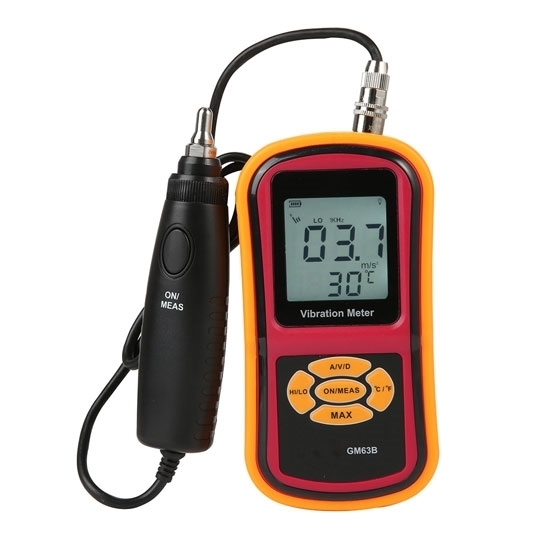

    Portable Vibration Meter

    $303.97
    This portable digital vibration meter is widely used to test the vibration of industrial machines and equipment in a reliable and accurate way, with multi-functions like holding the max. value, optional temperature unit, directly displaying the result and condition, thus assist you to learn about the equipment condition easily.
    SKU: ATO-GM63B
    Delivery date: 6-12 days

    Applications
    The vibration meter is suitable for routine testing the vibration of machinery and equipment, especially the vibration of rotating and reciprocating machinery. It can measure acceleration, velocity and displacement, which is widely used in mechanical manufacturing, electric metallurgy, general aviation etc.

    Features

    • LCD display the measurement result and condition directly
    • Acceleration, velocity and displacement can be measured
    • Optional vibration frequency
    • Use high sensitivity probe for precise measurement
    • Two probes (short and long) offered, to meet different requirement of measurement
    • Attached a magnetic sucker, in case of the measurement inconvenient by handheld
    • Low battery indication, auto shutdown, and LCD backlight
    • Max. value hold function
    • Selectable temperature unit ℃/℉

    Specification

    Model ATO-GM63B
    Measuring Range Acceleration 0.1~199.9m/s² (Peak)
    Velocity 0.1~199.9mm/s (RMS)
    Displacement 0.001~1.999 mm (Peak-Peak)
    Accuracy ±5% ±2 digits
    Measuring Frequency Acceleration 10Hz~1KHz (LO); 1KHz~15KHz (HI)
    Velocity 10Hz~1KHz (LO)
    Displacement 10Hz~1KHz (LO)
    LCD Display 3 1/2 digit display
    Vibration Pickup Piezoelectric ceramic accelerometer (Shear-type)
    Power Supply Alkaline battery
    Functions Low battery indication (6.9V±0.2V)
    Auto power off (Automatically shutdown with no operation for 60 seconds)
    LCD backlight display (After 7 secends)
    Max. value hold
    Accessories Two probes (S and L) to meet different measurement requirements
    A magnetic sucker in case of inconvenience for measurement by handheld
    Operating Temperature 0~40℃
    Humidity 30~90%RH
    Weight 229g
    Dimension 72x35x145mm

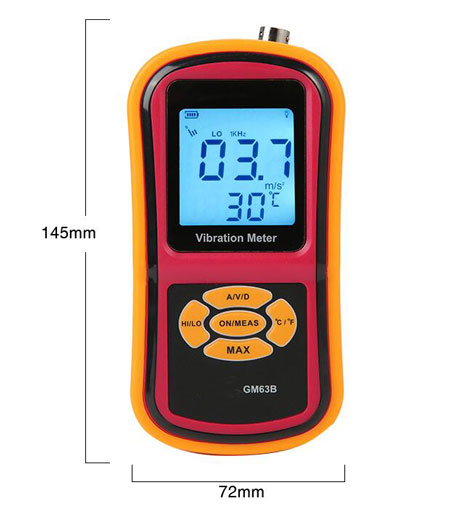

    Dimension

    portable vibration meter dimension

    Tips: What does a portable vibration meter do?
    The portable vibration meter is a portable mechanical vibration measuring instrument, which can easily measure the vibration parameters such as vibration, acceleration and velocity. The instrument can also be used to reliably and quantitatively evaluate the vibrations of rotating and reciprocating machines. It is widely used in mechanical design and manufacture, military, electric power, equipment management, transportation and environmental protection departments etc. The portable vibration meter provides these fields great convenience for on-line inspection and monitoring of machine equipment faults and aging signals, product quality control, vibration test measurement and vibration control.
