Handle Butterfly Valve, DN50-DN200

Write a review

$104.46

Cheap price handle butterfly valve online for sale with the optional nominal diameter from DN50 to DN200. The ductile iron butterfly valve comes with manual drive mode. The wafer-type butterfly valve uses precision templates, precision casting materials, heavy-duty valve bodies, and high-temperature resistance.

Nominal Diameter *

SKU: ATO-HBV-50200

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview

Economical manual butterfly valve with a nominal diameter of DN50 to DN200 can be selected. The handle bf valve is easy to operate, reliable and stable, high-temperature forging and casting, the flange butterfly valve's structure is dense and the strength is high.

Specification

Model: ATO-D71X-16
Nominal diameter: DN50-DN200
Drive mode: Manual
Medium: Water, steam, oil, etc.
Structural form: Vertical plate
Mode of action: Single action
Eccentricity requirements: No eccentricity
Connection method: Clip
Nominal pressure: 1.6 MPa
Valve body material: Ductile iron
Sealing method: Soft seal

Dimension

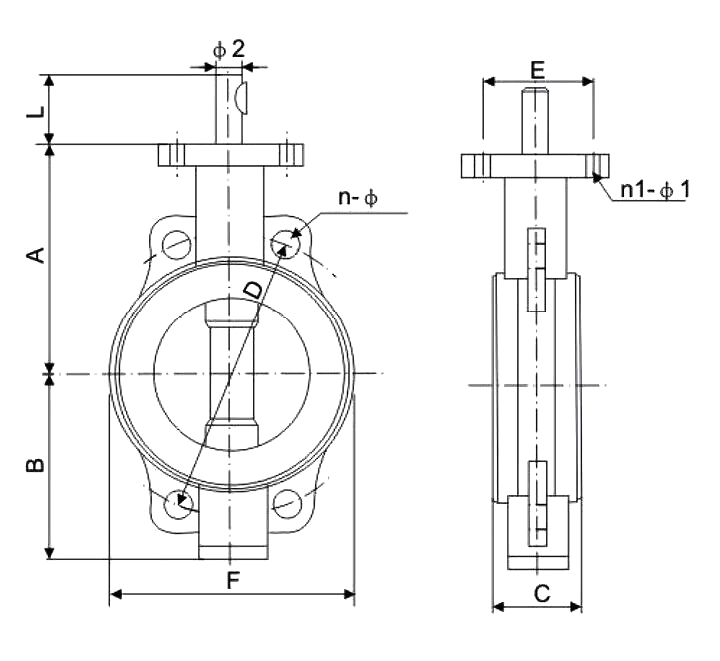

Handle butterfly valve dimension

Size	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	D1 (mm)	n-φ (mm)	F (mm)	E (mm)	n1-φ1 (mm)	φ2 (mm)
DN50	161	80	43	52.9	32	125	4-23	130	57.15	4-6.7	12.6
DN65	175	89	46	64.5	32	145	4-26.5	150	57.15	4-6.7	12.6
DN80	181	95	46	78.8	32	160	8-18	164	57.15	4-6.7	12.6
DN100	200	114	52	104	32	180	4-24.5	188	69.85	4-10.3	15.77
DN125	213	127	56	123.3	32	210	4-23	220	69.85	4-10.3	18.92
DN150	226	139	56	155.6	32	240	4-25	252	69.85	4-10.3	18.92
DN200	260	175	60	202.5	45	295	4-25	305	88.9	4-14.3	22.1

Application

Handle butterfly valve application

Tips: What is a handle butterfly valve?

The handle butterfly valve is simple in structure, small in size and light in weight, and only consists of a few parts. Moreover, it can be quickly opened and closed by only rotating 90°, and the operation is simple. At the same time, the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body, so the pressure drop generated by the valve is very small, so it has good flow control characteristics.
