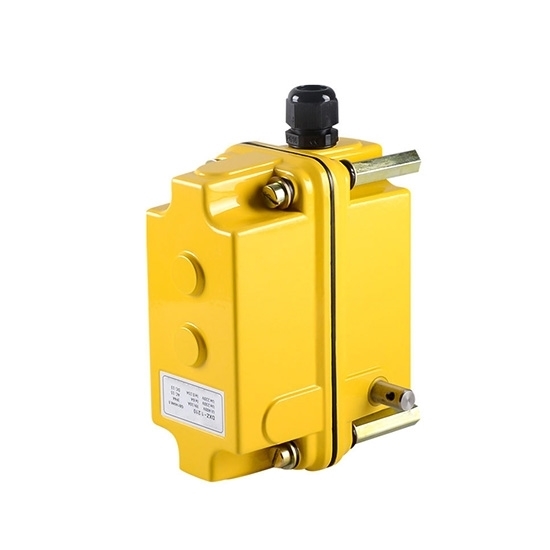

Height Limit Switch for Lifting, 4 NO 4 NC, 380V 10A

The lift limit switch equipment uses an aluminum alloy shell with ABS material, which is durable and has good impact resistance and corrosion resistance. Built-in single wheel rotating structure, so its operation is stable.

Features

• Height limit switch for lifting has high structural strength, strong conductivity, and convenient installation.
• The shell is made of high-quality thickened die-casting surface high-voltage electrostatic spraying, selected high-quality raw materials, high mechanical strength and long service life.

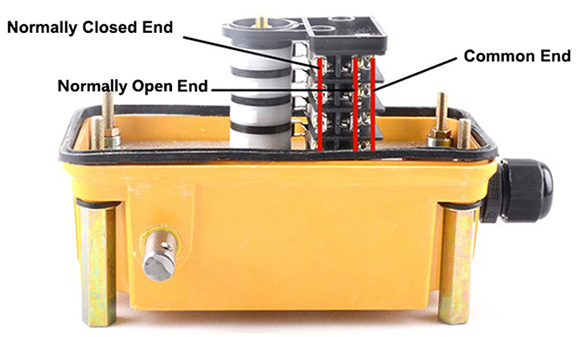

• The high limit switch uses dust-proof and waterproof connectors, and the wiring is convenient, safe and practical.
• The lifting height limit switch uses high-quality contact switch cores with long service life.

Specification

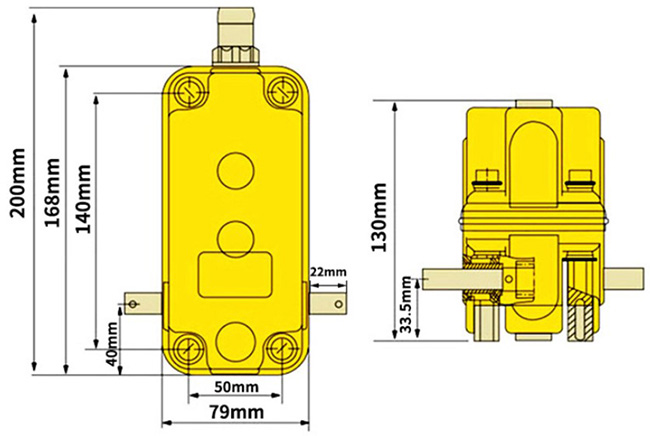

Dimension (mm)

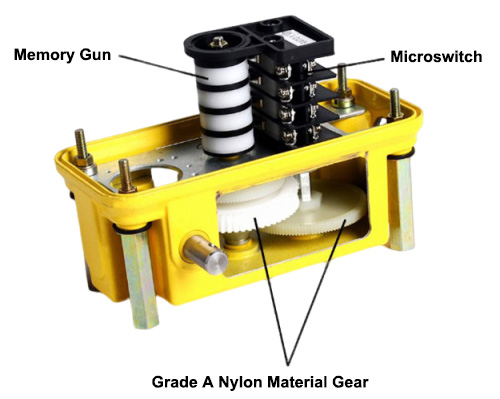

Details

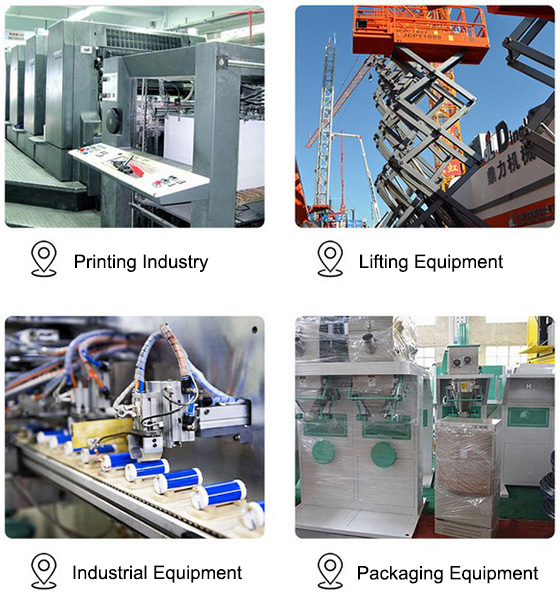

Applications

Tips: Applications of lifting height limit switch

• Elevator: used to limit the up and down travel of the car to prevent it from hitting the top or bottom.
• Crane: Control the lifting limit of the hook or crane arm to avoid over-height operation.
• Lifting platform: Ensure that the platform operates within the set height to improve safety and accuracy.
• Automatic stacker: Realize vertical travel limit and cooperate with the system to complete automatic positioning.
• Port loading and unloading equipment: Used for lifting and lowering limit of hoisting equipment to ensure the safe operation of large machinery.
• Warehousing and logistics equipment: Control the upper and lower limit positions of the lifting mechanism to avoid equipment collision or jamming.
• Engineering machinery: Protect equipment from structural damage caused by misoperation in complex environments.
