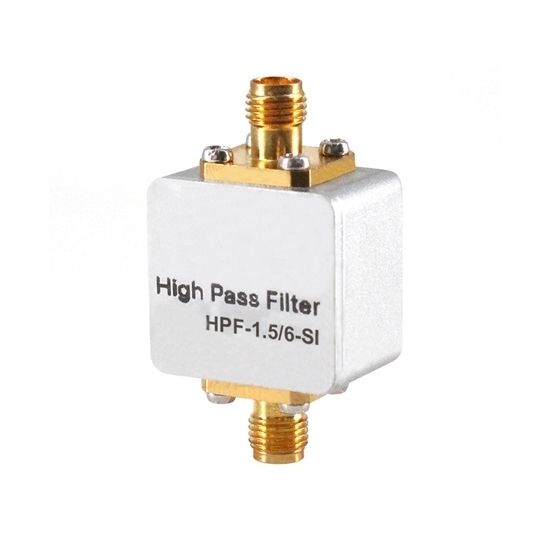

    Passive RF High Bandpass Filter, 1.5~6 GHz

    Buy favorable price passive RF high bandpass filter online, with a frequency range from 1.5 GHz to 6 GHz, impedance 50 Ohm, power 3W, SMA female connectors. It is a crucial component in electronic systems, designed to selectively allow a specific range of radio frequencies to pass while attenuating others. This BPF band pass filter is instrumental in audio processing and antenna systems applications.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Utilizing passive components like inductors and capacitors, this RF bandpass filter forms a resonant circuit that responds to signals within a defined frequency range. The dielectric properties of materials within the filter influence its performance, affecting its ability to discriminate and transmit signals efficiently.


    • Model: ATO-HPF-1.5/6-SI
    • Frequency Range: 1.5~6 GHz (1500~6000MHz)
    • Impedance: 50 Ohm
    • Power: 3W
    • Cutoff Frequency: 3dB, 1400MHz
    • Insertion Loss: 2.0dB@1600-1900MHz, 1.0dB@1900-5000MHz, 2.0dB@5000-6000MHz
    • Passband Fluctuation: ≤10dB
    • Restraint Outside the Band: 40dB@DC-800MHz, 35dB@800-1000MHz
    • VSWR: ≤1.50:1
    • Input/ Output Connectors: SMA-Female
    • Operation Temperature: -55℃~+100℃
    • Surface Fishing: Black Paint
    • Dimension: 21.6*20.4*14.7mm
    • Weight: 21g

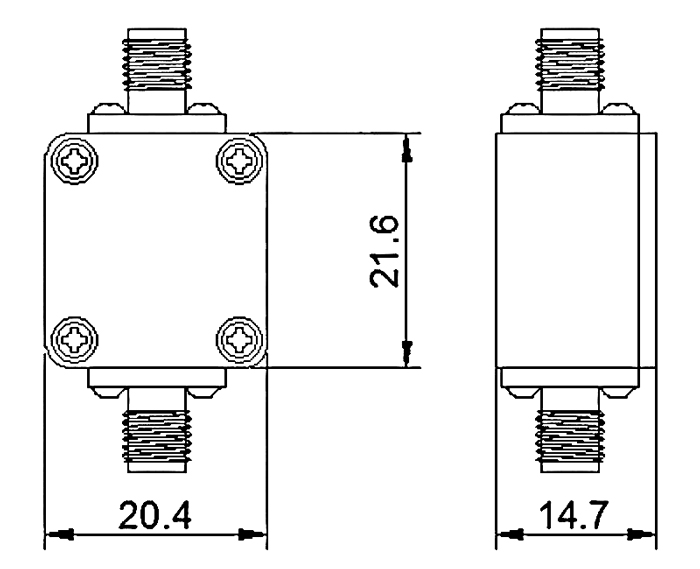

    Dimension (Unit: mm)

    6 GHz passive RF high bandpass filter dimension

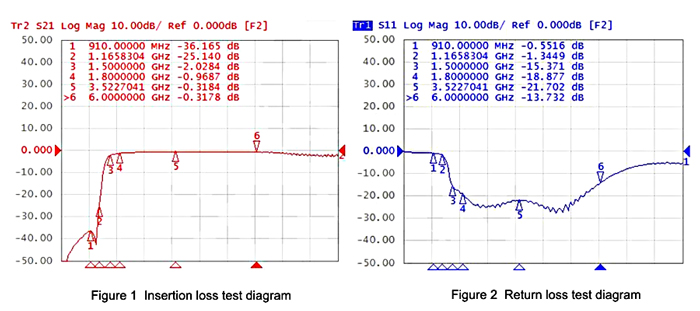

    Test Curve Diagram

    6 GHz passive RF bandpass filter test curve

    Tips: Can passive RF bandpass filters be cascaded for increased performance?

    Yes, passive RF bandpass filters can be cascaded to enhance performance. Cascading involves connecting multiple filters in series to achieve a combined or narrower passband, increased selectivity, and improved rejection of unwanted frequencies. However, there are trade-offs to consider, such as insertion loss and the potential for signal degradation. As filters are cascaded, insertion loss accumulates, impacting overall signal strength. Additionally, filter characteristics, like group delay and phase response, may be affected. Careful design and selection of filters with compatible characteristics are crucial to achieving the desired performance improvements. Overall, while cascading passive RF bandpass filters can enhance selectivity, designers must strike a balance between the desired filtering characteristics and the potential drawbacks introduced by the cascading process.
