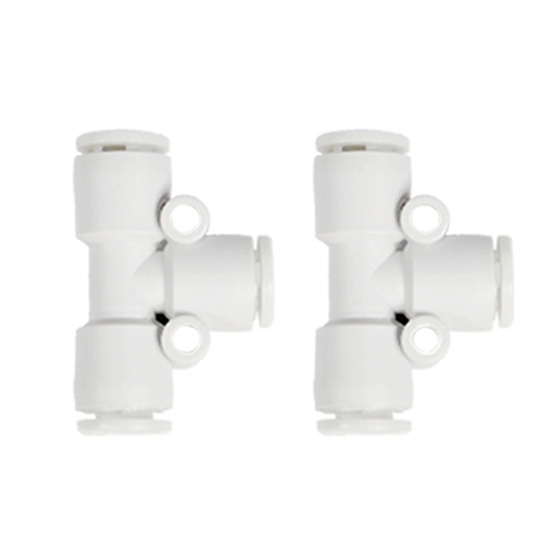

Hose Quick Connector, Intubation Type

5 out of 5 based on 2 reviews | Write a review

$3.53

Affordable hose quick connector with 03/04/06 mm input cannula diameters is available. It is an intubation type, designed for RVs, campers, faucets, lawn sprinklers, spigots, taps and other garden accessories. Strong plastic shell makes the quick connector more smooth and wear-resistant.

Input Cannula Diameter *
Output Cannula/Thread Diameter (03) *
Output Cannula/Thread Diameter (04) *
Output Cannula/Thread Diameter (06) *

SKU: ATO-QC-I03

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

Best price quick connector for sale online. It is available with 03/04/06 mm input cannula diameters. Hose quick connector can quickly connect to the end of hoses, widely use for all kinds of watering equipment, such as sprinklers, sprayers, sprinklers, etc.

Specifications

Model	ATO-KJT
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Ø3	ATO-KJT03-00	2.5
Ø3.2	ATO-KJT23-00	2.6
Ø4	ATO-KJT04-00	3
Ø6	ATO-KJT06-00	4.6

Tips: Advantages of quick contactor

The quick connector does not need hot welding, spot glue, no hand screwing nut, only one hand can complete the sealing connection, more pneumatic quick connector solution, integrated automatic airtightness test, and high efficiency.
It is easy to install and operate. The operator only needs to hold the joint, press, or pneumatic drive to align the tubing and seal instantly.
Fast connector with good sealing, safety and reliability, and good stability, to ensure the accuracy of airtightness test data.
ATO quick connector can be connected to a variety of pipe types, straight pipe, threaded pipe, flange pipe, turn over the pipe, gradually expanded pipe, pagoda head, etc.
It is made of wear-resistant brass and a high-quality plastic shell.

Quick Connector Dimensions
