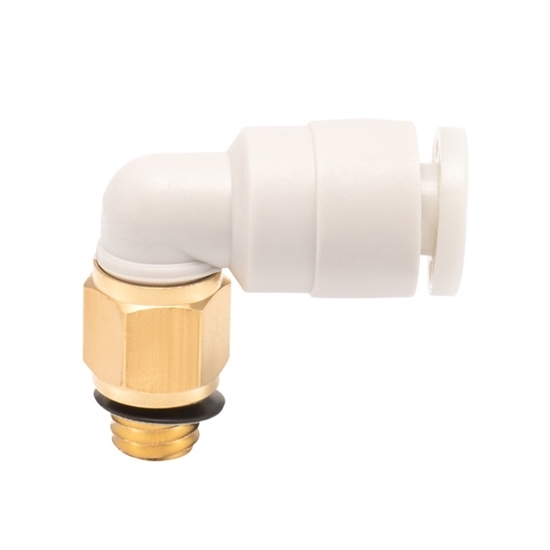

    Hose Quick Connector, M Type

    5 out of 5 based on 6 reviews | Write a review
    Get a well-made hose quick connector at a low price. It is also a water/air quick connect fitting, perfect for garden hoses, watering equipment for pressure washers, RVs, campers, faucets, lawn sprinklers, spigots, taps and other garden accessories. M type faster connectors are well sealed, and can quickly connect to the hoses without tools.
    SKU: ATO-QC-M02
    This product has a minimum quantity of 50
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hose quick connector with 03/04/06 mm input cannula diameters is suitable for various watering devices such as nozzle, sprayers, and sprinklers. The M-type hose connects are easy to connect and disconnect without leakage, designed for water and air.


    Model ATO-KJL
    Fluid Air/Water
    Material Brass
    Maximum operating pressure 1.0MPa
    Operating vacuum pressure -100kPa
    Proof pressure 3.0MPa
    Ambient and fluid temperature Air:-5~60°C, Water:0~40°C
    Tubing material Nylon, Soft nylon, Polyurethane
    Tubing O.D. Φ3, Φ3.2, Φ4, Φ6

    Quick Connector Details

     Applicable tubing O.D (mm) Model Weight (g)
    Φ3 ATO-KJL03-M3 2.1
    ATO-KJL03-M5 2.5
    ATO-KJL03-M6 2.6
    ATO-KJL03-01S 6.7
    Φ3.2 ATO-KJL23-M3 2.1
    ATO-KJL23-M5 2.5
    ATO-KJL23-M6 2.6
    ATO-KJL23-01S 6.7
    Φ4 ATO-KJL04-M3 2.2
    ATO-KJL04-M5 2.7
    ATO-KJL04-M6 2.8
    ATO-KJL04-01S 6.8
    Φ6 ATO-KJL06-M5 3.2
    ATO-KJL06-M6 3.3
    ATO-KJL06-01S 6.4

    Tips: Features of the quick connector

    • Time and labor-saving: Save time and labor when disconnecting and connecting air and water pipes through quick couplings.
    • Environmentally friendly: When the quick connector is connected and disconnected, water will not spill and protect the environment.
    • Easy to transport: Large equipment or hydraulic tools that need to be easily portable can be transported by using quick couplings and then assembled and used after reaching the destination.
    • Economical: All the above advantages create economic value for customers.
