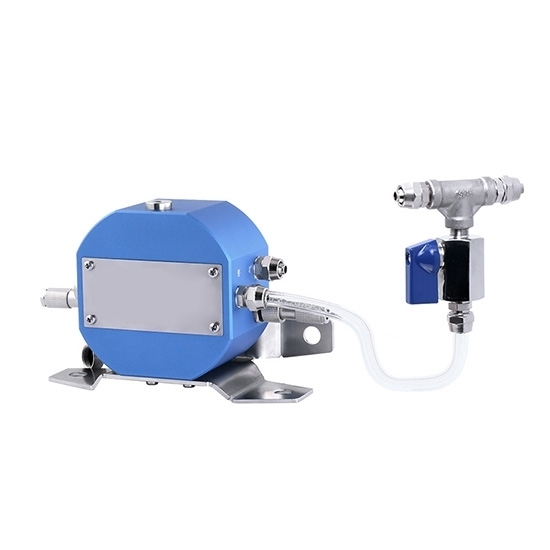

Hydraulic Level Sensor for Settlement Monitoring, RS485

$332.62
Factory price hydraulic level sensor for settlement monitoring, measuring liquid media including water, antifreeze and silicone oil, providing high accuracy measurement up to 0.05% FS. The level sensor supports RS485 output signal, and its IP66 protection rating makes it dustproof and water jet resistant. It supports 5~28VDC wide voltage power supply, and the medium temperature range is -40℃~60℃.
SKU: ATO-LEVS-CYW303
30-day Returns
Free Shipping
Delivery date: 6-12 days

Hydraulic level transmitter adopts imported high-precision diffused silicon core, with high accuracy, good stability and small temperature drift coefficient. It is mainly used for monitoring vertical displacement and tilt of dams, nuclear power plants, wind power plants, high-rise buildings, mines, landslides, bridges, etc. The level sensor is easy to install and disassemble, and the hose lead-out switch design is more convenient to use. In addition, we can also provide customized products that meet the application needs of customers. If needed, please feel free to contact us.

Specification

Model ATO-CYW303
Measuring medium Water, antifreeze, silicone oil
Measuring range 0~2500mm H2O
Medium temperature -40~60℃
Response frequency ≤5Hz
Output signal RS485
Power supply voltage 5~28VDC
Accuracy level 0.05%FS (reference conditions: temperature 15~25℃, atmospheric pressure 86~106kPa, humidity 45~75%RH)
Repeatability ≤0.01%FS
Hysteresis ≤0.01%FS
Stability performance ±0.05% FS/year
Level overload 200% full scale
Temperature compensation -10~60℃
Temperature drift ±0.005%FS/℃ (within temperature compensation range), ±0.03%FS/℃ (outside temperature compensation range)
Protection level IP66 (after electrical connection is complete)
Overall weight About 1380g (including bracket)
Connection time 20ms
Resolution 0.1mm
Maximum power ≤0.015Us (W)
Insulation resistance ≥100MΩ, 500VDC
Insulation strength 500VAC
Environmental temperature -40~85℃
Environmental humidity 0%~95%RH (no condensation and no condensation)
Certification CE, ISO 9001, SGS, SIL


Dimension

Hydraulic level sensor dimension

Wiring diagram

Hydraulic level sensor wiring diagram

Applications

Hydraulic level sensor is used for monitoring vertical displacement and tilt of dams, nuclear power plants, wind power plants, high-rise buildings, mines, bridges, etc.

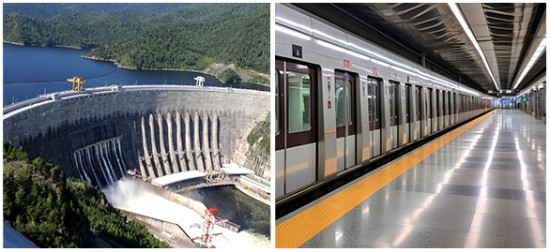

Hydraulic level sensor application

Tips: Why choose this hydraulic level sensor?

The hydraulic level sensor provides high-precision measurement, long-distance communication, and robust protection against harsh environments. It is designed to be rugged and durable, able to withstand high-pressure water flow and extreme environmental conditions, reducing maintenance requirements and extending service life. Whether you're monitoring settlement during construction or managing fluid levels in industrial tanks, this sensor ensures reliable data for accurate decision-making.

It is also suitable for use with various tools and equipment, such as hydraulic jacks, electric pumps, grouting equipment, grouting machines, etc. In these applications, liquid level monitoring is essential to ensure continuous operation and safe operation of the equipment. The sensor can assist the automatic control system to achieve real-time feedback and intelligent adjustment, improve operating efficiency and prevent damage caused by equipment overload or lack of liquid.
