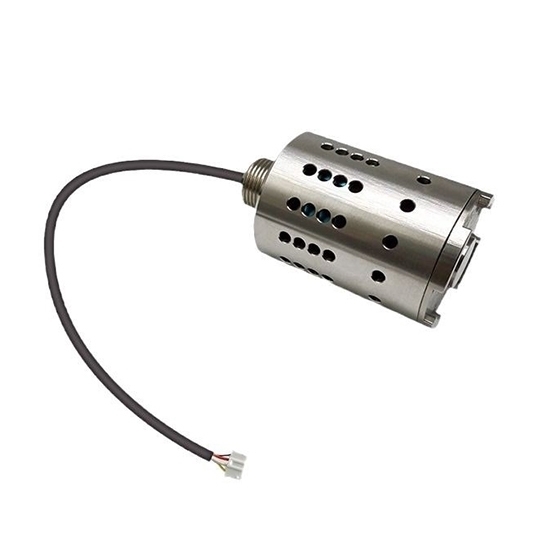

Industrial Dust Detection Sensor, PM1.0/PM2.5/PM10

This industrial-grade particulate matter sensor is a versatile digital solution for monitoring airborne dust concentrations. It accurately detects and outputs the mass concentration of PM1.0, PM2.5, and PM10 particles simultaneously via a standard digital interface. Designed for easy integration into various instruments and environmental management systems, laser dust sensor is well-suited for challenging applications ranging from industrial sites and construction zones to smart buildings and residential air quality devices.

Specification

Feature

• The industrial dust sensor features a robust metal structure that ensures stable, reliable, and long-lasting performance.
• This particulate matter sensor is capable of simultaneously measuring multiple particle sizes: PM1.0, PM2.5, and PM10.
• The dust concentration sensor offers high sensitivity of ≥95%, enabling precise data acquisition and fast response times.
• Excellent anti-interference capability in this dust detection sensor is provided by the full metal shield.
• The industrial-grade sensor features a removable design for easy cleaning and maintenance, ensuring good recovery of performance.
• A long operational lifespan allows this particulate PM2.5 dust sensor to support continuous operation for over 40,000 hours.

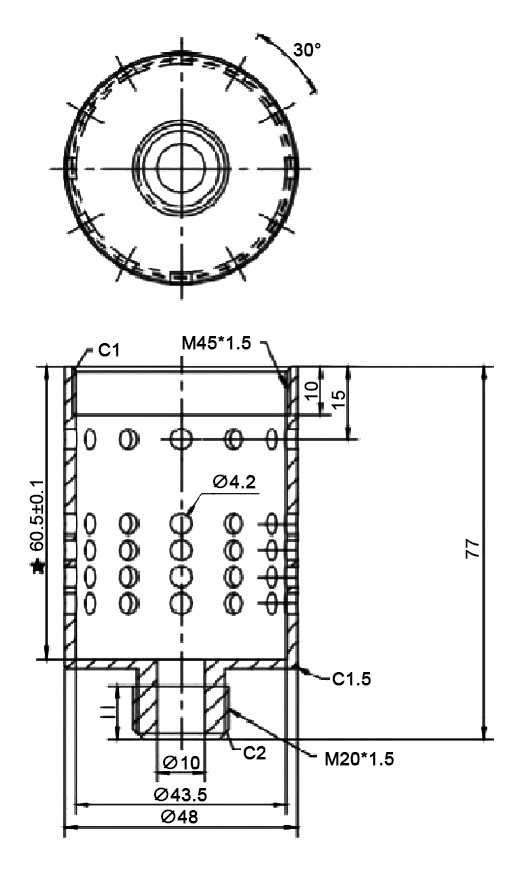

Dimension (Unit: mm)

Working Principle

This industrial dust detection sensor adopts the laser scattering principle. That is, laser is irradiated on suspended particulate matter in the air to produce scattering. At the same time, the scattered light is collected at a specific angle to obtain a curve of the scattered light intensity changing with time. Then, the microprocessor uses an algorithm based on the Mie theory to obtain the equivalent particle size of the particulate matter and the number of particulate matters with different particle sizes per unit volume.

Application

5 Tips for Industrial Dust Detection Sensor

1. Ensure the laser dust sensor is powered with a stable 5V DC supply for accurate readings and long-term reliability.
2. The default data output is via UART at 3.3V TTL logic levels; ensure your host controller is compatible.
3. Periodically check and clean the sensor's laser window and air pathways according to the manufacturer's guidelines to maintain optimal performance, especially in dusty environments.
4. For integration, pay attention to the pin definitions: typically, Pin1 (VCC), Pin2 (GND), Pin3 (RXD/SDA), Pin4 (TXD/SCL).
5. Allow the dust detection sufficient stabilisation time (typically under 10 seconds) after power-on before using the data for critical measurements.
