    Infrared Paint Curing Lamp for Car Spray Paint

    $268.77
    Paint curing lamp use infrared short-wave lamp, in addition to being very suitable for car spray paint, it can also be used for wooden furniture, advertising character production, metallic spray paint, film plating and other applications. Stand of the Paint curing lamp is high-quality custom-made aluminum column, can rotate 360° or 180°, which can move, raise and lower smoothly. Side panels and masks are made of 304 stainless steel, and each group of lights has independent switches. 1-lamp paint curing lamp can select hand-held and stand. 2-lamp with simple timer switch, optional thermostat. 3-lamp have a variety of interface operation options, including manual knob control, computer board touch control, pulse, temperature and distance measurement, and so on. 6-lamp high-power paint curing lamp is suitable for large-scale baking. It is ideal for automobile spray paint, baking paint and repair.
    SKU: ATO-IPCL-1236
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Infrared Paint Curing Lamp Features

    • Provide efficient painting process to car spray paint, strengthen hardness of the paint, and improve the paint adhesion.
    • With digital display, control time and power more accurately.
    • Matching high-temperature wires, strong and durable, to prevent corrosion and melting of wires.
    • With overload and overheating circuit induction function, providing automatic overload protection for car spray paint work, eliminate hidden dangers.

    Specification

    Model ATO-IPCL-LD1A ATO-IPCL-LD1H ATO-IPCL-LD2A ATO-IPCL-LD2AL ATO-IPCL-LD3AL ATO-IPCL-LD3AT ATO-IPCL-LD3AC ATO-IPCL-LD3AM ATO-IPCL-LD6AT
    Number of Lamps 1 2 3 6
    Input Voltage 220-240V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz 380V 50/60Hz
    Rated Power 1×1100W 2×1100W 3×1100W 6×1100W
    Curing Temperature 40℃~100℃ 40℃~100℃ 40℃~100℃ 40℃~100℃
    Curing Area 650×500mm 800×800mm 1200×1000mm 2000×1200mm
    Adjustable Height 2200mm 1500mm 2200mm 2200mm
    Drying Time 0~60min 0~60min 0~60min 0~60min
    Working Current 10A 10A 16A 16A
    Weight 3.5kg 11kg 24.5kg 25kg 55kg 55kg 57kg 62kg 73kg
    Additional Feature Refer to the Additional Feature Table
    Certification CE

    Additional Performance for Infrared Paint Curing Lamp with Different Model

    Model Additional Performance
    ATO-IPCL-LD1A Hand-held
    ATO-IPCL-LD1H Stand
    ATO-IPCL-LD2A Can move up and down, up to the car roof.
    With simple timer switch.
    ATO-IPCL-LD2AL Can move up and down, up to the car roof.
    With control box, small circuit board, SCR (Thyristor), thermostat.
    ATO-IPCL-LD3AL Interface operation method is manual knob control
    ATO-IPCL-LD3AT Interface operation method is computer board touch control.
    With pulse function.
    ATO-IPCL-LD3AC Interface operation method is computer board touch control.
    With pulse function.
    With temperature and distance measurement function.
    ATO-IPCL-LD3AM Interface operation method is computer board touch control.
    With pulse function.
    With temperature and distance measurement function.
    Large screen four digits display temperature and time.
    ATO-IPCL-LD6AT can 180° rotate, high power for fast baking

    Note: Be sure to check this table before selecting a model.

    Dimension Drawing of Infrared Paint Curing Lamp, 1-Lamp

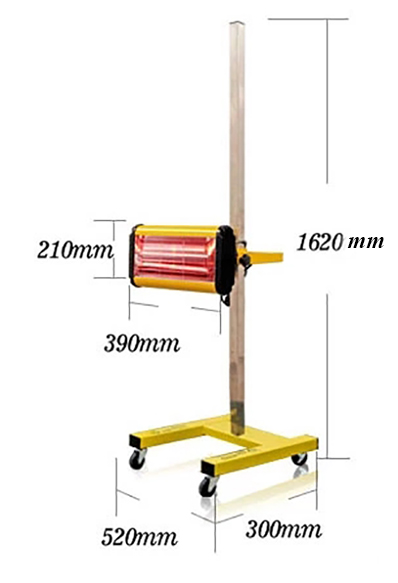

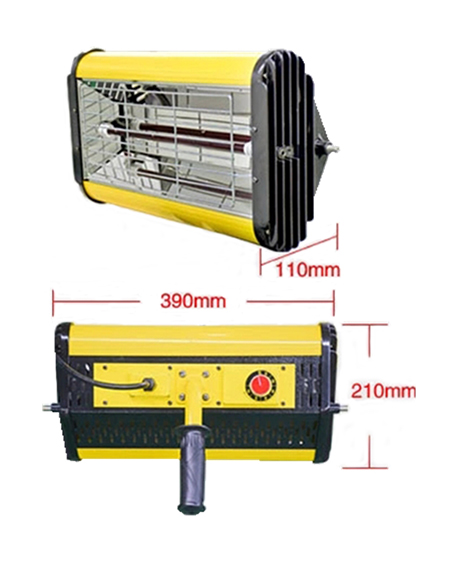

    Dimension Drawing of Infrared Paint Curing Lamp, 1-Lamp, Handheld Dimension Drawing of Infrared Paint Curing Lamp, 1-Lamp, Stand

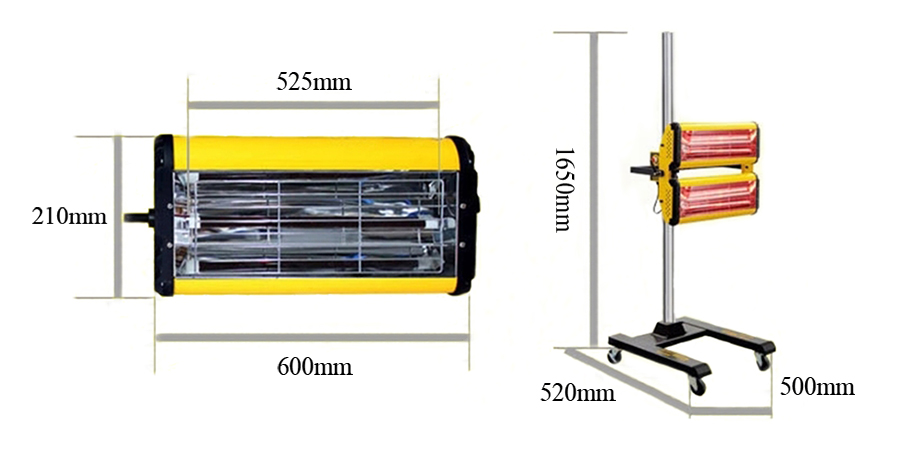

    Dimension Drawing of Infrared Paint Curing Lamp, 2-Lamp

    Dimension Drawing of Infrared Paint Curing Lamp, 2-Lamp

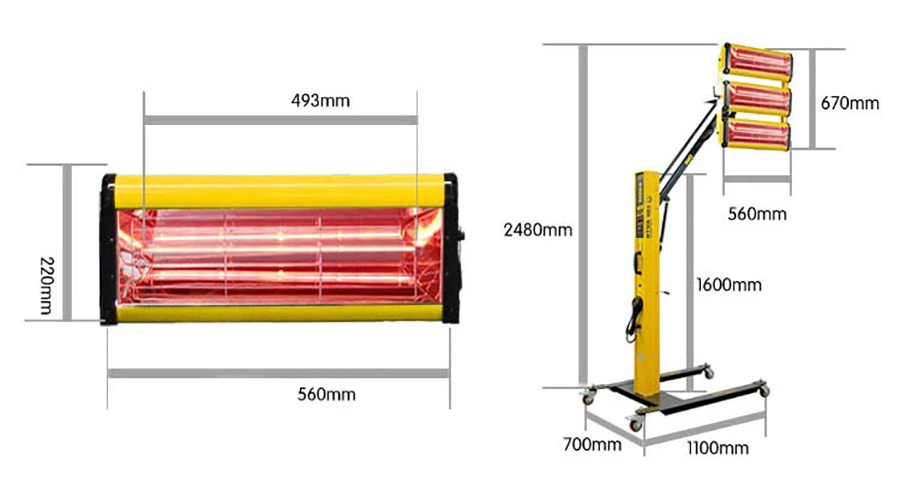

    Dimension Drawing of Infrared Paint Curing Lamp, 3-Lamp

    Dimension Drawing of Infrared Paint Curing Lamp, 3-Lamp

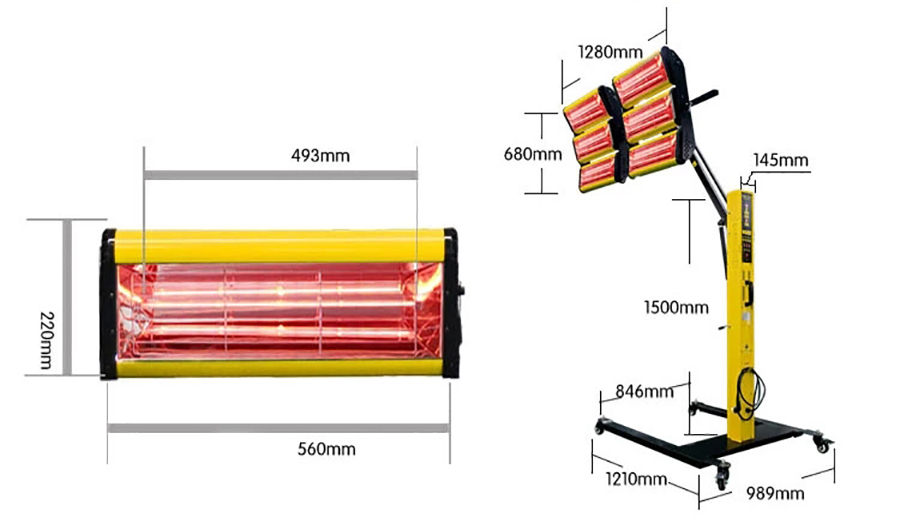

    Dimension Drawing of Infrared Paint Curing Lamp, 6-Lamp

    Dimension Drawing of Infrared Paint Curing Lamp, 6-Lamp

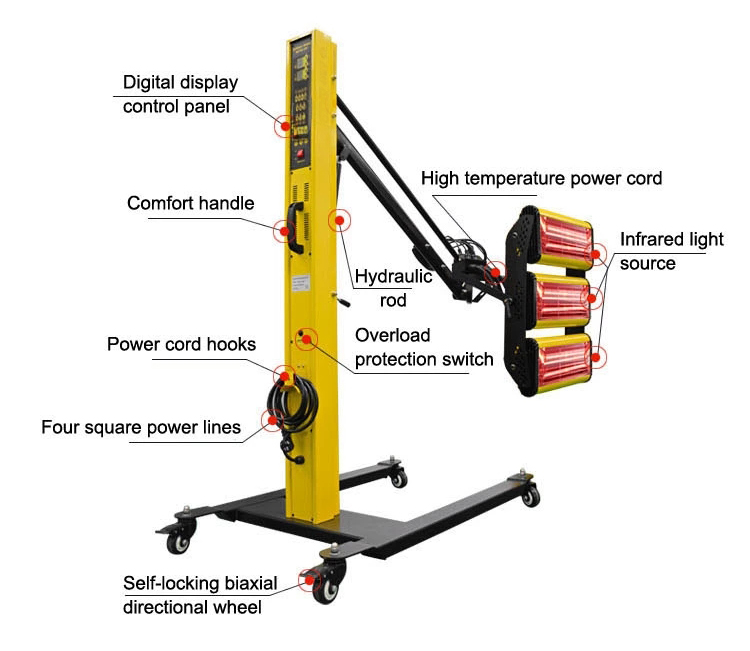

    Structure Diagram of Infrared Paint Curing Lamp

    Structure Diagram of Infrared Paint Curing Lamp



    Tips:  Infrared Paint Curing Lamp Installation.

    1. Install 4 casters. Be sure to install the brake wheels at the back.
    2. Install the lamp post. Align the holes and tighten the screws.
    3. Install the lamp cap. Plug in the power cord and tighten it.

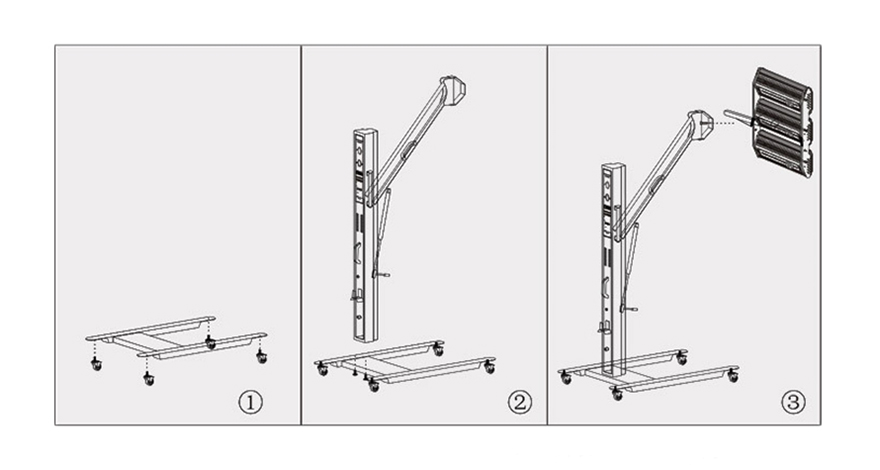

    Infrared Paint Curing Lamp Installation Diagram
