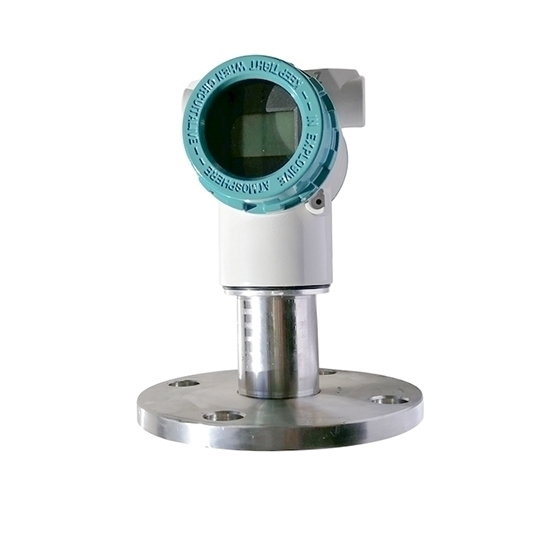

Digital Laser Radar Level Meter, 4–20mA, Stainless Steel

Factory price digital laser level gauge with DC24V voltage, resolution 1mm, threads and flange two procudure linkages are avalible. Laser level meter housed in a well-designed shield, the laser radar level meter can be used in harsh environments (high temperature, high pressure, high humidity and high dust).

Specification

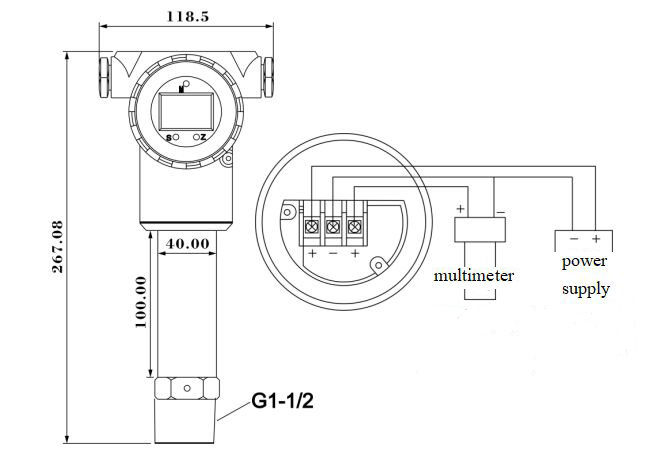

Dimension (mm)

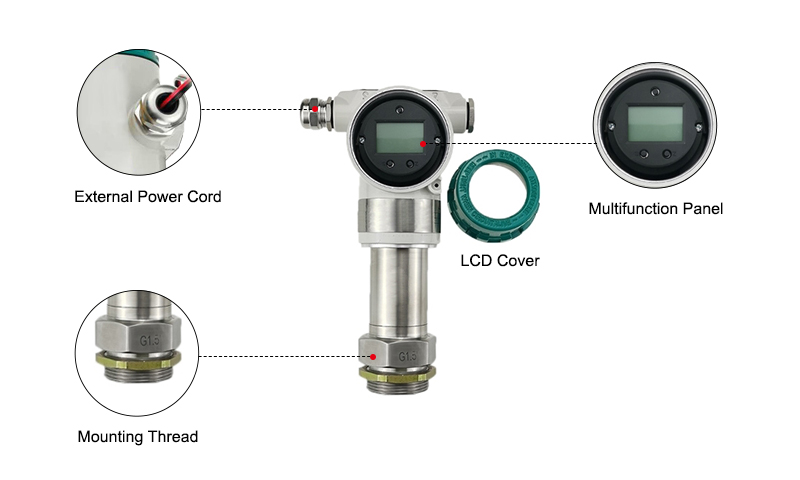

Details

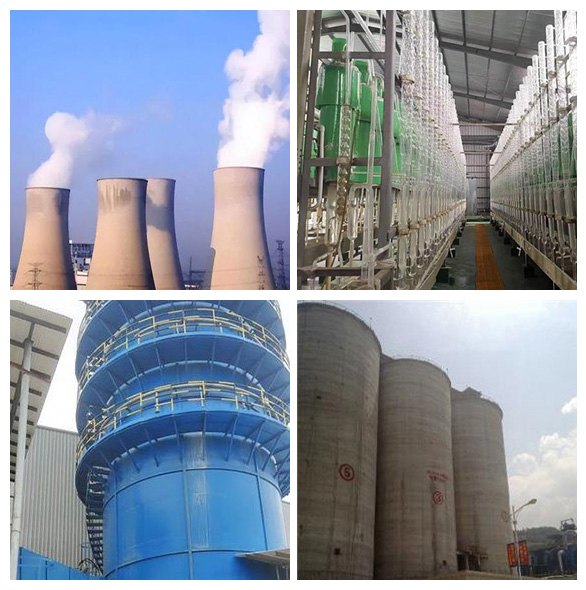

Application of Laser Rader Level Meter

• Pharmaceutical production.
• Plastic production, high-risk areas for plastics.
• Warehousing industry such as crude oil, refined oil measurement.
• Cement and aggregates - raw materials, clinker silos, etc.
• Food processing, cereals, seeds and feed, aggregate industry.
• Environment and recycling industry, polymerization reactor vessel (high pressure).
• Chemical processing, bio-energy, liquid asphalt, reactor vessel (vacuum), alloy polystyrene, nylon, polyvinyl chloride, etc.
• Pulp and paper, such as pulp pulp pool, sealed pool, white pool, storage tank, storage tower, bleaching tower, etc.
• Mining, metallurgy, colored smelting.

Tips: Measuring Principle of Laser Radar Level Meter.

The laser level meter has built-in visible laser aiming at the measured medium, and a built-in high-precision high-resolution timing device measures the round-trip time of the infrared laser between the launch point and the measured medium, then L= t * c/ 2 (t is the round trip time, c for the speed of light). The radar level meter is a non-contact measurement. Because the laser can penetrate the glass, the laser level gauge can be well protected and can be used for harsh environment measurement (high temperature, high pressure, high humidity, high dust). Since the laser emission angle is very low (<0.2°), the radar level gauge measures the small space level and allows accurate measurement of irregular surfaces.
