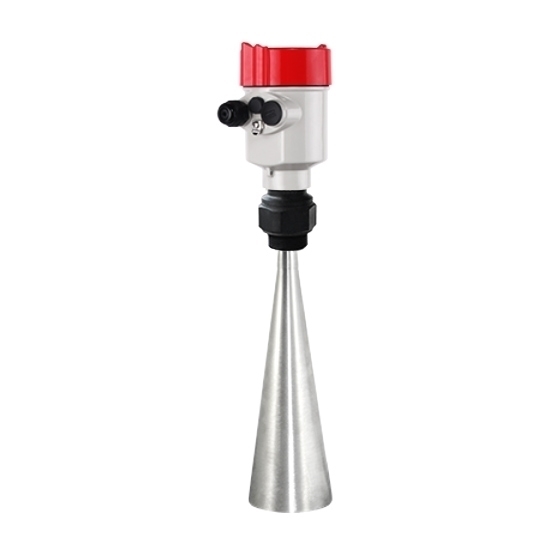

    Radar Level Sensor, Non-contact Water Level Measurement, 0-70M

    5 out of 5 based on 2 reviews | Write a review
    $1,727.96

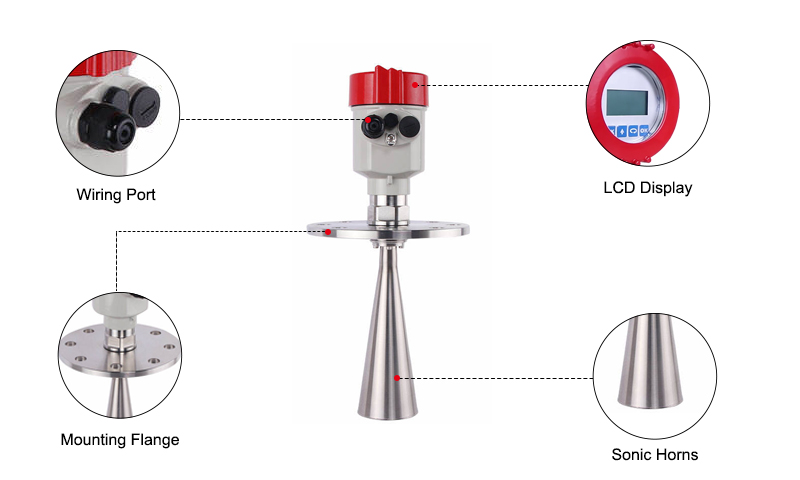

    Radar water level sensor using advanced non-contact radar measurement technology has measuring range from 0-30m, 0-70m, optional output signal 4-20mA, HART, RS485/232 and optional power supply DC 12-24V, AC 220V. Radar level transmitter consists of protection head with LCD display, waterproof connectors, internal radar antenna, horn and installation accessory, can be used for measuring liquid level of reservoir/ river/ lake/ water tank.
    SKU: ATO-LEVS-R70M
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Ultrasonic level sensor for non-contact reservoir/ river/ lake/ tank water level measurement has maximum measuring range 0-70m, can transmit and output 4-20mA, HART or RS485/232 signal to remote control system.

    Specification:

    Model ATO-LEVS-RD909
    Shipping weight 2.5kg
    Measuring range * 0-30m, 0-70m
    Accuracy ±3mm
    Resolution 1mm
    Display LCD display
    Measured interval 1s (according to parameter setting)
    Adjustment time 1s (according to parameter setting)
    Microwave frequency 26GHz
    Output signal * 4-20mA (can be connected with HART), RS485/232
    Power supply * DC 12-24V, AC 220V/50Hz
    Material Shell: aluminum, process connection: 304 stainless steel, horn: 304 stainless steel
    Horn antenna size Φ98mm
    Pressure Maximum 4MPa
    Shock resistance 10m/s2, (10~150)Hz
    Communication protocol Modbus
    Medium Water
    Storage temperature -40~+100℃ (-40~+212℉)
    Process connection (antenna) temperature -40~+150℃ (-40~+302℉)
    Protection class IP67
    Electrical connection 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
    Installation * G1-1/2"A thread, vertical bracket, flange
    Warranty 12 months

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Dimension (unit: mm):
    Radar level sensor for non-contact water/liquid/tank level measurement 0-70m dimension

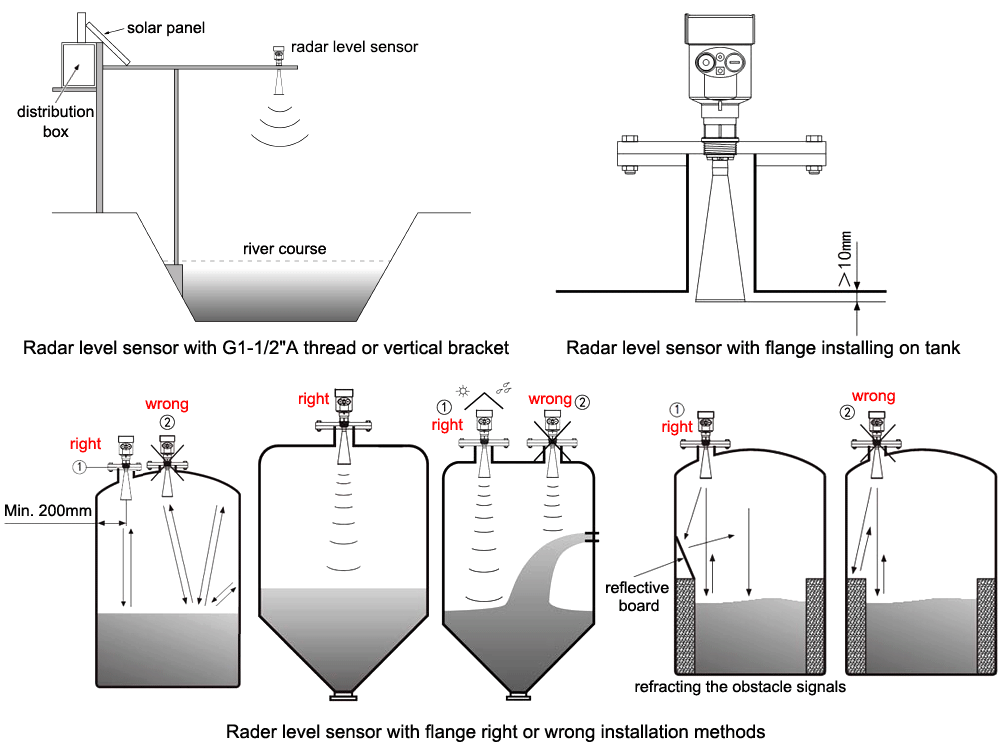

    Installation:
    Radar level sensor for non-contact water/liquid level measurement 0-70m installation

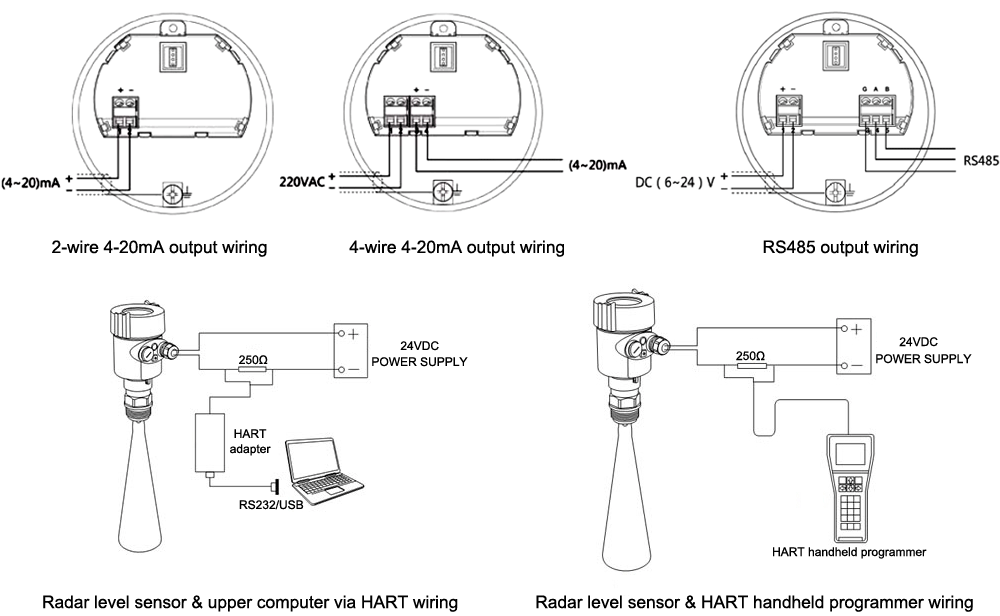

    Wiring:
    Radar level sensor for non-contact water level measurement 0-70m wiring
    Tips: Application of radar level sensor in reservoir water level monitoring

    The reservoir water and rain monitoring system is suitable for the water conservancy management department to remotely monitor the real-time data such as the water level and rainfall of the reservoir. It also supports remote image monitoring, providing accurate and timely on-site information to ensure the appropriate water storage of the reservoir and safe flood season.
    The reservoir water and rain monitoring system has achieved real-time monitoring of the water and rain conditions of the reservoir, realized the information management of the reservoir, and played a major role in protecting people's lives and property safety.

    System composition:
    Radar level sensors, rain gauges, reservoir detection terminals, security cameras, communication devices, etc.

    Functions:

    1. Remote detection
      1. Reservoir distribution location and on-site equipment operation status.
      2. Real-time data such as water level, rainfall, device battery voltage, etc.
    2. Remote monitoring
      1. During GPRS/CDMA communication, it supports timed, over-limit or remote manual photography.
      2. Support video real-time monitoring during optical fiber/ADSL/3G/4G communications.
    3. Automatic alarm
      1. When the water level/rainfall exceeds the limit or the field equipment fails, it will automatically alarm.
      2. Automatically send alarm text messages to the responsible person's mobile phone.
    4. Statistical Analysis
      1. Automatically count the time, day, month and year data reports of water level and rainfall.
      2. Automatically generate process analysis curves such as water level, rainfall, and battery voltage.
    5. Data storage
      1. Two-way storage of historical data between monitoring center server and field terminal.
      2. Field terminals can store historical data records of no less than one year.
    Existing reviews of Radar Level Sensor, Non-contact Water Level Measurement, 0-70M
    Calibration certificate for ultrasonic level sensor
    Is it possible to get the calibration certificate of your radar level sensor?
    From: Jimc | Date: 09/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we can provide factory calibration certificate "free of charge".
    The use of radar level sensor
    The use of radar level sensor
    I need to use your radar level sensor (RD906) in order to measure the level of chocolate in a chocolate tank that can know how many chocolates used per hour. Does it work for such an application?
    From: Markr | Date: 13/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    I need to know the following, so I can confirm:
    1. What is the size of the chocolate tank (length*width*height)? Is there any stirring rod inside?
    2. Is this chocolate tank sealed? If it is sealed, what is the pressure and temperature?
