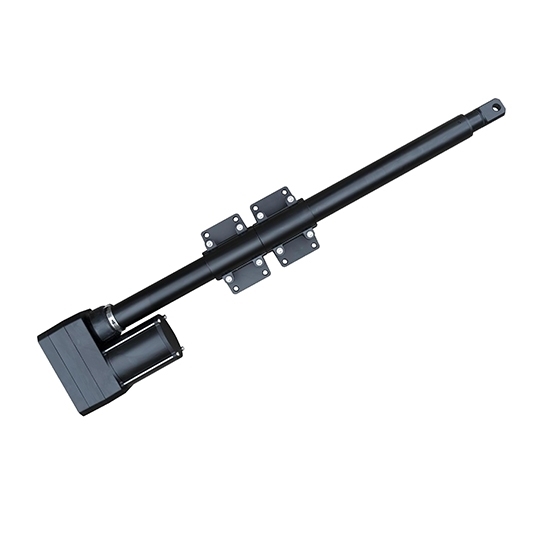

Farm Ventilation Linear Actuator, 5000N, 24V DC/120V AC

5 out of 5 based on 2 reviews | Write a review

$587.46

The provided actuator is specially designed for farm ventilation system and breeding industry, max. load capacity to 5000N. It is applicable to 24V DC, 48V DC , 120V AC, 230V AC power supplies, no-load speed is 4.5mm/s and full-load speed is 4mm/s, IP65 waterproof protection, can work in harsh environment.

Voltage *
Stroke *

SKU: ATO-LACTU-5000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Hot sale 5000N load capacity linear actuator with best price, available with 24V DC/ 36V DC/ 48V DC/ 120V AC/ 230V AC input voltages for optional ( 24V DC is the standard) and strokes are customizable. It features free adjustment of mounting, long service life and low power consumption, is widely used for farm ventilation system and breeding industry.

Parameter List

Model		ATO-U12
Voltage		24V DC, 36V DC, 48V DC, 120V AC, 230V AC (Optional)
Max. Load		5000N
No-Load Speed		4.5mm/s
Full-Load Speed		4mm/s
Rated Speed		5000RPM
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, 50-1200mm can be customized)
Duty Cycle		10%
IP Grade		IP65
Ambient Temperature		-40℃ ~ +65℃
Installation		Bracket mounting, the installation size can be adjusted flexibly.
Potentiometer		1K
Noise		<60db
Length of Cable		1.2m
Weight		11kg
Applications		Ventilation system for agricultural livestock breeding

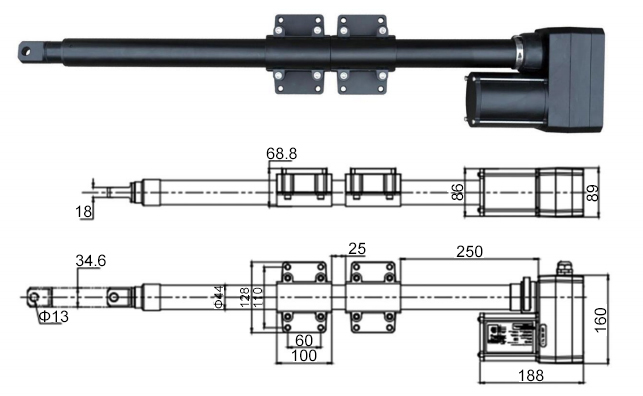

Standard Dimension (mm)

Heavy load micro linear actuator 12V / 24V

Linear actuators/electric actuators are general-purpose auxiliary drive devices, which are widely used in medical, furniture, household, electronics, electric power, machinery, metallurgy, transportation, mining, petroleum, chemical, lifting, transportation, construction, food processing And other industries.

How 12V/24V electric linear actuator works?

ATO series linear actuators have a wide range load capacity from 850N~20000N, use 12V/24V/36V/48V voltage, and have a standard stroke of 100mm~400mm.

Existing reviews of Farm Ventilation Linear Actuator, 5000N, 24V DC/120V AC

The difference between linear actuator

I've got an application where I need to have a long stroke actuator with some significant force at -60F temperatures. -60 to -20F would probably be the normal operating range for this system. Do you have any actuators that would work for us?

From: Deana | Date: 22/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Work life of 5000N linear actuator

What is the minimum work life of the linear actuators before they need to be replaced?

From: Kathryn | Date: 16/05/2021

Was this review helpful? Yes No (0/0)

ATO Responded

The linear actuators telescopic service life, the total number of times is about 2-3 million time.
