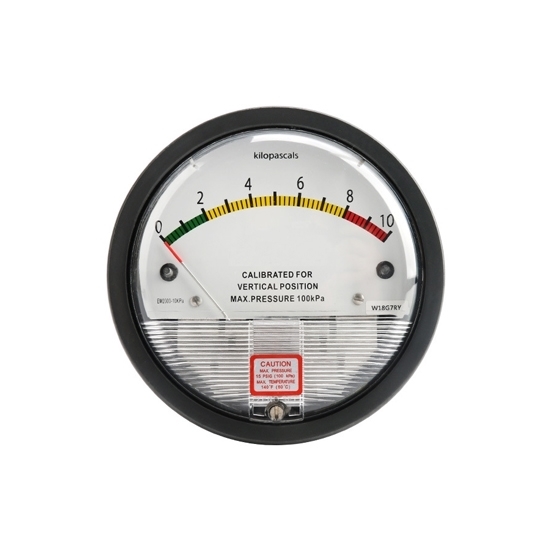

Magnehelic Differential Pressure Gauge, -500Pa~30KPa

Write a review

$75.21

The magnehelic differential pressure gauge, with a measurement range of -500Pa to 30kPa, offers high accuracy and reliable performance for various pressure and vacuum applications. Magnehelic manometer features a durable die-cast aluminum housing, clear calibration, and a magnetic transmission system that eliminates mechanical friction for extended service life.

Measuring Range *

SKU: ATO-DPG-2000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The magnehelic differential pressure gauge is a precision instrument designed for measuring differential pressure, positive pressure, and vacuum across a wide range of applications. Built with robust materials and advanced magnetic transmission technology, it ensures long-term accuracy and durability even in demanding conditions. Below are its key features, specifications, and usage instructions.

Specifications

Model	ATO-EM-2000
Measurement Range	-500 Pa to 30 kPa (selectable ranges available)
Temperature Range	-7°C to 60°C
Rated Air Pressure	-68 kPa to 103 kPa
Overpressure Protection	Rubber overpressure valve opens at approximately 172 kPa
Accuracy	±2% FS at 21°C (varies by model: ±3% for -125 Pa/250 Pa; ±4% for -60 Pa)
Process Connections	Two high-pressure and two low-pressure ports, 1/8" tapered pipe threads
Housing Material	Die-cast aluminum with spray coating
Product Weight	540 g
Dimensions	120 mm × 55 mm

Features

Magnetic Transmission System: The magnehelic pressure meter utilizes a friction-free magnetic mechanism, eliminating wear from traditional gear systems and enhancing lifespan. It also provides vibration resistance, shock protection, and overload safety.
Clear Calibration and High Visibility: The differential pressure gauge features a with sharp calibration marks, ensuring accurate and easy readings under various lighting conditions.
Durable Construction: Made from die-cast aluminum with an imported plastic spray coating, the housing is resistant to rust, bubbling, and corrosion, offering extended durability.
High Accuracy and Stability: With a damping time and no inertial drift, the magnehelic manometer delivers precise measurements. Its hollow aluminum tube design provides strong overload resistance.
Dual Process Connections: Includes two high-pressure and two low-pressure ports with 1/8" tapered pipe threads, located on both the side and back for flexible installation.

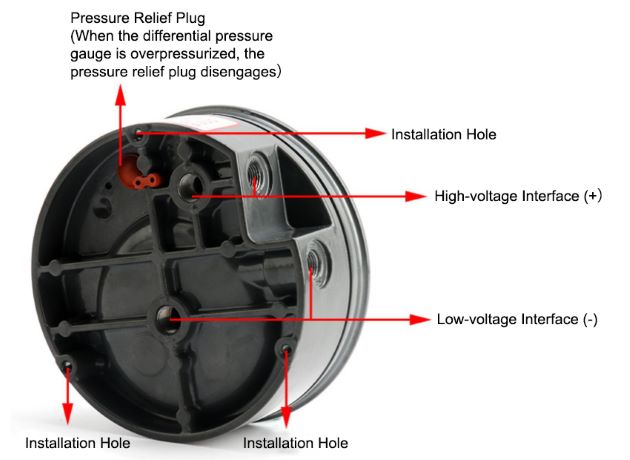

Details

magnehelic differential pressure gauge detail

Dimension(Unit: mm)

magnehelic differential pressure gauge dimension

Application

magnehelic differential pressure gauge application

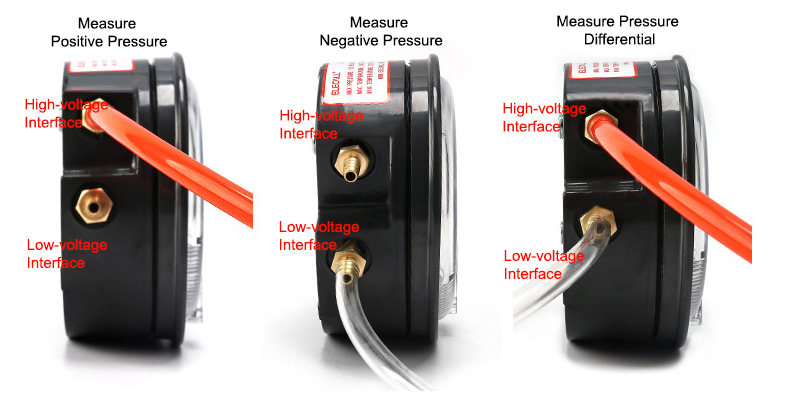

Tips：Instructions for Magnehelic Differential Pressure Gauge Use

Measuring Positive Pressure: Connect the pressure source to one of the high-pressure ports using a tube, and seal the unused high-pressure port. Ensure one or both low-pressure vent ports are open to atmosphere.
Measuring Negative Pressure (Vacuum): Connect the vacuum source to one of the low-pressure ports, and seal the unused low-pressure port. Keep one or both high-pressure vent ports open.
Measuring Differential Pressure: Connect the higher pressure source to a high-pressure port and the lower pressure source to a low-pressure port. Seal any unused ports to ensure accurate differential measurement.

Refer to the installation diagrams for proper port connections and setup to achieve optimal performance.

magnehelic differential pressure gauge use instruction
