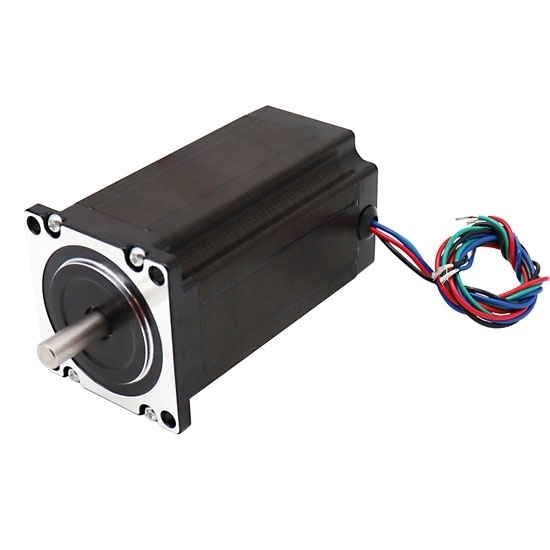

    Nema 23 Stepper Motor, 2 Phase, 3.5A, 2.2N·m

    5 out of 5 based on 1 reviews | Write a review
    $100.99
    High torque Nema 23 hybrid stepper motor for sale, 3.5A, holding torque at 2.2N·m, 2 phase 4 lead wires, shaft size of 8mm and 6.35mm available, motor length 82mm. This permanent magnet stepper motor is used in 3D printer, CNC machine, robot arm and other mechanical equipment, low noise and low price.
    SKU: ATO-STEP-23C350
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Nema 23 bipolar stepper motor used in CNC machine, drawing equipment and sewing machine, robot arm and so on. It is a four-wire connection motor with encoder, wire colors of black, green, red and blue, holding torque at 2.2N·m, step angle accuracy ±5%, no lost step and high precision. ATO cheap stepper motor can be controlled by a voltage of DC 24V ~ 50V or AC 20V ~ 40V digital stepper controller for precise position control.

    Physical Specification

    • Model Number: ATO-FY56EC350A
    • Matched the Driver Model: ATO-FYDM504T
    • Flanged Size: 57 x 57mm (Nema 23)
    • Motor Length: 82mm
    • Shaft Diameter: 8mm/ 6.35mm
    • Number of Leads: 4 wire
    • Weight: 1.2kg

    Electrical Specification

    • Motor Type: Bipolar Stepper
    • Step Angle: 1.8°
    • Rated Current: 3.5A
    • Holding Torque: 2.2 N·m (220 N·cm, 311.5 Oz.in)
    • Phase Resistance: 0.9Ω
    • Phase Inductance: 3mH
    • Rotor Inertia: 520g·cm2

    Dimensions (Unit: mm)

    L=82mm

    Dimensions of Nema 23 2 Phase Hybrid Stepper Motor

    Wiring Diagram

    Wiring Diagram of Nema 23 2 Phase Stepper Motor

    Speed-Torque Curve Diagram

    Speed Torque Curve Diagram of Nema 23 2 Phase Hybrid Stepper Motor

    Tips: What do you need to know about stepper motor?

    1. The stepper motor is used in low-speed occasions-the speed does not exceed 1000 revolutions per minute, and it is best to use between 150-450 RPM, which is most beneficial to the optimized operation and function of the motor. If you want to achieve this kind of control in the use of the motor, you can make the motor work here through the deceleration device, and keep it in this state. When the motor is used, it can achieve high work efficiency, the noise generated is also very low, and the overall performance is relatively good.
    2. The stepping motor is best not to use the full-step state, because the vibration generated during operation will be relatively large. Once the motor's vibration is large, it may cause noise pollution and aggravate the loss of related parts of the motor in daily use, so that the running performance of the motor will gradually deteriorate, and the service life will be shortened to a certain extent.

    Warranty

    360 Days warranty

    Thank you for buying industrial automation products on ATO.com, all products sold by ATO and the partner cover a 360-days-warranty, effective from the date of receiving the products.

    What is covered?

    ATO is responsible for providing free spare parts, free technical support to assist the customer to repair the defective products until the problem is solved.

    What is not covered?

    • Product purchased from anyone other than ATO store or a ATO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than ATO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by ATO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a ATO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
