Nema 23 Stepper Motor Linear Actuator, 2 phase, 3A, 1.2Nm

$169.54

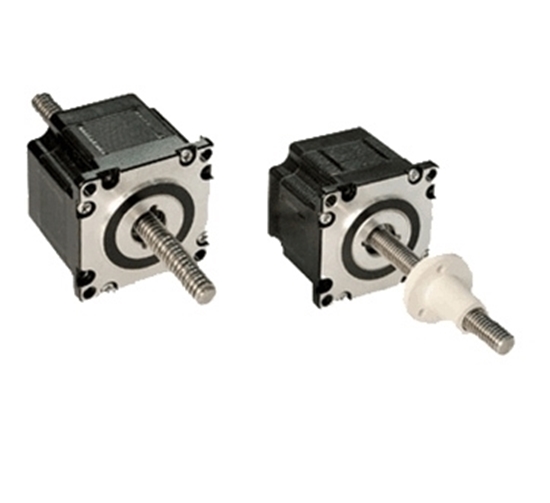

Very compact 2 phase stepper linear actuator in size Nema 23 (57mm) with high positioning speeds, short positioning times and high thrust and drag forces. 1.2 Nm holding torque, non-captive and external linear versions can be delivered.

Motor Type *

External Shaft
Non-Captive Shaft

Motor Screw Lead *

SKU: ATO-STEPL-312

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Nema 23 stepper motor linear actuator is high performance, precision positioning drive unit with 152mm length leadscrew and 2 phase stepper motor. Current per phase 3 amp, holding torque of 1.2 Nm, good quality at low cost.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	57H262-3004AST	57H262-3004GTS
Weight	4 kg
Motor Length	62 mm
Phase	2 phase
Step Angle	1.8°
Rated Current	3 A
Resistance	0.8 Ω
Holding Torque	1.2 Nm
Rotor Inertia	300 g-cm²

Select Leadscrew
Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
0.394	10	0.079	2	0.00039	0.01
0.394	10	0.157	4	0.00079	0.02
0.394	10	0.394	10	0.00197	0.05
Note: Screw of 8mm diameter is made of copper, and the screw of 10mm diameter is made of plastic.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=62mm

2. External shaft style

nema 23 external shaft stepper motor inear actuator dimension

L=62mm

Details

Nema 23 Stepper Motor Linear Actuator Details

Tips: Driving power of stepper motor linear actuator
The operating characteristics of stepper motor linear actuator is closely related with matching driving power. The driving power is to provide the pulse sequence that is sent by numerical control device automatically for each phrase winding according to the required power distribution mode so as to drive the motor rotation. Its control circuit consists of a distributor and a power amplifier.

A series of continuous pulses sent by the numerical control device are allocated to each winding of the stepper motor in a certain order through the distributor, so that each phase winding can be connected to and cut off according to the predetermined control mode. Therefore, we need to determine the working state of the distributor according to the electrified mode of the stepper motor when designing the distributor.
The pulsing signal power of the distributor output is small while the pulse current required by the winding of the stepper motor reaches a few amperes. So the impulse sent by the distributor must be magnified to control the running of the stepper motor.

ATO external stepper linear actuator in this video is 2 phase 4 wire comes in Nema 23 frame size. We will show you how to use PLC connect to the hybrid stepper motor system, and control this external stepper motor linear actuator for simple forward and reverse motion by the pulse and direction command issued by PLC.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Calculation of Lead Screw and Stepper Motor

This video introduces the calculation of stepper motor. You need to know the step angle of the stepper motor and the pitch of the lead screw as well as the number of threads and subdivisions of the driver.

Rotation Angle Control of Stepper Motor

The angle control principle of stepper motor is to control the number of pulse outputs of PLC.

1. The output frequency of PLC is related to the speed of motor.

2. Pay attention to the dip switch on the stepper motor driver, which should match the current of stepper motor, and pay attention to how many pulses control the stepper motor to rotate one circle.

1.8 degree stepper motor teardown & construction display

In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. That is, when a pulse signal is added to the motor, the motor rotates through a step angle. The existence of this linear relationship, coupled with the characteristics of the stepper motor having only periodic errors and no cumulative errors. This makes it very simple to use stepper motors to control the speed, position and other control fields.
