    Nema 17 Stepper Motor Linear Actuator, 2 phase, 2.8V, 1.68A

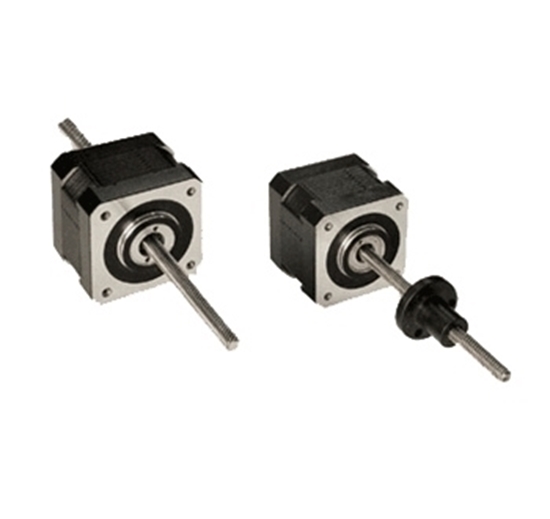

    High Precision 2 phase 4 wires bipolar stepper motor linear actuator comes in Nema 17 compact size, is available in non-captive shaft and external shaft style options. It offers 1.68 amp rated current and 2.8 volt rated voltage, special nut design secure long life operation.
    SKU: ATO-STEPL-28168
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    2.8V, 1.68A Nema 17 Stepper Motor Linear Actuator is a high performance mechanical device, which combines 2-phase Nema 17 stepper motor and lead screw to eliminate coupling. Excellent quality in lower cost, directly sale by manufacturer.

    Stepper Motor Linear Actuator Specification

    Model Type External Shaft Non-Captive Shaft
    42H47-1684AST 42H47-1684GTS
    Weight 4 kg
    Length 47 mm
    Phase 2 phase
    Step Angle 1.8°
    Rated Voltage 2.8 V
    Rated Current 1.68 A
    Resistance 1.65 Ω
    Holding Torque 62 Oz-in
    Number of Leads 4
    Rotor Inertia 68 g-cm2

    Select Leadscrew

    Choose your stepper motor linear actuator screw from one of the available options:

    Screw Diameter Lead Travel Per 1.8 Step
    (in) (mm) (in/rev) (mm/rev) (in/step) (mm/step)
    0.315 8 0.079 2 0.00039 0.01
    0.315 8 0.157 4 0.00079 0.02
    0.315 8 0.315 8 0.00157 0.04
    Note: Screw of 8mm diameter is made of copper.

    Stepper Motor Linear Actuator Dimension (Unit=mm)

    1. Non-captive shaft style

    non captive shaft nema 17 stepper motor linear actuator dimension


    2. External shaft style

    nema 17 external shaft stepper motor linear actuator dimension



    Nema 17 Stepper Motor Linear Actuator Details

    Tips: Advantages of ATO stepper motor linear actuator

    1. It has all the advantages of the traditional DC motor and also cancels the structure of carbon brush and slip ring at the same time.
    2. It can reduce low speed and high power operation and the load of reducer direct drive.
    3. It has small volume, light weight and great power.
    4. It has excellent torque characteristic, good torque performance at middle and low speed, large pull-in torque and small starting current.
    5. It has infinite speed variation, wide range of speed regulation and strong overload capacity.
    6. It has soft start, soft stop, good brake characteristic, which can save the original mechanical brake or electromagnetic brake device.
    7. The efficiency is high, the motor itself has no excitation loss and carbon brush loss, which eliminates the multistage reduction consumption, and the comprehensive electricity saving rate can reach 20%~60%.
    8. It has high reliability, good stability, strong adaptability, simple maintenance.
    9. It is resistant to vibration and has low noise, small vibration, smooth operation, long service life.
    10. It has no radio interference, no spark, especially suitable for explosive sites.
