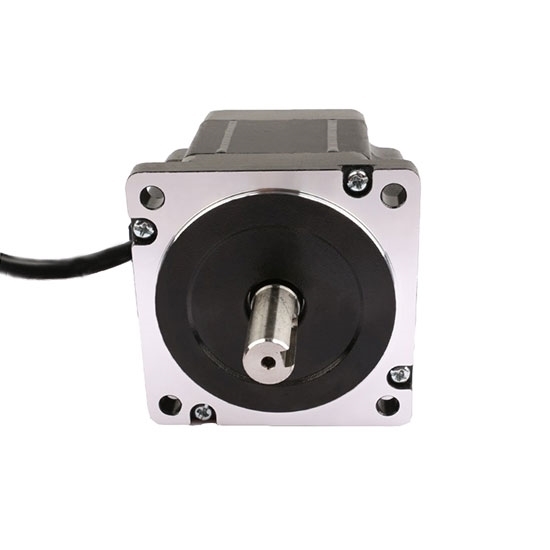

    Nema 34 3-phase Stepper Motor, 3.3A, 1.2 degree, 6 wires

    High torque Nema 34 hybrid stepper motor, 3 phase 6 wires, 1.2 deg. step angle(300 steps/revolution), 3.3A phase current, 7.6Nm holding torque. Low cost, high quality and manufacturer direct sale.
    SKU: ATO-STEP-31263433
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 34 Stepper motor, 7.6Nm holding torque, 3.3A phase curent, 1.2° step angle, manufacturer direct sale.


    Basics Model ATO3126-3306A
    Matched Driver Model ATODSP32207(Click it to see more info)
    Holding torque 7.6Nm
    Current/phase 3.3A
    Resistance 1.8Ω
    Step angle 1.2°
    Rotor inertia 3300g.cm²
    Weight 3.8kg
    Length 126mm
    Motor leads 6
    Technical parameters Step Angle Accuracy ±5%(full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max.(rated current, 2 phase on)
    Ambient Temperature -10℃~+ 50℃
    Insulation Resistance 100MΩ Min 500V DC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.06Max.(450g)
    Shaft Axial Play 0.08Max.(450g)


    nema 34 stepper motor dimension

    Motor Connection

    3 phase stepper motor wiring


    Nema 34 Stepper Motor,1.1A-8A Details

    Tips: Selection of stepper motor: confirming the working environment

    1. Confirm whether the working environment can satisfy the requirements on the specification, including temperature and humidity. The using temperature range of the stepper motor is generally 0~50°C, and its humidity is 20%RH~90%RH; storage environment range is -20°~70°C, and the humidity is 15%RH~95%RH.
    2. If the ambient temperature is high, it is necessary to reduce the current working condition or improve heat dissipation condition or select high temperature resistance motor.
    3. Generally, the stepper motor features UL B-level insulation grade. Considering interior and exterior temperature difference, the surface of hot stable stepper motor can bear 100°C, but it is advised to control it within 80°C.
    4. In case of special situation, it is necessary to strictly control the rise in temperature of motor. The stepper motor with large torque can be used to substantially reduce the working current to reduce the heating quantity of the motor.
    5. For common stepper motor, there are no protection measures. It cannot be used at dust environment.
    6. Stepper motor should not be in humidity and free of collision.
