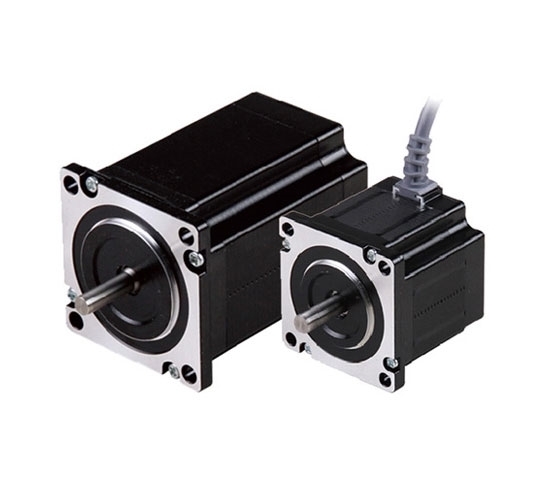

    Nema 24 Stepper Motor, 3A, 1.8 degree, 2 phase 4 wires

    5 out of 5 based on 1 reviews | Write a review
    $84.62
    2-phase 4-wire Nema 24 stepper motor with high torque, 2.5Nm holding torque, 1.8 deg. step angle(200 steps/rev), 3A phase current, brand new and direct sales by manufacturer.
    *
    SKU: ATO-STEP-2882403
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 24 Stepper motor, 1.8 degree, 2.5Nm in 88mm, phase current 3A and resistance 0.6Ω, manufacturer direct sale.

    Specification

    Basics Model ATO288-3004A
    Matched Driver Model ATODSP86(Click it to see more info)
    Holding torque 2.5Nm
    Current/phase 3A
    Resistance 0.6Ω
    Step angle 1.8 °
    Rotor inertia 1600g.cm²
    Weight 2.4kg
    Length 88mm
    Motor leads 4
    Technical parameters Step Angle Accuracy ±5%(full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max.(rated current, 2 phase on)
    Ambient Temperature -10℃~+ 50℃
    Insulation Resistance 100MΩ Min 500V DC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.06Max.(450g)
    Shaft Axial Play 0.08Max.(450g)

    Dimensions

    stepper motor dimension L60

    Motor Connection

    Motor connection

    Tips: Application of stepper motor in packaging film feeding

    As for packaging machine integrating bag making, filling and sealing, it is required to feed the plastic film according to the fixed position and length, no matter intermediate or continuous feed, which can be completed by using stepper motor.

    1. Intermediate packing machine
      The stepper motor is used to feed film in the intermediate packing machine, making the reliability enhance. The packaging film was fed with crank-link mechanism and intermediate drawstring before, featured with complicated structure and difficulty in adjustment. Especially, when it’s necessary to replace the product, it is difficult to make adjustment and the packing film is wasted a lot. The stepper motor and drawstring idler wheel are used to connect the tape directly, thus the structure is simplified and it is convenient to make adjustment, which can be realized by only pressing the button on the control panel. In this way, the time and packing material is saved.
    2. Continuous packing machine
      As for continuous packing machine, the stepper motor rotates continuously. The packing film is conveyed evenly and continuously. When the bag length is changed, it only can be realized by pressing the switch.

    How to control a stepper motor using a PLC and HMI?
    This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

    Common Stepper Motor Troubleshooting Problems and Tips
    In this video, 9 common problems that can occur with stepper motors are discussed, and expert advice is provided for diagnosing and effectively resolving these problems. If you have ever experienced problems with your stepper motor or want to be prepared for any future problems, this video is a must watch.

    Controlling Stepper Motors with HMI and PLC for Fixed Cycle Power Delivery
    In this video, we explore the step-by-step process of configuring an HMI and PLC to synchronize and manage specific cycle lengths of stepper motors, ensuring accurate power delivery.

    VFD Two-Wire Control Wiring with Push Button for Forward Motor

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

    In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. That is, when a pulse signal is added to the motor, the motor rotates through a step angle. The existence of this linear relationship, coupled with the characteristics of the stepper motor having only periodic errors and no cumulative errors. This makes it very simple to use stepper motors to control the speed, position and other control fields.
