Digital Stepper Driver 2-6A for Nema 23, 34, 42 Stepper Motor

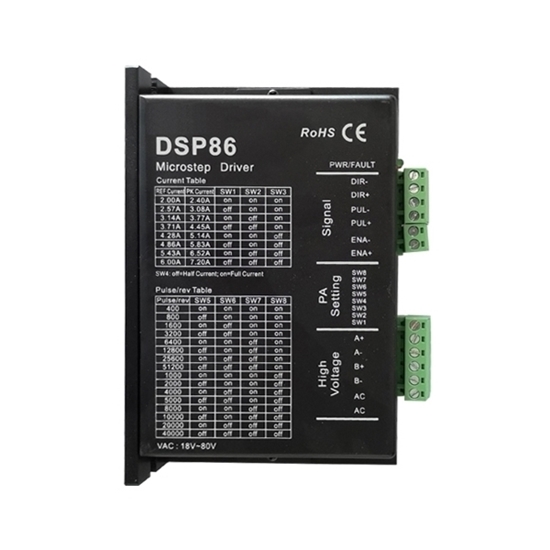

Picture of Digital Stepper Driver 2-6A for Nema 23, 34, 42 Stepper Motor
Picture of Digital Stepper Driver 2-6A for Nema 23, 34, 42 Stepper Motor

Digital Stepper Driver 2-6A for Nema 23, 34, 42 Stepper Motor

5 out of 5 based on 1 reviews | Write a review
$163.08
ATODSP86 is digital 2-phase stepper motor driver, it is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machine and so on. Capable of driving Nema 23, 34, 42 open-loop hybrid 2 phase stepper motors.
*
SKU: ATO-STEP-D26A2334
30-day Returns
Free Shipping
Delivery date: 6-12 days

2-phase digital stepper driver, 18-80V AC, 2-6A for Nema 23, 34, 42 2 phase stepper motor, manufacturer direct sale.

Features:

  • Low motor vibration, low noise, no loss of step
  • Optical isolation, difference signal input.
  • Automatic motor parameter identification.
  • Vector control, ultra-low heating.
  • Offer 12-24v control signal interface.
  • Step and direction control.
  • Fast response, no delay and zero setting time.
  • Much lower cost than traditional servo systems.
  • No torque reservation.

Specifications

Basics Information
Model ATODSP86
Size 151 x 97 x 48 mm
Phase 2
Material Stainless Steel
Mounting Hole Distance 143 mm
Max Input Power 300 W
Input Voltage Range 18-80V AC
Output Current 2-6 A
Control Mode Step & Direction
Function Description
Functions Operation Instructions
Signal Interface PUL PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
DIR DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
ENA ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
Motor Interface A A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
B B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
When the A and B two phase windings are switched, the motor direction is reversed
Indicator Light 1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.

Switch of Options

Peak Output Current REF Output Current SW1 SW2 SW3
2.00A 2.40A ON ON ON
2.57A 3.08A OFF ON ON
3.14A 3.77A ON OFF ON
3.71A 4.45A OFF OFF ON
4.28A 5.14A ON ON OFF
4.86A 5.83A OFF ON OFF
5.43A 6.52A ON OFF OFF
6.00A 7.20A OFF OFF OFF

Micro Step Selection

PUL/REV SW5 SW6 SW7 SW8
400 ON ON ON ON
800 OFF ON ON ON
1600 ON OFF ON ON
3200 OFF OFF ON ON
6400 ON ON OFF ON
12800 OFF ON OFF ON
25600 ON OFF OFF ON
51200 OFF OFF OFF ON
1000 ON ON ON OFF
2000 OFF ON ON OFF
4000 ON OFF ON OFF
5000 OFF OFF ON OFF
8000 ON ON OFF OFF
10000 OFF ON OFF OFF
20000 ON OFF OFF OFF
40000 OFF OFF OFF OFF

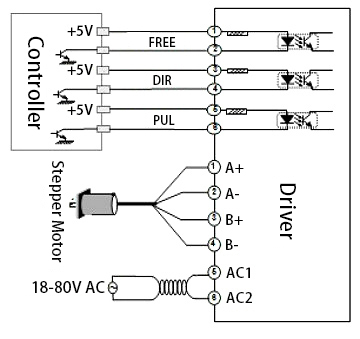

Driver Wiring Diagram
DSP48 Wiring
Driver Wiring Diagram
Installation Size (Unit: mm)
Dsp86 dimension

Details

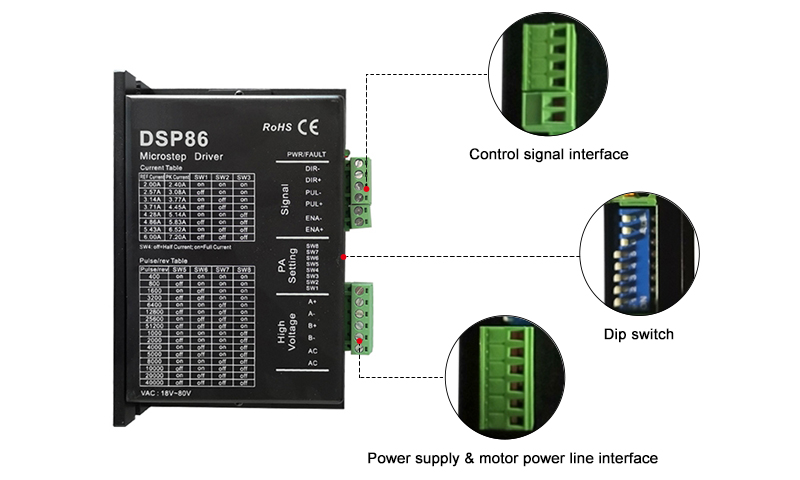

 2 Phase Stepper Motor Driver 2-6A Details

Tips: Single-shaft stepper motor driver
The stepper motor driver drives the stepper motor using the point pulse signal received from the controller. It is in the middle of the controlling unit: Controller - motor driver - stepper motor. Stepper motor drivers are divided into single-shaft driver and double-shaft driver. We usually use a single-shaft driver. One single-shaft stepper motor driver transfers processed pulse signals to another stepper motor while one double-shaft stepper motor driver transfers processed pulse signals to another two stepper motors. That is, a double-shaft driver driving two stepper motors is rare on the current market.

Existing reviews of Digital Stepper Driver 2-6A for Nema 23, 34, 42 Stepper Motor
Work prefectly
I bought two 2-6A digital stepper drivers. So far, they can drive stepper motors smoothly and are easy to use. Exactly the stepper driver I want.
From: Hess | Date: 05/07/2021
Was this review helpful? Yes No (0/0)
Write your review for Digital Stepper Driver 2-6A for Nema 23, 34, 42 Stepper Motor
  • Only registered users can write reviews
  • Bad
  • Excellent
Related products
Nema 23 Stepper Motor, 4.2A, 1.8 degree, 2 phase 4 wires

Nema 23 Stepper Motor, 4.2A, 1.8 degree, 2 phase 4 wires

$88.08
SKU: ATO-STEP-21002305
Favorable price Nema 23 stepper motor, 3.0Nm holding torque, 4.2A phase current, 1.8 deg. step angle(200 steps/revolution), high quality and manufacturer direct sale.
Quick View

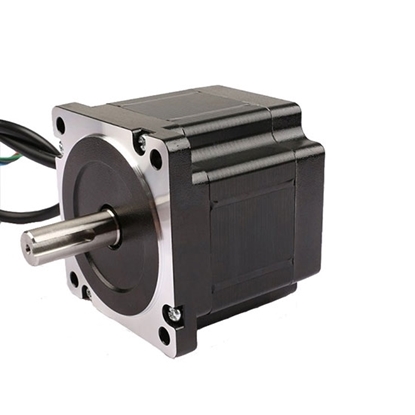

Nema 34 Stepper Motor, 1.8 degree, 3A, 2 phase 4 wires
