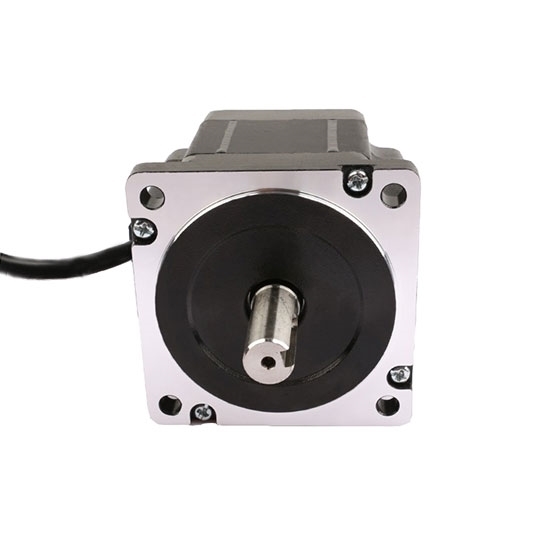

    Nema 34 Stepper Motor, 3.3A, 1.2 degree, 3 phase 6 wires

    Cheap Nema 34 Hybrid Stepper motor, phase current 3.3A, holding torque of 5.4 Nm, 3 phase 6 wires, 1.2 deg. step angle, brand new in perfect working condition and manufacturer direct sale.
    SKU: ATO-STEP-30963433
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 34 Stepper motor, 5.4Nm holding torque, 3.3A phase curent, 1.2° step angle, manufacturer direct sale.


    Basics Model ATO3096-3306A
    Matched Driver Model ATODSP32207(Click it to see more info)
    Holding torque 5.4Nm
    Current/phase 3.3A
    Resistance 1.3Ω
    Step angle 1.2°
    Rotor inertia 2200g.cm²
    Weight 2.8kg
    Length 96mm
    Motor leads 6
    Technical parameters Step Angle Accuracy ±5%(full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max.(rated current, 2 phase on)
    Ambient Temperature -10℃~+ 50℃
    Insulation Resistance 100MΩ Min 500V DC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.06Max.(450g)
    Shaft Axial Play 0.08Max.(450g)


    nema 34 stepper motor dimension

    Motor Connection

    3 phase stepper motor wiring


    Nema 34 Stepper Motor,1.1A-8A Details

    Tips: Application range of stepper motor

    Stepper motor can achieve the correct positioning operation, controlling rotary angle and speed by pulse signal, and it is widely used at all kinds of devices. Stepper motor, just like second hand of a clock, rotates a certain angle each time. The angle is called basic step angle. Stepper motor can realize high torque in small size. Therefore, stepper motor via its acceleration and responsiveness plays an important role in the applications that require frequent starting and stopping. When stopping, stepper motor is still holding torque and can ensure the stopping time without mechanical brake. Compared to servo motor in the same size, stepper motor can drive larger inertia load. Now the application area of stepper motors is wider and wider. It is widely used in machinery, electronics, textile and other industries and the brief introduction is as below.

    1. Widely used in ATM machines, printing machines, engraving machine, photo machine, spraying equipment, medical instruments and equipment, computer peripherals and mass storage equipment, precision instruments, industrial control systems, office automation, robotics and other fields. It is especially suitable for applications that require smooth operation, low noise, fast response, long service life and high output torque.
    2. Stepper motors are mainly applied to the occasions with the requirement of positioning, such as wire cutting, tufting machine, packaging machine, etc.
    3. Stepper motors also have a wide use in the textile machinery like computer embroidery machines, which features low holding torque, fast response for frequent start, low running noise, stable operation, good control performance and low overall cost.
