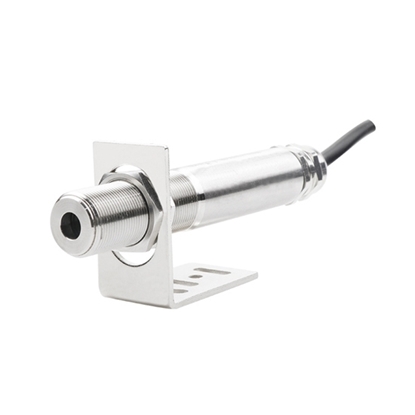

High Temperature Infrared Sensor, Non-Contact, 4-20mA Output

Industrial high temperature infrared sensor, non-contact with -50℃~300℃ measuring range, infrared measurement, M12 connector, millisecond response speed, can monitor temperature continuously, small in size, easy to install, suitable for temperature monitoring in steel, glass and plastic production areas.

Specification

• Model: ATO-BRW600-402
• Measurement Range: -50℃ ~ 300℃ (-58 ~ 5720F)
• Measuring Distance: 10 ~ 30 cm
• Power Supply: 24VDC 50mA Max
• Accuracy: ±2% or ±2℃
• Emissivity: 0.95
• Signal Output: 4-20mA
• Working Temperature: 50 ℃
• Response Time: 500 ms
• Response Wavelength: 8 - 14um
• Maximum Current: < 50mA
• Storage Temperature: -20 ~ 50℃
• Ambient Temperature: 0 ~ 50℃ (Better measurement effect at 0~ 50℃)
• Relative Humidity: 10 ~ 95%RH (No Condensation)
• Object Distance Than: 16 : 1
• Protection Grade: IP65
• Dimension: L168mm * φ50mm
• Electrical Connection: m12 Connector
• Shell Material: Aluminium Alloy + Stainless Steel
• Weight: 1kg

Dimensions & Wiring

Unit: mm

Tips for installing the non-contact infrared temperature sensor

1. According to the measurement requirements and the measurement coefficient of the infrared temperature sensor, select the appropriate distance and orientation, and fix the infrared temperature probe and the adjustment bracket well.
2. Adjust the measurement direction of the probe so that the measured object is roughly facing the observation site.
3. Lock the orientation of the adjustment bracket.
