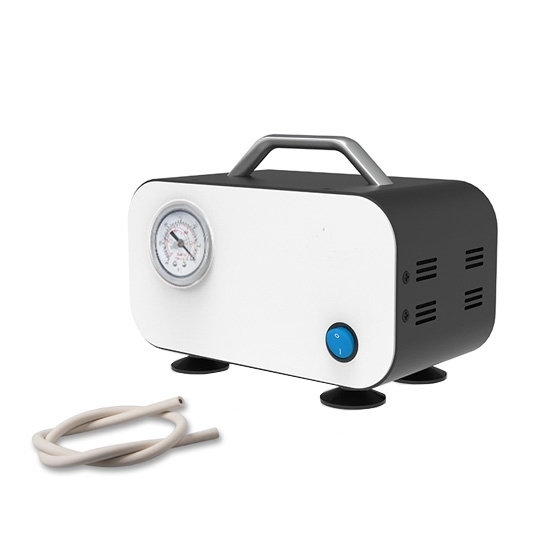

    Oil Free Diaphragm Vacuum Pump 10L/min for Laboratory

    5 out of 5 based on 1 reviews | Write a review
    Small laboratory oilless diaphragm vacuum pump can work without need of pump oil, with flow rate 10L / 15L per min, and correspondingly ultimate vacuum pressure 0.075MPa / 0.08MPa, quiet and easy operation, helpful to create a clean and dry vacuum condition for lab experiement.
    SKU: ATO-VP-1015L
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The oil-free diaphragm vacuum pump is available in 10L/min and 15L/min flow rate, and the corresponding ultimate vacuum is 0.075MPa and 0.08MPa. Featuring small size, low noise, easy operation, stable performance and affordable price, the vacuum pump is mainly used for vacuum filtration and degassing to creat a clean and dry environment, which guarantee the media not to be polluted in the laboratory.


    Model ATO-VP-10L ATO-VP-15L
    Type Negative pressure
    Flow Rate 10L/min 15L/min
    Ultimate Pressure 0.075MPa 0.08MPa
    Noise Level <40dB <45dB
    Motor Power 20W 30W
    Voltage 110-220V AC 110-220V AC
    Valve Diaphragm NBR NBR
    Outlet Diameter 7mm
    Protection Over load, over temperature and short circuit protection
    Dimension 192x100x135mm
    Weight 1.58kg

    Vacuum Pump Details

    Lab Oilless Diaphragm Vacuum Pump Details

    Tips: What is an oil free vacuum pump?

    Oil-free vacuum pump is a mechanical vacuum pump that can work without any oil for lubrication. Compared with oil-operated vacuum pumps, oil-free vacuum pumps have a low degree of vacuum and a small amount of air extraction, but are small in size, easy to install, simple to maintain, easy to move, do not generate oil fume, and do not pollute the environment. Therefore, the oilless vacuum pump is especially suitable for laboratories with higher requirements. It is also one of the most commonly prepared equipment in the laboratory.

    Therefore, when purchasing an oil-free vacuum pump, you must first determine the required vacuum pressure. If the demand for vacuum pressure is high, the selected vacuum pump must be higher than the required vacuum pressure; otherwise it will not meet the requirements of vacuuming. The second is the pumping flow rate of the oil-free vacuum pump, which must be slightly greater than the required flow rate when selecting the pump, so that it can better meet the needs. Finally, see if the extracted gas is corrosive. Corrosive gas will corrode the pump, so the vacuum pump with corrosion resistance will be chosen.

    Existing reviews of Oil Free Diaphragm Vacuum Pump 10L/min for Laboratory
    Run fast
    This oilless vacuum pump is well built and heavier than I expected. I used it to vacuum my auto AC and it went to about 27 mg in less than 2 minutes.  If left for a half and hour it goes down to about 29.5 mg, provided you don't have any air leaks.
