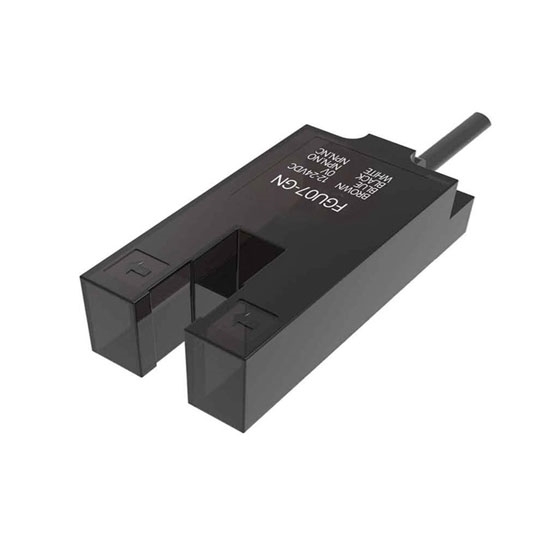

Photoelectric Fork Sensor, Photo Eye Sensor, 7-30mm

Write a review

$60.66

The photoelectric fork sensor for sale. Built-in intelligent chip ensures precise detection and rapid response. The adjustable 7-30mm detection range adapts to various application scenarios. Featuring IP66 protection rating, it's completely dustproof and resistant to water flow impact. The robust structure and high-quality wiring provide reliable performance, while multiple protections (including short circuit, reverse polarity, and overvoltage protection) safeguard both the product and connected equipment.

Output Type *
Detection Distance *

SKU: ATO-PHOS-FGU

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy photoelectric fork sensor online. Equipped with an intelligent processing chip for precise, real-time detection. The IP66 enclosure ensures total dust sealing and protection against powerful water spray.

Specification

Model	NPN Output	ATO-FGU07-GN	ATO-FGU10-N	ATO-FGU15-N	ATO-FGU30-N
	PNP Output	ATO-FGU07-GP	ATO-FGU10-P	ATO-FGU15-P	ATO-FGU30-P
Sensing Distance		7 mm	10 mm	15 mm	30 mm
Adjustment Method		Potentiometer Adjustment	Non-adjustable	Non-adjustable	Potentiometer Adjustment
Light Source		940 nm Non-modulated Light
Operating Voltage		12-24 VDC
Current Consumption		15 mA Max
Load Current		50 mA Max at DC 24 V
Output Mode		N=NPN.NO&NC; P=PNP.NO&NC
Protection Circuit		Reverse Polarity Protection
Response Time		0.3 ms Max
Isolation Resistance		20MQmin.(DC500v)
Withstand Voltage		AC1000V 60Hz for 60 Sec
Operating Temperature		-10℃ ~ +45℃(No frosting or icing)
Operating Humidity		20% ~ 85% RH
Storage Temperature		-25℃ ~ +70℃(No frosting or icing)
Storage Humidity		20% ~ 85% RH
IP Rating		IP66
Housing Material		ABS
Cable Type		4-core cable (Ø 2.6 mm)
Weight		100g
Operation Indicator		Red LED (A): On when powered, off in action; Without A: On when activated, off when powered.

Feature

Built-in intelligent chip for precise detection.
High-precision photoelectric fork sensor delivering accurate measurements.
Rapid-response design enables fast signal processing.
Adjustable 7-30mm sensing range for versatile photo fork sensor applications.
IP66 protection provides full dustproofing and resistance to water jets.
Rugged photoeye fork sensor construction with quality wiring.
Multi-protection features (short-circuit, reverse-polarity, overvoltage) ensure safe operation.
Mini photoelectric fork sensor safeguarding connected equipment.
Premium components support long-term industrial use.
Compact design allows easy system integration.

Size (unit: mm)

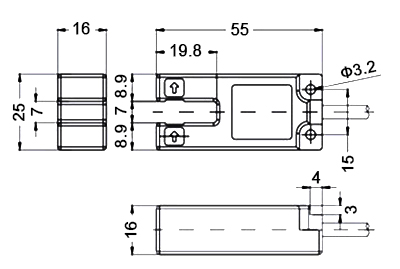

FGU07

Photoelectric fork sensor size

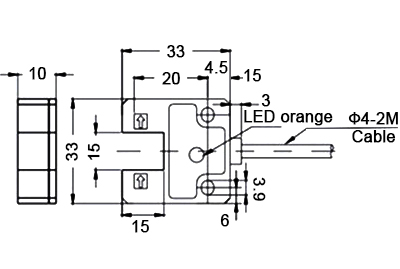

FGU10

Photo fork sensor size

FGU15

Photoelectric fork sensor size

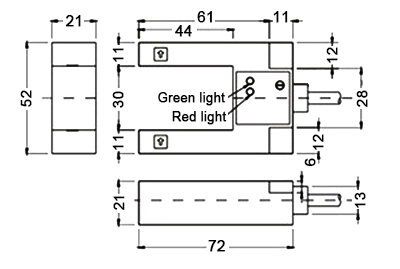

FGU30

Photoelectric fork sensor size

Wiring

Photoelectric fork sensor wiring

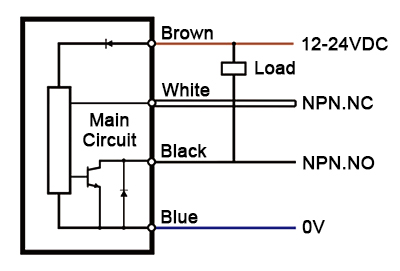

NPN Output

Photoelectric fork sensor wiring

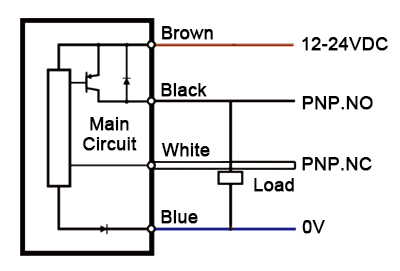

PNP Output

Photoelectric fork sensor wiring

Application

background suppression diffuse fork photo sensor application

Tips: What precautions should be taken when using a photoelectric fork sensor?

Do not use the photoelectric fork sensor in open outdoor environments or areas exposed to water splashes; avoid outdoor use as much as possible.
Do not route its wiring in the same conduit as power or high-voltage lines; wiring should be separated.
Do not pull the power cable of the photo sensor with excessive force.
Do not overtighten during installation; use washers when tightening.
Do not use mini photoelectric sensor in locations containing corrosive substances.
Do not strike the sensing surface with hard objects.
