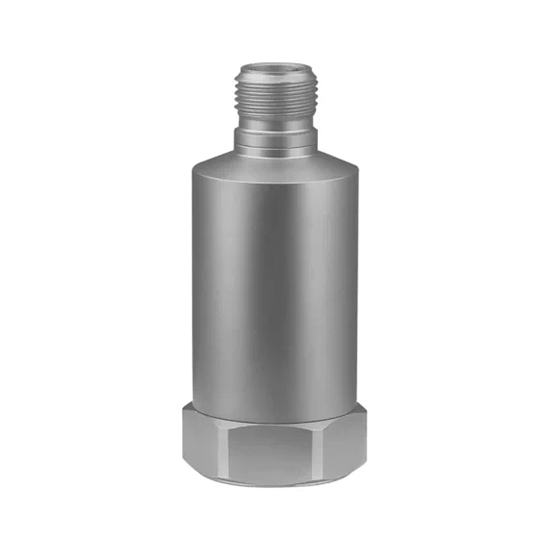

Isolated IEPE Accelerometer Sensor, ±5g/±15g/±100g

Write a review

$419.68

Isolated IEPE accelerometer sensor with ±5g/±15g/±100g ranges, featuring built-in IEPE circuit, dual-layer shielding, low impedance output, laser welded sealing, and strong anti-interference performance for industrial vibration monitoring.

Capacity *

SKU: ATO-IAS-KT123

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Isolated IEPE accelerometer sensor, ±5g/±15g/±100g, integrates a built-in IEPE circuit, dual-layer shielding, and low impedance output for stable vibration measurement. Featuring piezoelectric ceramic sensing and laser welded stainless steel housing, it offers excellent anti-interference performance and reliable protection in industrial environments.

Specification

Model		ATO-KT-02	ATO-KT-03	ATO-KT-01
Dynamic Performance	Measurement Range	±5g	±15g	±100g
	Sensitivity	~1000 mV/g	~100 mV/g	~50 mV/g
	Frequency Response	1–2000 Hz (±5%)	1–4000 Hz (±5%)	1–4000 Hz (±5%)
	Mounted Resonance Frequency	15 kHz	18 kHz	18 kHz
	Resolution	0.05 mg	0.5 mg	1 mg
	Non-linearity	≤1%
	Transverse Sensitivity	≤5%
Environmental Specification	Shock Limit	1000g	2000g	2000g
	Operating Temperature	-40–120℃
	Sealing Performance	Laser Welding
Electrical Specification	Supply Voltage	18–28 VDC	5 VDC	18–28 VDC
	Bias Voltage	8–12 V	2.5 V	8–12 V
	Constant Current Supply	2–10 mA
	Output Impedance	≤100 Ω
	Insulation Resistance to Ground	≥10⁸Ω
Structure	Output Connector	M12 2-pin	M12 2-pin	C5015 2-pin
	Weight	130 g	42 g	82 g
	Housing Material	Stainless Steel
	Sensing Element	Piezoelectric Ceramic
	Element Structure	Shear Type
	Mounting Type	M5

Feature

Wide Measurement Range Options: Isolated IEPE accelerometer sensor is available in ±5g, ±15g, and ±100g ranges to meet different vibration measurement requirements.
Built-in IEPE Circuit: Integrated IEPE electronics provide stable signal conditioning and simplify connection with vibration monitoring systems.
Excellent Anti-Interference Performance: Dual-layer shielding and low impedance voltage output improve noise resistance, supporting reliable signal transmission over long distances.
High-Performance Piezoelectric Sensing: IEPE accelerometer sensor is equipped with piezoelectric ceramic sensing elements for accurate and stable vibration detection.
Durable Sealed Structure: Laser welded stainless steel housing provides waterproof, dustproof, and oil-resistant protection for harsh industrial environments.
Compact Industrial Design: Featuring an M5 mounting type and lightweight structure, the piezoelectric accelerometer sensor can be easily installed on various mechanical equipment for vibration monitoring.

Size (unit: mm)

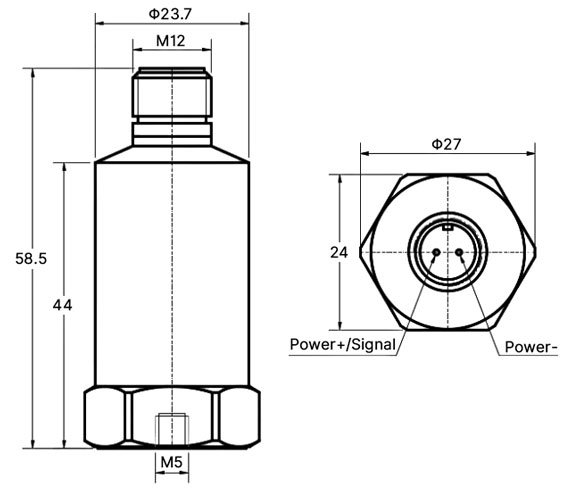

ATO-KT-02

Piezoelectric accelerometer sensor size 5g

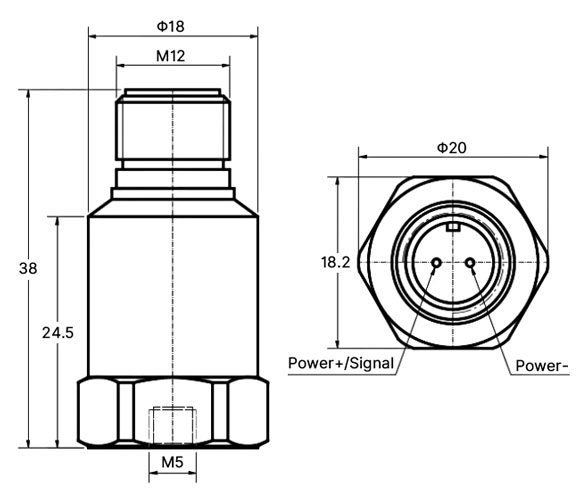

ATO-KT-03

Piezoelectric accelerometer sensor size 15g

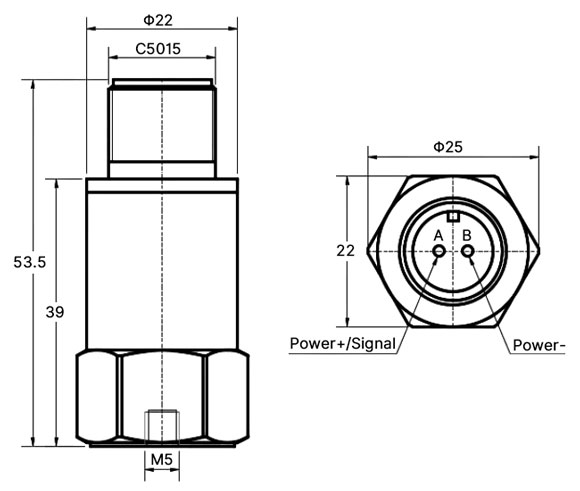

ATO-KT-01

Temperature Chart

Piezoelectric accelerometer sensor temperature

Application

Piezoelectric accelerometer 5 to 100g application diagrams

Tips: How to use IEPE accelerometer sensor?

Connect the IEPE accelerometer sensor to a compatible data acquisition system or vibration monitoring instrument with IEPE power supply. Ensure the sensor is securely mounted on the measured equipment using the M5 mounting interface for accurate vibration signal acquisition.
Configure the measurement parameters according to the sensor specifications. Select the appropriate measurement range (±5g, ±15g, or ±100g), set the sensitivity, and adjust the sampling rate based on the vibration frequency and application requirements.
Collect and analyze vibration data through the system output. The built-in IEPE circuit and low impedance voltage output provide stable signal transmission with strong anti-interference performance, making the sensor suitable for long-distance vibration monitoring.
Maintain proper installation conditions to ensure measurement accuracy. Avoid loose mounting, excessive mechanical impact, or operation beyond the specified range. The laser welded sealed housing provides waterproof, dustproof, and oil-resistant protection for reliable performance in industrial environments.
