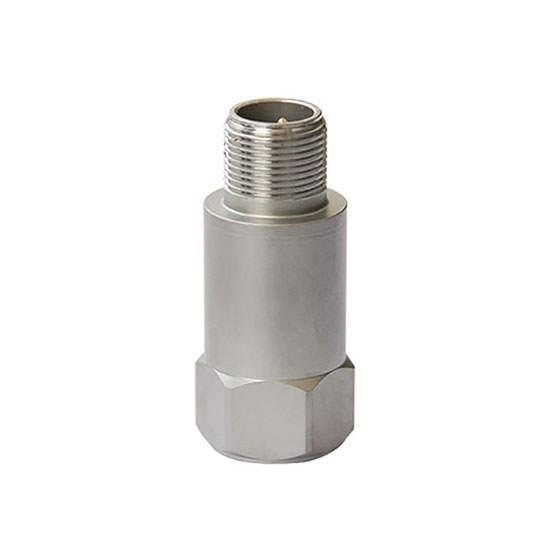

Piezoelectric Accelerometer Sensor, 50-5g/100-50g

$419.68
High-performance piezoelectric accelerometer sensors, available in two measurement ranges of 50-5g and 100-50g, suitable for different application scenarios. Accurate and reliable motion detection, the piezoelectric accelerometer has high sensitivity, stability and accuracy, ideal for industrial applications.
*
*
SKU: ATO-PAS-KT22
30-day Returns
Free Shipping
Delivery date: 6-12 days

A piezoelectric accelerometer sensor is a device that converts mechanical vibrations into electrical signals. This model of piezoelectric accelerometer has a measuring range of 50-5g and 100-50g. It generates an electric charge through the deformation of a piezoelectric crystal, which is converted into acceleration information, and the mounting method can be selected from M5 thread, M6 thread, M8 thread, and magnetic holder, which is compact, lightweight, and highly reliable, and can realize accurate monitoring of vibration and acceleration.

Parameters

Static Indicator
Model ATO-KT22
Measuring Range 50-5g, 100-50g (optional)
Output Range ±5V
Sensitivity ±5V/range
Frequency Range 1~4000Hz
Polarity Forward
Operating Temperature -20℃~80℃
Protection Class IP67
Electrical Indicator
Power Supply Method 2-10mA, 18~28VDC
Constant Current 2~10mA
Bottom Insulation Impedance >108Ω
Output Impedance <100Ω
Physical Parameters
Case Material 304 stainless steel
Weight ~82g
Mounting M5 thread, M6 thread, M8 thread, magnetic holder (optional)
Mounting Torque 25N.M
Piezo Material PZT-5
Dimension φ25*54mm
Output Method M12*1 two cores
Wiring Method A: Power, B: Output
Structure Plane shear
Attachment
Sensor Certificate Calibration parameters
Mounting Screws 1pc
Two-core Wire 4m*1


Feature

  • Accelerometer sensor uses the positive piezoelectric effect of piezoelectric material and has its own internal charge amplifier.
  • Sensor noise is small, anti-interference ability is strong, suitable for long-distance measurement.
  • Suitable for permanent installation and long-term online monitoring.
  • Industrial accelerometer sensors are stainless steel structure, double shielding (isolation), sealed laser welding (waterproof, anti-oil).
  • Piezoelectric accelerometer according to the site requirements to provide flexible installation and output mode.

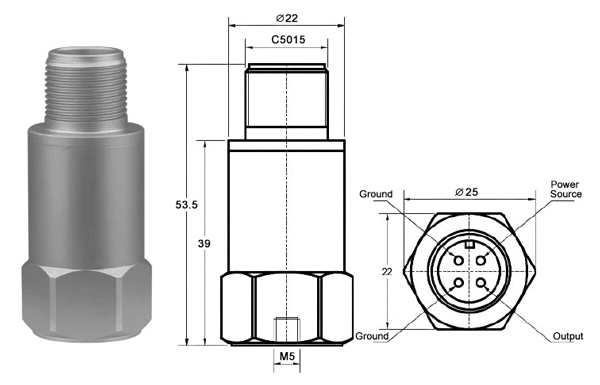

Dimension (unit: mm)

Piezoelectric accelerometer 5 to 100g size

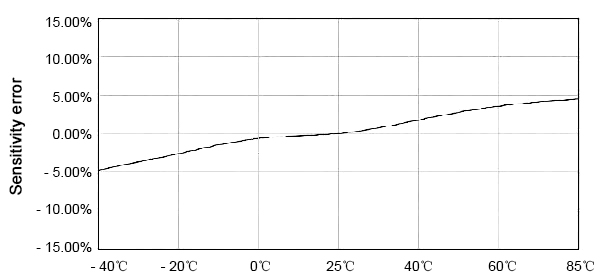

Temperature Chart

Piezoelectric accelerometer sensor temperature chart

Application

Piezoelectric accelerometer 5 to 100g application diagrams

Tips: How to Use Piezoelectric Accelerometer Sensor 50-5g, 100-50g?

  • The piezoelectric accelerometer sensor is a sensor that measures acceleration for a wide range of applications. First, connect the Piezoelectric accelerometer to a supported data acquisition system. Make sure the sensor's range is set between 50-5g or 100-50g before collecting data.
  • Next, configure the sensitivity and sampling rate of the piezoelectric accelerometer according to system requirements. By reading the sensor output, you can acquire acceleration data. When using piezoelectric accelerometers, consider vibration frequency and environmental conditions to optimize performance.
  • Finally, analyze the data to obtain informat ion about changes in acceleration. Ensure that you follow the documentation and specifications provided by the accelerometer manufacturer to ensure accuracy and reliability.
