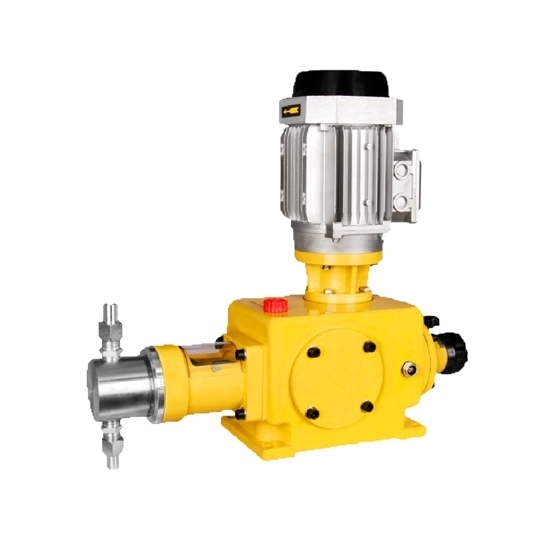

    Plunger Dosing Pump, 10 L/h Flow

    Plunger dosing pump for sale at economical price, with 10 L/h flow, optional 380V, 220V, 110V, 420V voltage, PVC or stainless steel pump head, 550W/750W motor power. This plunger metering pump is used for precise and controlled dosing of liquids or chemicals in water treatment, chemical processing and pharmaceutical manufacturing.
    SKU: ATO-PDP-10F
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Plunger dosing metering pump is a device used to accurately measure and deliver liquids. It is commonly used in industrial fields, especially fluid transfer applications that require high precision and controllability, such as chemical processing, water treatment, food processing, and pharmaceuticals.


    Model ATO-DZ-Z10/25(20)
    Flow 10L/h
    Motor Voltage (Optional) 380V 50Hz (Default), 220V, 110V, 420V
    Motor Power (Optional) 550W 750W
    Pressure 20Mpa 25Mpa
    Plunger Diameter 10mm
    Stroke 25mm
    Pump Speed 96rpm
    Pump Head Material (Optional) 304 Stainless Steel (Default), 316 Stainless Steel, 316L Stainless Steel
    Metering Precision ±1%
    Medium Viscosity 0~800mm2/s
    Transport Medium Temperature Below 450℃
    Inlet & Outlet Diameter 6mm (with tube)
    Weight 42kg

    Dimension (Unit: mm)

    Plunger metering dosing pump dimension

    Plunger Dosing Pump Working Principle

    Through the reciprocating motion of the plunger, the working medium is directly sucked in or discharged. Since both the plunger and seal are in direct contact with the medium, choosing a jointly made plunger material and seal form can ensure that the pump has more ideal performance during operation.

    Plunger dosing pump working principle

    Tips: What is a plunger dosing pump?

    A plunger dosing pump is a type of positive displacement pump used to accurately and precisely deliver small volumes of liquids in various industrial applications. It operates by using a reciprocating plunger or piston to push a fixed volume of liquid through a discharge line. Plunger dosing pumps are favored for their ability to maintain consistent flow rates and dosing accuracy, making them suitable for tasks like chemical injection, water treatment, and dosing of additives in manufacturing processes.

    These plunger metering pumps are known for their durability and reliability, making them essential in applications where precise control of fluid volume is critical. Plunger dosing pumps are often used in industries like agriculture, pharmaceuticals, and oil and gas, where chemicals or additives must be injected with precision. They are capable of handling a wide range of fluids, including corrosive and viscous substances, thanks to their robust design.
