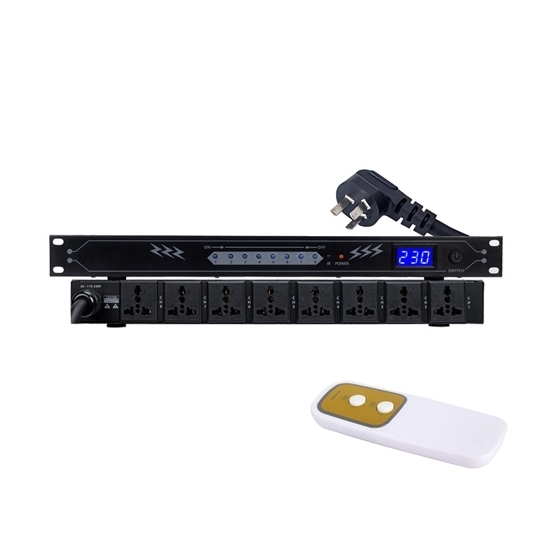

Power Sequencer with Remote, 1.5s Delay

ATO remote power sequencer is an excellent helper for powering professional equipment: with a total power of 6000W, 8/10 independent channels (each with a delay of approximately 1.5 seconds), it supports a wide voltage range of 110V-240V. The output capacity of 10A per channel and 30A in total meets the power supply needs of multiple devices. Power sequencer controller is equipped with phosphor bronze universal sockets, compatible with various types of plugs. The 13mm thickened flame-retardant cable and wide-spacing sockets not only avoid the risk of overheating but also facilitate the simultaneous insertion of large plugs. Power supply sequencer is paired with a blue screen for real-time voltage display, plus a remote control and receiver extension cable design. Even when installed in a closed cabinet, it allows for easy control of devices, making it suitable for various professional occasions such as audio, broadcasting, and audio-visual applications.

Specification

Features

• Convenient control experience: Equipped with a remote control, the receiving extension cord can be pulled out and placed outside the cabinet, making it easy to control both when installed in a closed cabinet or for long-distance operation, combined with a blue screen for real-time voltage display.
• Safe and reliable: Phosphor bronze universal socket of power sequencer is compatible with global plugs. It features a 13mm thickened flame-retardant power cord and a flame-retardant shell, effectively preventing overload and overheating. Equipped with a memory switch to prevent damage to equipment when power is restored after a power outage.
• Practical detail design: wide-spaced sockets facilitate plugging and unplugging large plugs; 480×170×50mm standard cabinet size saves installation space.
• Intelligent delay protection: Each outlet starts/closes with a 1.5-second delay, avoiding current impact caused by simultaneous start and stop of equipment and extending the service life of the equipment.
• Powerful Power Supply and Wide Compatibility: Remote power sequencer's total carrying power of 6000W, supporting 110V-240V wide voltage input, single-channel 10A, total 30A output, 8/10 independent channels to meet the simultaneous power supply needs of multiple devices.

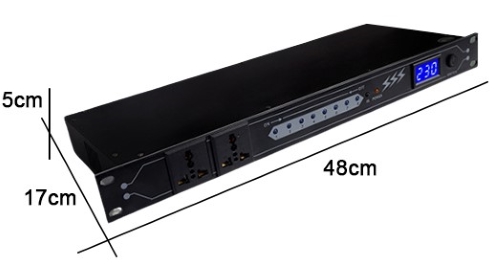

Dimension

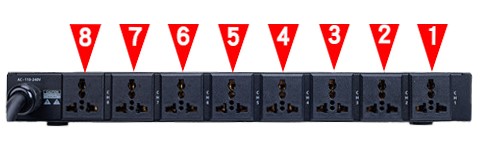

Outlet Diagram

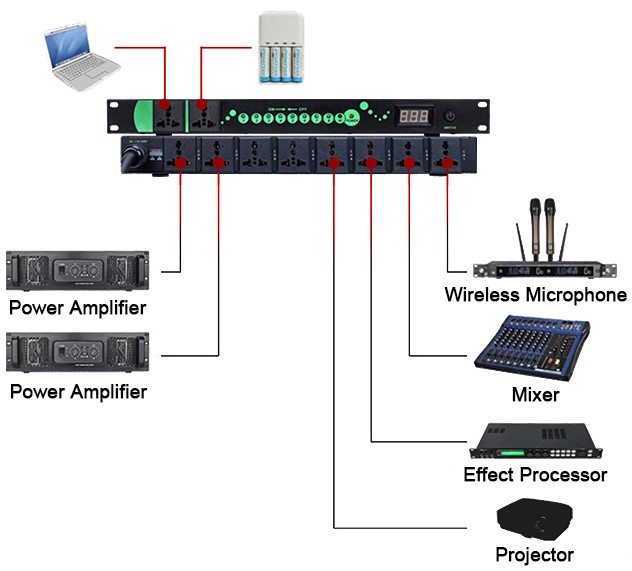

Connection Diagram

Notes: 2 auxiliary outlets are direct power channels and can be used without turning on the device. If you need to connect other high-power devices, please connect them before the power amplifier.

6 Tips for Using ATO Remote Power Sequencer

1. The power of a single-channel device shall not exceed 10A (corresponding to 2200W), and the total power of all devices shall not exceed 30A (corresponding to 6000W) to avoid overload and burnout.

2. High-power devices such as power amplifiers should be connected to the last channel, and other devices to the front channels. Use the delay function to reduce current impact.

3. The first two direct ports are only suitable for low-power devices (such as chargers, laptops). Do not connect high-power devices to them to avoid potential safety hazards.

4. When using an enclosed cabinet, an external remote control extension cable must be connected and attached to the outside of the cabinet to ensure normal reception of remote control signals; devices must be fixed in standard cabinets to prevent loosening.

5. Keep away from water sources and high-temperature environments; regularly check whether sockets and cables are loose or damaged. If heating or abnormal noise occurs, immediately cut off the power and stop using.

6. Ensure that the input voltage matches the rated voltage of the device (110V-240V), and do not connect to a voltage beyond this range.
