    Proximity Sensor, Inductive, M5, PNP

    M5 proximity sensor can detect a variety of metals, miniature size, long life, cheap price, shielded type installation, anti-interference ability, 1mm detection distance, manufacturer direct sale.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

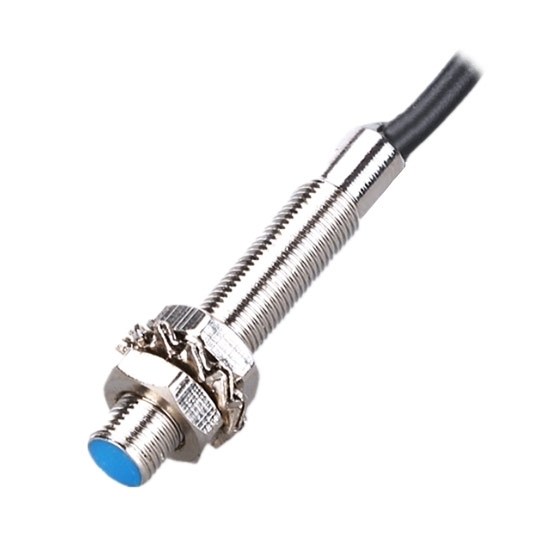

    Inductive proximity sensor with M5*1 thread, PNP type output, manufacturer direct sale.


    • Red LED checks the state of proximity sensor

    • High repeated positioning accuracy

    • High switching frequency

    • Wide voltage range

    • Antivibration, dust, water and oil prevention

    • Reverse power protection, short circuit protection, directly connecting with PLC

    • Can replace small switches and limit switches


    Model ATO-PSI-5A1ZP
    Installation type Shielded
    All the output methods DC type NPN NO
    PNP NO
    2 wire NO
    Detection range 1mm±10%
    Setting distance 0-0.7mm
    Delay distance ≤10% detection range
    Detection object Magnetic metal (the detection distance decreases when it is non-magnetic metal)
    Standard detection object Iron 5*5*1mm
    Response frequency DC: 2kHz, AC: 50Hz
    Supply voltage DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
    Withstand voltage AC1000V 50/60Hz 1min between charging part and housing
    Voltage influence Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
    Consumption current N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
    Control output N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
    Loop protection N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
    Ambient temperature & humidity Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
    Temperature influence Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
    Insulation impedance ≥50MΩ (DC500 megameter) between charging part and housing
    Material Housing: Nickel plated brass, Detection surface: ABS
    Protection class IP67
    Cable length 1.2m

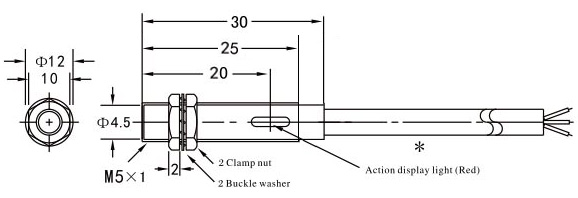

    Dimensional drawing (unit: mm):
    Proximity sensor inductive M5 dimensional drawing
    Wiring diagram:
    Proximity sensor PNP wiring
    Tips: How to install proximity sensor?
    When a proximity sensor is installed on metal, certain space should be reserved to prevent the proximity sensor malfunction that is disturbed by other metals rather than the detected object. The metal paralleled to sensing surface should be three times of  detection distance away from the sensing surface. The metal around proximity sensor axis should be away from a cylinder, whose axis is the same as proximity sensor axis and diameter is three times of the proximity sensor diameter.
    When installing two or more proximity sensors at the same time, should prevent interference between proximity sensors. If the sensors are placed face to face, the distance between two sensing surfaces in the axial direction should be five times longer than the detect distance. If the sensors are placed side by side, the distance between outer cylindrical surfaces should be three times longer than the diameter of proximity sensor. In addition, if the diameter of sensor differs in size, it should be calculated in accordance with the larger diameter of proximity sensor.

    ATO will use a proximity sensor and a digital counter to count number in the video.
