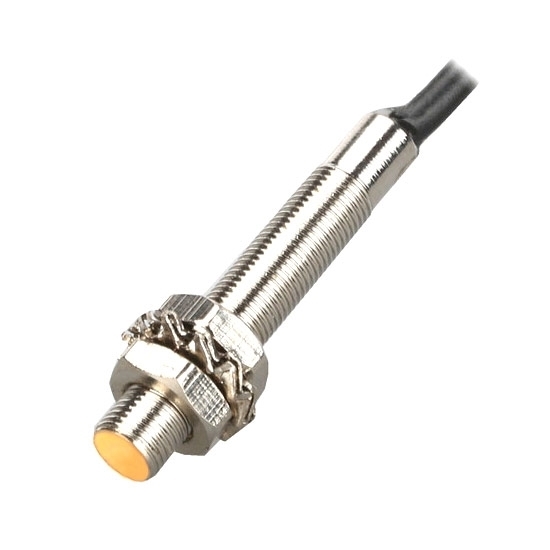

Inductive Proximity Sensor, 2 Wire, 24VDC, M6

Inductive proximity sensor with M6*1 thread, DC 2 wire output, manufacturer direct sale. The operating temperature range of this inductive proximity sensor is -30℃ to 65℃, and the storage temperature is the same.

Functions

• Red LED checks the state of proximity sensor
• High repeated positioning accuracy
• High switching frequency
• Wide voltage range
• Antivibration, dust, water and oil prevention
• Reverse power protection, short circuit protection, directly connecting with PLC
• Can replace small switches and limit switches

Specification

Dimensional drawing (unit: mm)

Wiring diagram

Tips: Application notice of proximity switch

Detected object should not touch with proximity switch to avoid damaging the proximity sensor due to friction and collision. Pulling the proximity sensor lead wire by hand will damage the proximity sensor. It is better to use rope to fix the lead wire in 10cm away from the switch. The using distance of proximity sensor should be set within two-third of the rated distance in order to prevent the sensitivity of proximity sensor from the effect of temperature and voltage. Electric lines and power lines should be as far as possible to proximity sensor lead wire. If inevitable, they should be covered with metal tubes and grounded to prevent damages to switch and malfunction. It is strictly prohibited to connect wirings on the power up state. Wirings should be connected according to the schematic diagram of wiring output circuit. It is better not to use the output line of two proximity switches to control the same coil of the same relay, otherwise it will not be able to identify the source of action, and sometimes even lead to malfunction.
