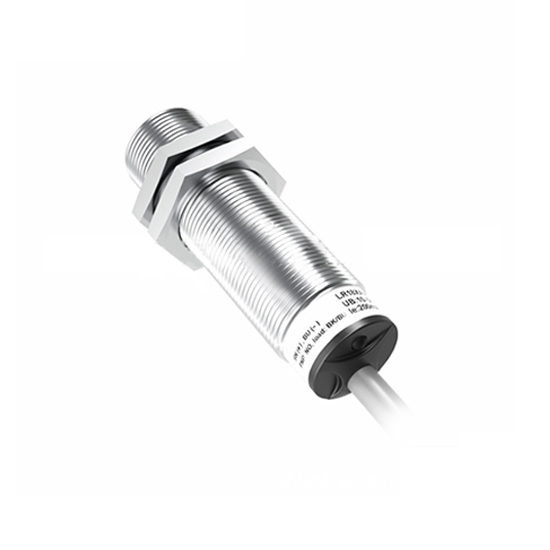

    Analog Output Proximity Sensor, Inductive, M12/ 2m PVC Cable

    $164.45
    Good price proximity sensor for sales, with withstand voltage 1000V/ AC 50/ 60Hz 60s, two installation types for selection, three output methods and two connection types can be chosen. It has advantages of light weight, small size and long service life.
    SKU: ATO-PS-LR18X
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    15-30VDC inductive proximity sensor with rated range 5mm/ 8mm, flush and non-flush two  installation types, reverse polarity protection loop protection. It is widely used in displacement measurement, thickness measurement, material differentiation and other fields.

    Specification

    Model LR18X
    Installation type Flush Non-flush
    Rated distance 5mm 8mm
    Detection range 1-5mm 1.6-8mm
    Switching frequency 200 Hz 100 Hz
    Analog signal output 0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
    Connection type M12/ 2m PVC cable
    Supply Voltage 15-30VDC
    Standard target Fe 18*18*1t Fe 24*24*1t
    Switch-point drifts ≤±10%/ Sr
    Linearity ≤±5%
    Repeat accuracy ≤±3%
    Load current ≥4.7KΩ (voltage output) ≤470Ω (current output)
    Current consumption ≤20mA
    Loop protection Reverse polarity protection
    Power indicator Yellow  LED
    Ambient temperature -25℃-70℃
    Ambient humidity 35-95% RH
    Voltage withstand 1000V/ AC 50/ 60Hz 60s
    Insulation resistance ≥50MΩ (500VDC)
    Vibration resistant Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
    Protection class IP67
    Housing material Nickel-copper alloy
    Certificates CE, UL,CCC, ROHS
    Warranty 12 months

    Dimension (unit=mm)

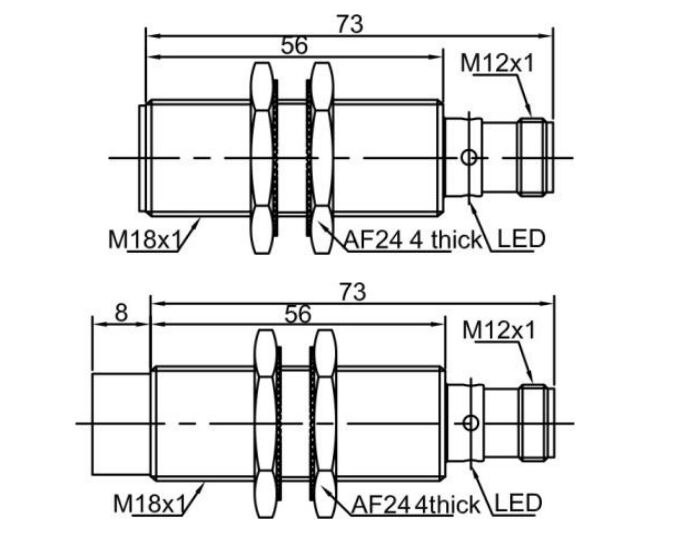

    Dimension of proximity sensor of LR18X M12

                                                      M12

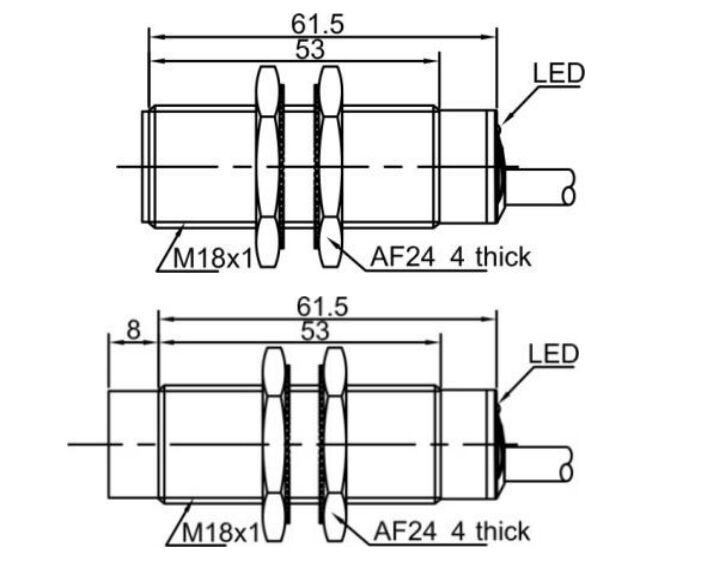

    Dimension of proximity sensor of LR18X 2m PVC cable

                                           2m PVC cable

    Wiring diagram

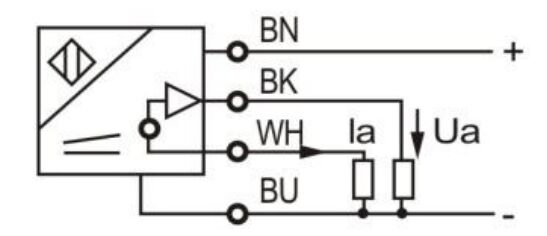

    Wiring diagram of proximity sensor of LR18X 0-10vWiring diagram of proximity sensor of LR18X voltage current output



                                  0-10V                                                                                           0-10V+ 0-20mA

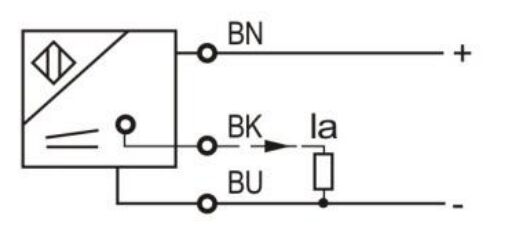

    Wiring diagram of proximity sensor of LR18X 0-20mA/ 4-20mA

                                   0-20mA/ 4-20mA

    Tips: The Working Principle of Inductive Proximity Sensor.

    Through the influence of the external magnetic field, the magnetic loss caused by the eddy current generated on the surface of the conductor is detected. A method in which an AC magnetic field is generated in the detection coil, and the impedance change caused by the eddy current generated by the metal body of the detection body is detected.

    In addition, as another method, it also includes an aluminum detection sensor that detects frequency and phase components, and an all-metal sensor that detects only the impedance change component through a working coil.

    On the surface of the detection body and the sensor, the state of the transformer occurs.
