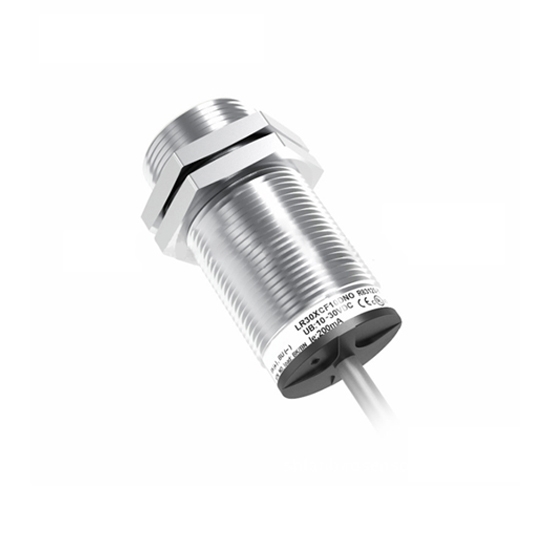

    Analog Output Proximity Sensor, Inductive, 0-10V/4-20mA

    5 out of 5 based on 1 reviews | Write a review
    Good price analog inductive proximity sensor with flush/ non-flush two installation types, supply voltage 15-30VDC, detection range 2-10mm/ 3-15mm, 0-10v/ 0-10v+0-20mA/ 0-20mA/ 4-20mA three output methods. M30 proximity sensor offers high precision,
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Analog inductive proximity sensor at affordable price, inductive type proximity sensor with rated range 10mm/ 15mm, M12 connector/ 2m PVC cable two connection types, ambient temperature -25℃-70℃. Analog inductive sensor is widely used in displacement measurement, thickness measurement, material differentiation and other fields.


    Model LR30X
    Installation type Flush Non-flush
    Rated distance 10mm 15mm
    Detection range 2-10mm 3-15mm
    Switching frequency 200 Hz 100 Hz
    Standard target Fe 30*30*1t Fe 45*45*1t
    Analog signal output 0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
    Diameter M30
    Connection type M12 connector/ 2m PVC cable
    Supply Voltage 15-30VDC
    Switch-point drifts ≤±10%/ Sr
    Linearity ≤±5%
    Repeat accuracy ≤±3%
    Load current ≥4.7KΩ (voltage output) ≤470Ω (current output)
    Current consumption ≤20mA
    Loop protection Reverse polarity protection
    Power indicator Yellow  LED
    Ambient temperature -25℃-70℃
    Ambient humidity 35-95% RH
    Voltage withstand 1000V/ AC 50/ 60Hz 60s
    Insulation resistance ≥50MΩ (500VDC)
    Vibration resistant Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
    Protection class IP67
    Housing material Nickel-copper alloy
    Certificates CE, UL,CCC, ROHS
    Warranty 12 months

    Dimension (unit=mm)

    Dimension of proximity sensor of LR30X M12

    Dimension of proximity sensor of LR30X 2m PVC cable

    Wiring diagram

    Wiring diagram of proximity sensor of LR30X 0-10vWiring diagram of proximity sensor of LR30X voltage current output


                                  0-10V                                                                                           0-10V+ 0-20mA

    Wiring diagram of proximity sensor of LR30X 0-20mA/ 4-20mA

                                   0-20mA/ 4-20mA

    Tips: The Features of Proximity Sensor.

    1. Since the detection can be performed in a non-contact manner, the detection object will not be worn or damaged.

    2. Since the non-contact output method is adopted, the life is extended (except for the magnetic type). The semiconductor output is adopted, which has no effect on the life of the contact.

    3. Different from the light detection method, it is suitable for use in water and oil environments, and it is hardly affected by the stains of the detection object, oil, and water. In addition, it also includes products with Teflon shell type and good chemical resistance.

    4. Compared with contact switches, it can achieve high-speed response.
