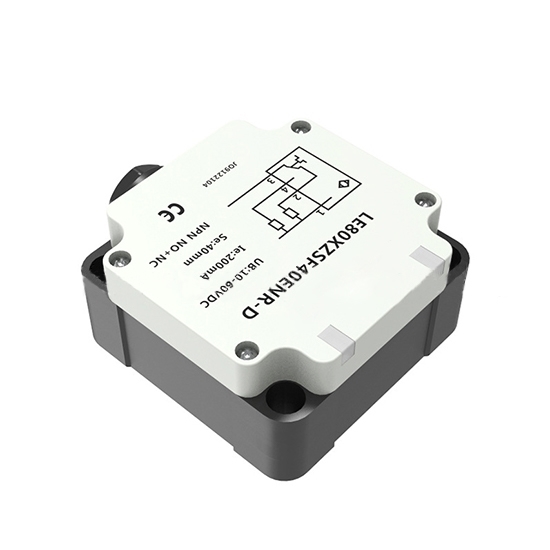

    Analog Output Proximity Sensor, Inductive, 0-10V/0-20mA

    5 out of 5 based on 1 reviews | Write a review
    $190.52
    Proximity sensor with rated distance 40mm/ 50mm, which has M12/ terminal connection two connection types to choose, detection range 8-40mm/ 10-50mm. It is widely used in displacement measurement, thickness measurement, material differentiation and other fields.
    SKU: ATO-PS-LR80XZ
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Factory price inductive proximity sensor has flush/ non-flush two installation types for selection, with  voltage/ current/ voltage+current three output methods can be chosen. It has advantages of simple structure, high sensitivity, low output impedance, strong anti-interference ability and high measurement accuracy.

    Specification

    Model LE80XZ
    Installation type Flush Non-flush
    Rated distance 40mm 50mm
    Detection range 8-40mm 10-50mm
    Switching frequency 80Hz 40Hz
    Standard target Fe 1200*120*1t Fe 150*150*1t
    Analog signal output 0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
    Connection type M12/ Terminal connection
    Supply Voltage 15-30VDC
    Switch-point drifts ≤±10%/ Sr
    Linearity ≤±5%
    Repeat accuracy ≤±3%
    Load current ≥4.7KΩ (voltage output) ≤470Ω (current output)
    Current consumption ≤20mA
    Loop protection Reverse polarity protection
    Power indicator Yellow  LED
    Ambient temperature -25℃-70℃
    Ambient humidity 35-95% RH
    Voltage withstand 1000V/ AC 50/ 60Hz 60s
    Insulation resistance ≥50MΩ (500VDC)
    Vibration resistant Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
    Protection class IP67
    Housing material PBT
    Certificates CE, UL,CCC, ROHS
    Warranty 12 months

    Dimension (unit=mm)

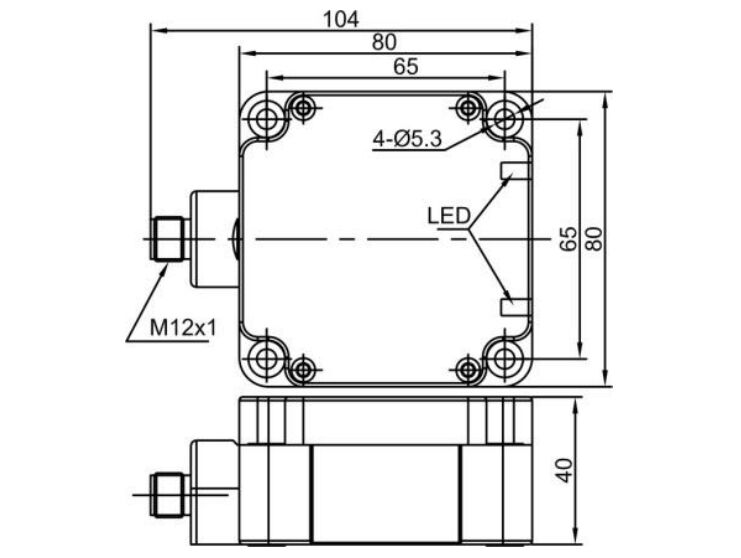

    Dimension of proximity sensor of LE80XZ M12

                                                             M12

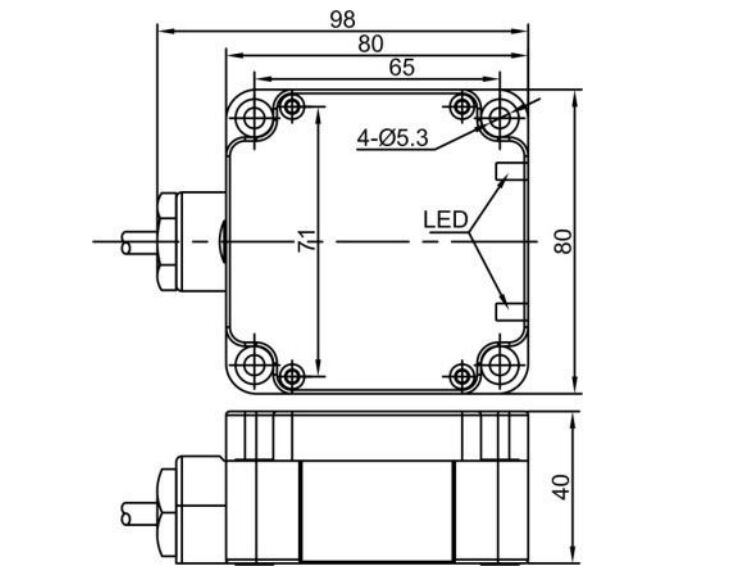

    Dimension of proximity sensor of LE80XZ terminal connection

                                                   Teminal Connection

    Wiring diagram

    Wiring diagram of proximity sensor of LE80XZ 0-10vWiring diagram of proximity sensor of LE80XZ voltage current output

                                  0-10V                                                                                           0-10V+ 0-20mA

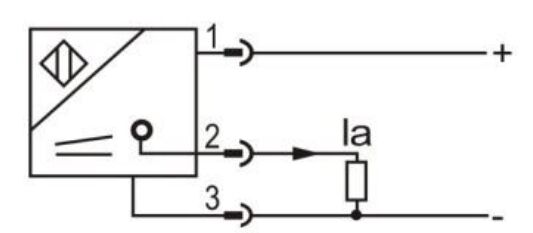

    Wiring diagram of proximity sensor of LE80XZ 0-20mA/ 4-20mA

                                   0-20mA/ 4-20mA

    Tips: The Function of Proximity Sensor.

    1. Inspection distance
    Detect the stop, start, and pass positions of elevators and lifting equipment; detect the position of the vehicle to prevent two objects from colliding; detect the set position of the working machine, the limit position of the moving machine or component; detect the stop position of the rotating body, the valve On or off position.

    2. Size control
    Size control device for sheet metal punching and shearing; automatic selection and identification of the length of metal parts; detection of the height of stacks during automatic loading and unloading; detection of the length, width, height and volume of objects.

    3. Whether the detection object exists
    Detect whether there are product packaging boxes on the production packaging line; detect whether there are product parts.

    4. Rotation speed and speed control
    Control the speed of the conveyor belt; control the speed of the rotating machinery; control the speed and the number of revolutions together with various pulse generators.
