    Proximity Sensor, Capacitive, M24, 2 Wire, 120V

    $39.34
    M24 proximity sensor can detect nonmetal (or metal), plastic, water, liquid level and powder height, with small size, long life, low cost, 8mm detection distance, shielded type installation, anti-interference ability, manufacturer direct sale.
    SKU: ATO-PSC-24A8J
    *
    Free shipping
    Delivery date: 6-12 days

    Capacitive proximity sensor with M24*1.5 thread, AC 2 wire output, manufacturer direct sale.

    Functions:

    • Red LED checks the state of proximity sensor

    • High repeated positioning accuracy

    • High switching frequency

    • Wide voltage range

    • Antivibration, dust, water and oil prevention

    • Reverse power protection, short circuit protection, directly connecting with PLC

    Specification:

    Model ATO-PSC-24A8J
    Installation type Shielded Unshielded
    All the output methods DC type NPN NO NO
    NC NC
    PNP NO NO
    NC NC
    AC type 2 wire NO NO
    NC NC
    Detection range 8mm±10% 15mm±10%
    Setting distance 0-7mm 0-13mm
    Delay distance ≤10% detection range
    Detection object Any dielectric substance
    Standard detection object SPCC iron 50*50*1mm
    Response frequency DC: 0.5kHz, AC: 25Hz
    Supply voltage DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (36-250V) 50/60Hz
    Withstand voltage AC1000V 50/60Hz 1min between charging part and housing
    Voltage influence Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
    Consumption current N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
    Control output N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
    Loop protection N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
    Ambient temperature & humidity Operation temperature/storage temperature: -30~65℃ (no freeze, no drew); Operation humidity/storage humidity: 35~95%RH
    Temperature influence Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
    Insulation impedance ≥50MΩ (DC500 megameter) between charging part and housing
    Material Housing: Nickel plated brass, Detection surface: ABS
    Protection class IP67
    Cable length 1.2m

    Dimensional drawing:

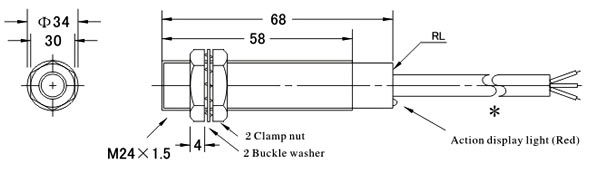

    Proximity sensor capacitive M24 dimensional drawing
    Wiring diagram:
    Proximity sensor AC 2 wire wiring

    Tips: Proximity sensor application

    1. Detect distance: Detect stop, starting and moving position of elevators and lifting appliance. Detect vehicle location to prevent the collision of two objects. Detect the setting position of working machine and the limiting position of removable machines or components. Detect the stop position of revolution, valve opening and closing position. Detect the movement position of air cylinder or hydraulic cylinder piston.
    2. Size control: Metal plate punching and shearing size control device. Automatic selection and identification of metal piece length. Automatically loaded stacking height. Detect length, width, height and volume of detection objects.
    3. Detect the existence of objects: Detect product packaging boxes on the production line. Detect whether there are product parts.
    4. Rotational speed and speed control: Control the speed of conveyor belt, rotating machinery; control rotation speed and number by a variety of pulse generators.
    5. Counting and control: Detect the number of products on the production line, revolution measurement of high-speed rotation axis or disk and the number of components.
    6. Anomaly detection: Detect bottle caps; specifications between qualified and unqualified products; metal and non-metallic parts; product labels; crane danger zone alarm; escalator automatic start-stop system.
    7. Metrological control: Automatic measurement of products or parts. Detect the indicator range of meters and instrument to control number and flow. Detect the buoy to control the side height and flow. Detect the iron buoy in stainless steel bucket. Control of upper or lower limit of instrument measuring range. Flow control and horizontal control.
    8. Identify the object according to the code.
    9. Information transmission: In the production line (50-100 meters), data transmission of all sensors connected with ASI (bus).
