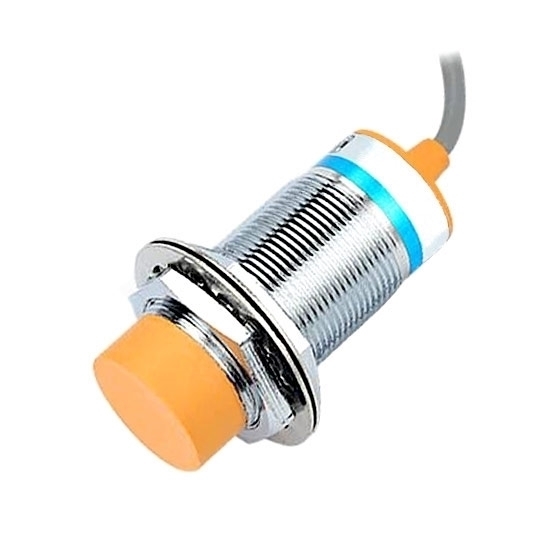

    Proximity Sensor, Capacitive, M30, 2 Wire, 110V

    5 out of 5 based on 1 reviews | Write a review
    M30 proximity sensor can detect nonmetal (or metal), plastic, water, liquid level and powder height, with small size, long life, low cost, unshielded type installation, anti-interference ability, 20mm detection distance, supply voltage AC 110V, manufacturer direct sale.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Capacitive proximity sensor with M30*1.5 thread, AC 2 wire output, manufacturer direct sale.


    • Red LED checks the state of proximity sensor

    • High repeated positioning accuracy

    • High switching frequency

    • Wide voltage range

    • Antivibration, dust, water and oil prevention

    • Reverse power protection, short circuit protection, directly connecting with PLC


    Model ATO-PSC-30AHJ
    Installation type Unshielded Shielded
    All the output methods DC type NPN NO NO
    NC NC
    NC NC
    AC type 2 wire NO NO
    NC NC
    Detection range 20mm±10% 10mm±10%
    Setting distance 0-18mm 0-8mm
    Delay distance ≤10% detection range
    Detection object Any dielectric substance
    Standard detection object SPCC iron 50*50*1mm
    Response frequency DC: 0.5kHz, AC: 25Hz
    Supply voltage DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
    Withstand voltage AC1000V 50/60Hz 1min between charging part and housing
    Voltage influence Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
    Consumption current N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
    Control output N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
    Loop protection N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
    Ambient temperature & humidity Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
    Temperature influence Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
    Insulation impedance ≥50MΩ (DC500 megameter) between charging part and housing
    Material Housing: Nickel plated brass, Detection surface: ABS
    Protection class IP67
    Cable length 1.2m

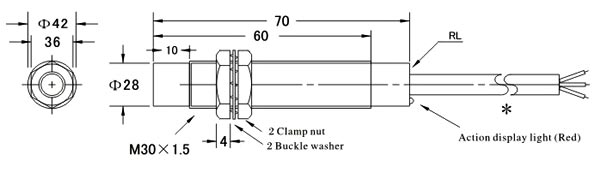

    Dimensional drawing (unit: mm):
    Proximity sensor capacitive M30 dimensional drawing
    Wiring diagram:
    Proximity sensor AC 2-wire wiring

    Tips: Parallel and series connection of proximity sensor
    Parallel connection: OR connection, NPN and PNP type can't be used in combination. Parallel proximity sensors are in OR connection. The load can be driven once any one of proximity sensors is operating. The number of proximity sensor depends on the sum of leakage current. As long as it does not affect the load operation, more proximity sensors can be connected.
    Series connection: When proximity sensors are in AND connection, the load can be driven by all the proximity sensors operation. The number of proximity sensors depends on the sum of their saturation voltages. As long as it does not affect the voltage of power supply, more proximity sensors can be connected. The response frequency of proximity sensor is the accumulation of initial reset of each proximity sensor.
