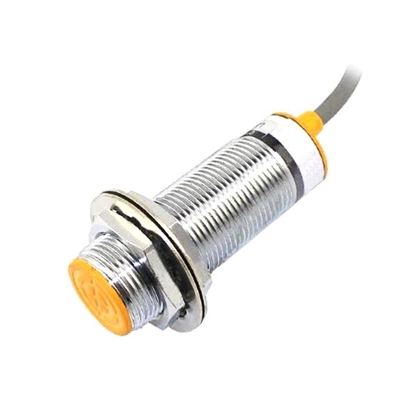

Proximity Sensor, Capacitive, M12, PNP

5 out of 5 based on 1 reviews | Write a review

$39.99

M12 proximity sensor can detect nonmetal (or metal), plastic, water, liquid level and powder height, with small size, long life, cheap price, unshielded type installation, anti-interference ability, 5mm detection distance, manufacturer direct sale.

SKU: ATO-PROS-C12

Specification Selection *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview

Capacitive proximity sensor with M12*1 thread, PNP type output, manufacturer direct sale.

Functions:

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC

Specification:

Model			ATO-PSC-12AAZ
Installation type			Unshielded	Shielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
		PNP	NO	NO
			NC	NC
Detection range			5mm±10%	2mm±10%
Setting distance			0-4mm	0-1.7mm
Delay distance			≤10% detection range
Detection object			Any dielectric substance
Standard detection object			SPCC iron 50501mm
Response frequency			DC: 0.5kHz, AC: 25Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm):
Proximity sensor capacitive M12 dimensional drawing
Wiring diagram:
Proximity sensor PNP wiring

Tips: Problems of proximity sensor's indicator light
Indicator light has a signal prompt without signal output, or signal light is on without signal changes, or indicator light keeps blinking. All indicate that there is an abnormal condition or bad phenomenon. The reasons are as follows:

Sensor and device wiring error, working voltage error, equipment short circuit and others lead to damages and breakdown caused by the burning of circuit inside sensor
Poor connection or unstable short circuit that occurs in the device circuit makes non-destructive damages inside the sensor.
There is no protection function in sensor itself. Because connection error or short circuit directly makes the sensor not available.
