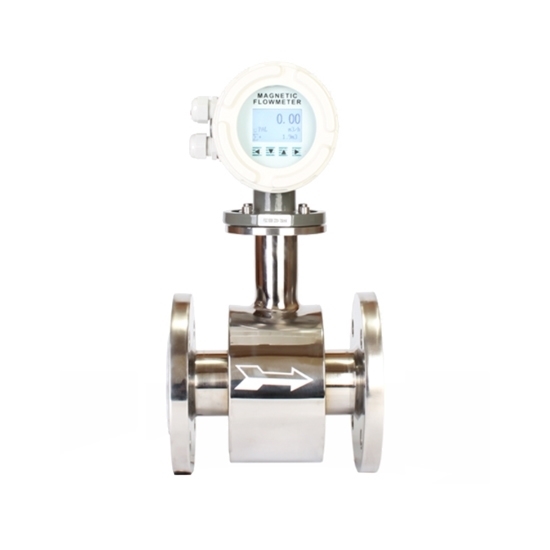

Stainless Steel Sanitary Flow Meter for Milk/Beer, DN15-DN100

5 out of 5 based on 1 reviews | Write a review
$835.99
Buy a high-quality stainless steel sanitary flow meter for milk or beer, with a PTFE lining that is resistant to acid, alkali, salt corrosion, and high temperatures. Multiple nominal diameters are available, DN15-DN100. Available in flange and clamp mounting. Sanitary flow meter is used in dairy, brewing, beverage, pharmaceutical, and cosmetics, for measuring hygienic liquids like milk and beer.
*
*
SKU: ATO-FLOW-SS
30-day Returns
Free Shipping
Delivery date: 6-12 days

Stainless steel sanitary flow meter for milk or beer, with a PTFE lining that handles acid, alkali, salt, and high temps 70℃. Comes in DN15 to DN100 sizes, with flange or clamp connections. Perfect for milk, beer, and other clean liquids in dairy, brewing, beverage, pharma, and cosmetics industries.

Specification

Nominal Diameter DN15/DN25/DN32/DN40/DN50/DN65/DN80/DN100
Maximum Flow Rate 15m/s
Accuracy ±0.3% of display value (flow rate ≥1m/s); ±3mm/s (flow rate <1m/s)
Fluid Conductivity >5uS/cm
Nominal Pressure 1.6MPa
Ambient Temperature -10℃~60℃
Lining Material Polytetrafluoroethylene(DN15-DN50), Polychloroprene rubber(DN65-DN100)
Maximum Fluid Temperature 70℃
Connection Flange Material Carbon Steel
Grounding Flange Material Stainless Steel
Enclosure Protection IP65
Installation Flange/Clamp (optional)
Display Color White/Black (random)

Note: Cannot measure liquids with low conductivity such as pure water and oil. Matching flanges, bolts, and gaskets need to be purchased locally.

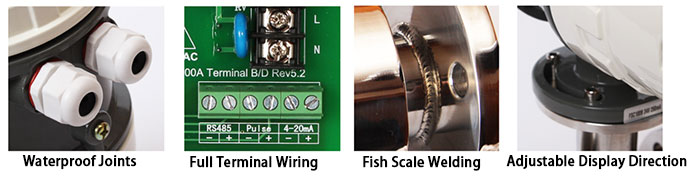

Feature

Sanitary flow meter feature

  • Hygienic Design: Specially designed for sanitary applications like milk, beer, and other beverages, with smooth surfaces and easy-to-clean construction.
  • 304 Stainless Steel Body: Made from high-quality 304 stainless steel, offering excellent corrosion resistance, oxidation resistance, and no lead or rust. It is non-stick, easy to clean, and ideal for food-grade environments.
  • PTFE Liner: Equipped with a polytetrafluoroethylene (PTFE) liner that is stable, resistant to aging, acids, alkalis, salt corrosion, and high temperatures. It ensures minimal pressure loss and excellent media flow characteristics.
  • Connection Options: Sanitary flow meter supports flange or clamp (tri-clamp) connections for easy integration into sanitary pipeline systems.
  • High Accuracy: Stainless steel milk flow meter provides measurement accuracy up to ±0.5%, suitable for precise flow control in dairy, brewing, and other food industries.

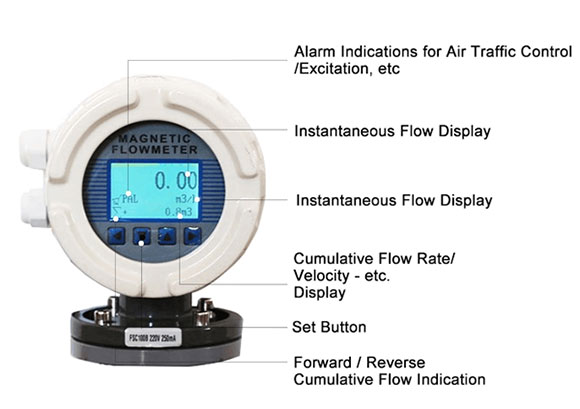

Display Description

Sanitary flow meter detail

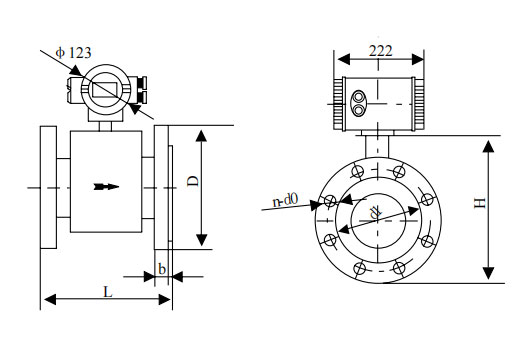

Dimension (unit: mm)

Sanitary flow meter size

Nominal Diameter DN D d1 d0 n b L H
15 95 65 14 4 14 200 220
20 105 75 14 4 16 200 220
25 110 85 14 4 16 200 230
32 140 100 18 4 18 200 235
40 150 110 18 4 18 200 245
50 165 125 18 4 20 200 250
65 185 145 18 4 20 200 270
80 200 160 18 8 20 200 285
100 220 180 18 8 22 250 300

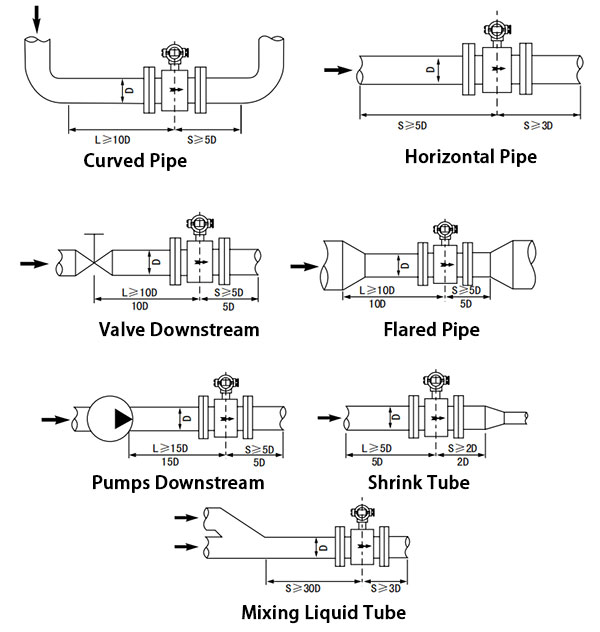

Length Requirements for Front and Rear Straight Pipe Sections

Sanitary flow meter mounting site

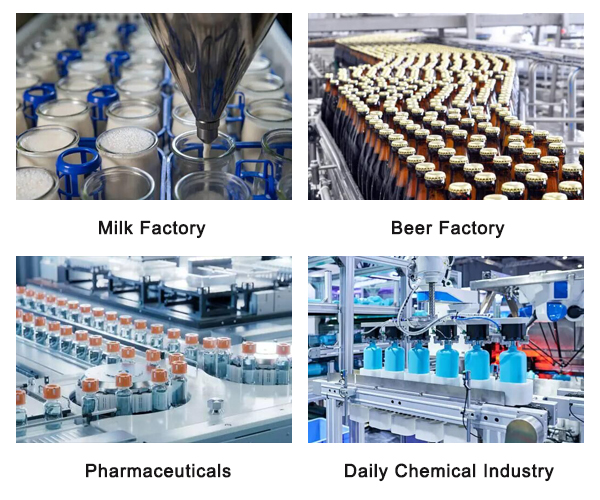

Application

Sanitary flow meter application

Tips: What is a sanitary flow meter and why is it used for milk or beer?

A sanitary flow meter is a specialized flow measuring device designed for hygienic applications, such as in the dairy and brewing industries. It is made with 304 or 316L stainless steel and food-grade liners (like PTFE) to ensure corrosion resistance, easy cleaning, and compliance with food safety standards. For milk and beer production, it helps monitor and control flow during pasteurization, fermentation, filtration, and filling, ensuring accurate batching and quality consistency.
