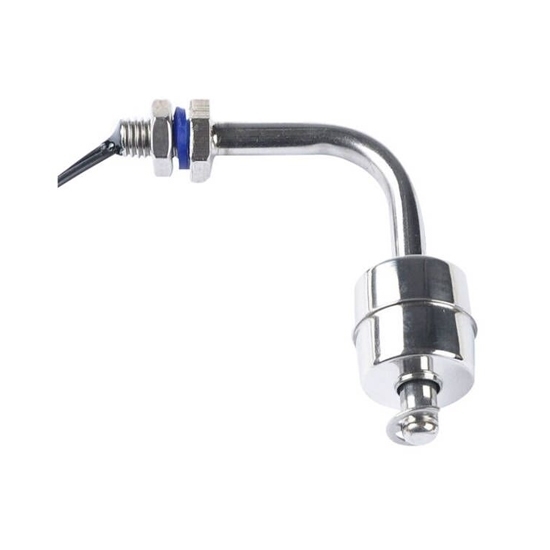

    Side Mounted Float Switch, Stainless Steel

    $49.11
    Reliable side-mounted float switch is available with 304 tainless steel, 100V/220V AC or DC, 10VA/50VA power, threaded connection, suitable for liquid levels in water machines, water heaters, solar energy, air conditioners, humidifiers, bathroom equipment, oil tanks, water towers, and chemical industries.
    *
    SKU: ATO-FS-7810
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price stainless steel float switch is a side-mounted liquid level sensor, 100V/220V AC or DC, 10VA/50VA power, threaded connection, widely used in automobiles, industrial equipment, agricultural equipment and household appliances.

    Specifications

    Model ATO-ESC7810-1A1 ATO-ESC7810-2A1
    Maximum Power 10VA 50VA
    Maximum Switching Voltage 100V AC or DC 220V AC or DC
    Maximum Switching Current 0.5A 1.5A
    Maximum Breakdown Voltage 110V AC or DC 300V AC or DC
    Maximum Load Current 1.0A 3.0A
    Maximum Contactor Resistance 100mΩ 100mΩ
    Connection Method Thread (M10*1.5)
    Material 304 Stainless Steel
    Ambient and Liquid Temperature Range -30℃~125℃

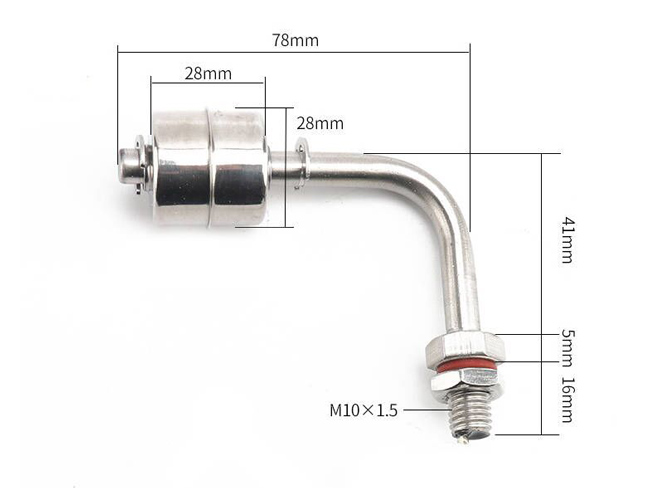

    Dimension (Unit: mm)

    Side mount float switch dimension

    Applications

    Float switch applications

    Tips: Why choose a stainless steel float switch?

    Stainless steel float switches offer numerous advantages, making them a popular choice in various industrial and residential applications. One key benefit is their exceptional durability and resistance to corrosion. Stainless steel is known for its robustness, making these float switches ideal for harsh environments where exposure to moisture, chemicals, or extreme temperatures is common.

    The corrosion-resistant nature of stainless steel ensures a longer lifespan for the float switch, reducing maintenance costs and enhancing overall reliability. Additionally, stainless steel float switches are suitable for use in liquids with different properties, including corrosive substances, without compromising performance.

    Another noteworthy feature is their versatility. Stainless steel float switches can be used in a wide range of applications, from monitoring liquid levels in industrial tanks to controlling pumps in sewage systems. The material's adaptability makes these float switches compatible with various liquids, providing flexibility in application.

    In summary, the choice of a stainless steel float switch is justified by its durability, corrosion resistance, and versatility, making it a reliable and long-lasting solution for liquid level sensing and control in diverse settings.
