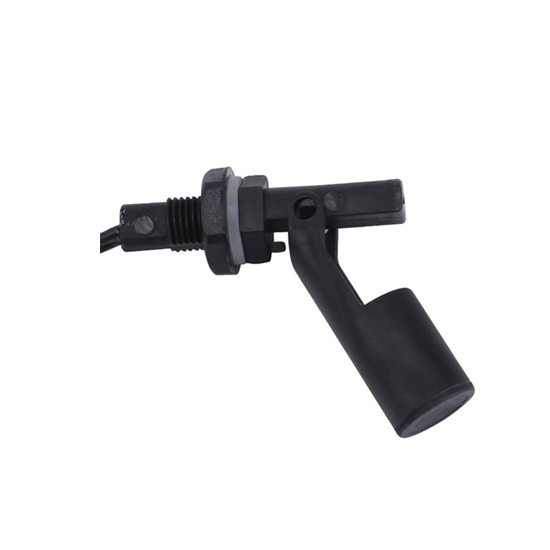

    Side Mount Float Switch, PP, 110V/220V

    110V/220V DC side mounted float switch level sensor for sale online. It is made of corrosion-resistant PP material, optional 10W or 30W power, 1/2" NPT threaded connection, low price, high quality, ideal for measuring container liquid levels.
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cheap float switch is equipped with PP material, 110V/220V DC voltage, 10W or 30W power, and 1/2" NPT threaded connection. It is a high-quality liquid level sensor, suitable for water dispensers, water heaters, solar energy, and air conditioners, humidifier.


    Model ATO-EPC3-1A1 ATO-EPC3-2A1
    Max Contact Rating  10W 30W
    Max Switching Voltage 110V DC 220V DC
    Max Switching Current 0.5A 1.5A
    Max Breakdown Voltage 220V DC 300V DC
    Max Contact Resistance 100mΩ 100mΩ
    Temperature Rating -10℃~+85℃ -10~℃+85℃
    Installation Thread 1/2" NPT Thread 1/2" NPT
    Float Ball Material PP PP
    Float Body Material  PP PP
    Applicable Density 0.65x103kg/m3 0.65x103kg/m3

    Dimension (Unit: mm)

    Side mount float switch dimension


    Float switch applications

    Tips: What is a side mount float switch?

    ATO side-mount float switch is a type of liquid level sensor designed to monitor and control the level of a substance in a container, such as a tank or reservoir. Unlike top-mount float switches that are installed vertically from the top of the container, side-mount float switches are affixed horizontally to the side of the tank.

    Side-mount float switches are versatile and find applications in various industries, including wastewater management, industrial processes, and water treatment systems. They are often used for pump control, alarms, and other automated processes to ensure proper liquid levels are maintained. The side-mount configuration allows for easy installation in tanks where top access may be limited, providing a practical solution for level sensing and control in diverse liquid storage and processing scenarios.
